PSG200 CNC Plasma Cutting Table (2m Wide, Hypertherm MAX200) | Jinfeng, Ningbo, China

PSG200 Plasma Cutting Machine

Jinfeng (Ningbo Jinfeng Welding & Cutting Machinery Manufacture): Cixi, Ningbo, China

Compact CNC plasma cutting machine with an integral water table, a Hypertherm MAX200 plasma source and MicroEDGE Pro CNC, and Panasonic servo drives, for sheet and small-part cutting in steel, stainless steel, and aluminium.

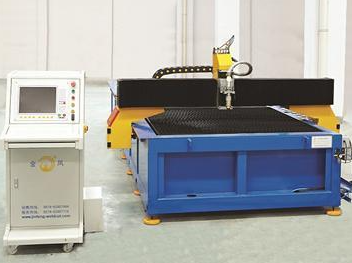

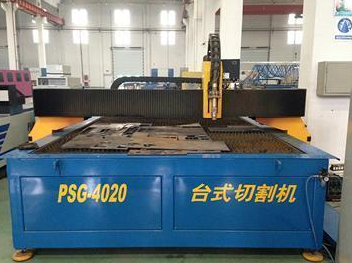

The PSG200 is a small CNC plasma cutting machine for sheet metal and small parts. It is built as a gantry over an integral cutting table, which Jinfeng says gives more stable cutting and better precision than a separate table. The machine has a 2,000mm gantry specification and a 4,000mm rail.

The plasma system uses a Hypertherm plasma source (listed as MAX200PRO) and a Hypertherm MicroEDGE Pro CNC, with automatic torch height control from Jinfeng's own arc-voltage sensor. Jinfeng says the plasma arc gives concentrated heat and a high temperature, giving faster cutting and less deformation, and that it also cuts stainless steel and aluminium. A lower power plasma source is available as an option.

The table has a shallow water tank that absorbs cutting dust, making the machine cleaner, and an additional dust extraction system can be added on request. Drives use Panasonic servo motors and drive systems with Shimpo planetary gearboxes.

Why Choose a Compact CNC Plasma Table?

Small and medium shops cutting sheet and small parts don't need a large gantry. A table-type plasma cutter with a branded plasma source and CNC is quick to set up, and the water table controls dust and fume.

• Recognised plasma system. Hypertherm plasma source and CNC.
• Integral table. Stable cutting platform built with the machine.
• Clean cutting. A shallow water tank captures cutting dust, with extraction optional.
• Servo drive. Dual drive with Panasonic servos.
• Nesting included. FastCAM auto nesting and programming software.

Machine Specifications

Base machine

• Machine specification: 2,000mm
• Rail length: 4,000mm
• Drive mode: dual drive

Plasma cutting system

• Plasma power source: 1 unit, Hypertherm (USA), listed as MAX200PRO
• Plasma cutting torch: 1 set
• Torch carriage: 1 set
• Height control: JF plasma arc-voltage torch height control (automatic)
• Optional: lower-power plasma source (see notes)

CNC and electrical

• CNC system: Hypertherm MicroEDGE Pro (or a Chinese CNC)
• Nesting software: FastCAM auto nesting and programming (Australia)
• PLC: Delta (Taiwan)
• Main electrical components: Schneider

Drives

• Transverse and longitudinal drive: Panasonic servo motors and servo drive system
• Transverse and longitudinal gearboxes: Shimpo planetary

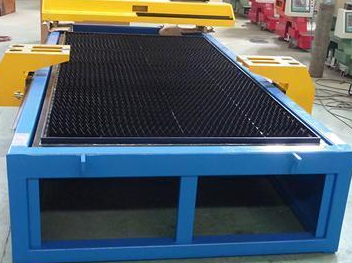

Table: integral cutting table with a shallow water tank; extra dust removal optional

Condition Available: New

Key Features

• Hypertherm plasma source and MicroEDGE Pro CNC
• Integral cutting table for stability
• Shallow water tank for dust absorption
• Dual drive with Panasonic servo motors and Shimpo gearboxes
• Automatic torch height control
• FastCAM nesting software included

Applications

• Cutting sheet metal parts and small metal parts
• Stainless steel and aluminium as well as carbon steel
• General fabrication and workshop cutting

Who This Machine Is For

• Small and medium fabrication shops
• Workshops cutting sheet and small parts in steel, stainless, and aluminium
• Buyers who want a well-known plasma system in a compact machine

Frequently Asked Questions

What can it cut?
Sheet metal parts and small metal parts, in steel, stainless steel, and aluminium.

What plasma system does it use?
A Hypertherm plasma source (listed as MAX200PRO) and a Hypertherm MicroEDGE Pro CNC.

How does it handle dust?
The table has a shallow water tank that absorbs cutting dust, and an extra dust removal system can be added.

What software comes with it?
FastCAM automatic nesting and programming software.

How big is the cutting area?
The page lists a 2,000mm machine specification and a 4,000mm rail. Please confirm the usable cutting area with the supplier.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This machine is available new.
