QFMG Slip-On Flange Fitting-Up Machine

Qizhi (Nanjing Qizhi Engineering & Equipment): Nanjing, China

Flange fit-up machine with a cross-type chuck that clamps and positions slip-on and weld neck flanges on pipe from DN50 to DN1200, with ±45° chuck rotation and a rail to suit any pipe length.

Overview

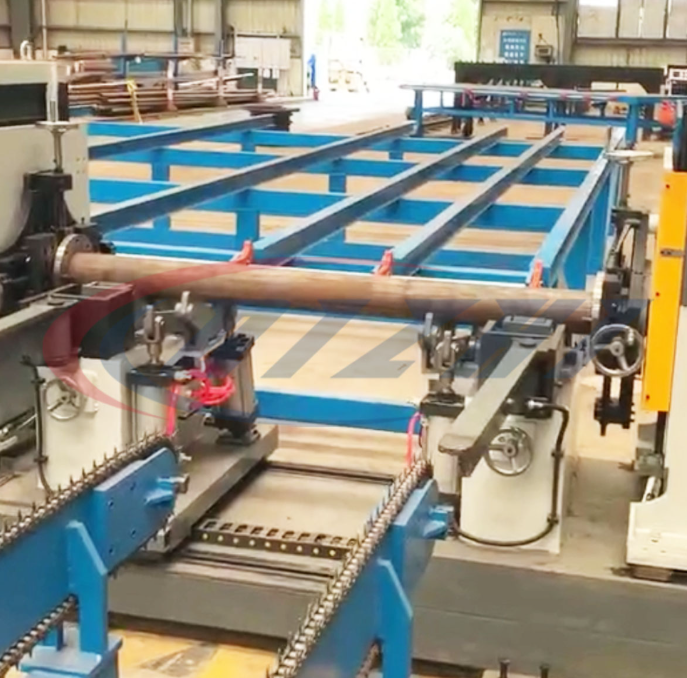

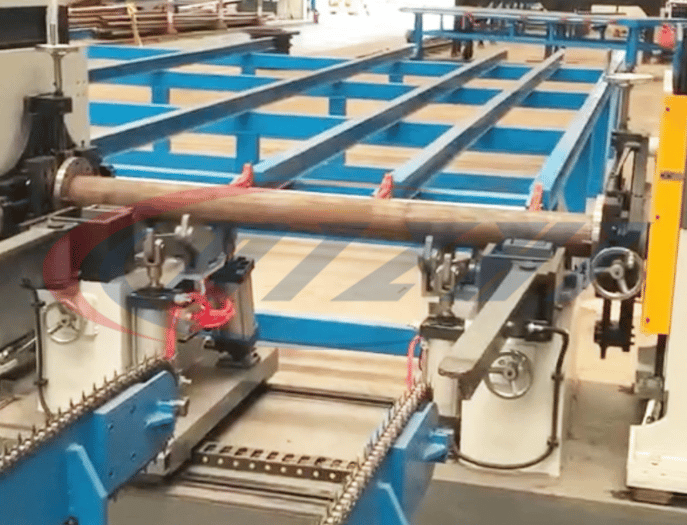

The QFMG series is a fitting-up machine for attaching flanges to pipe, used in pipe spool fabrication. It fits up both slip-on flanges and WNF flanges (weld neck flanges) to the pipe end so they can be tack welded before final welding. It also helps control pipe misalignment during fit-up.

A specially designed cross-type chuck clamps the flange and adjusts its position. The chuck lifts (stroke depending on the model) and can rotate ±45° to handle special fit-up requirements. The whole machine moves along a rail, which can be made to suit the pipe length, so the same machine can serve different pipe lengths. Movement along the rail can be manual or motorised.

There are five models covering pipe from DN50 up to DN1200: the QFMG-16, 24, 32, 40, and 48.

Why Choose a Dedicated Flange Fit-Up Machine?

Flanges have to be square to the pipe axis and correctly positioned around it, and errors show up later as flanges that won't bolt up. Fitting them by hand is slow and depends on skilled fitters. A dedicated machine holds the alignment mechanically.

• Handles both flange types. Slip-on and WNF flanges.
• Accurate positioning. The cross-type chuck clamps the flange and lets its position be adjusted.
• Special angles. ±45° chuck rotation for unusual fit-up requirements.
• Any pipe length. The machine travels along a rail that can be sized to the pipe.
• Five sizes. Matched closely to pipe diameter, from DN50 to DN1200.

Machine Specifications

• QFMG-16: suitable for DN50 to DN400 pipe; chuck lifting stroke up to 200mm
• QFMG-24: suitable for DN100 to DN600 pipe; chuck lifting stroke up to 300mm
• QFMG-32: suitable for DN100 to DN800 pipe; chuck lifting stroke up to 400mm
• QFMG-40: suitable for DN200 to DN1000 pipe; chuck lifting stroke up to 400mm
• QFMG-48: suitable for DN300 to DN1200 pipe; chuck lifting stroke up to 500mm

Common to all models

• Chuck rotating angle: ±45°
• Chuck type: cross-type chuck for clamping and positioning the flange
• Machine movement: manual or motorised, along a rail
• Rail length: designed to suit the pipe length

Condition Available: New

Key Features

• Fits up slip-on and WNF flanges to pipe
• Cross-type chuck clamps the flange and adjusts its position
• Chuck rotates ±45°
• Moves along a rail to suit different pipe lengths
• Manual or motorised movement
• Five sizes from DN50 to DN1200
• Helps control pipe misalignment and prepare for tack welding

Applications

• Fitting flanges to pipe in spool fabrication
• Tack welding pipe and flange assemblies
• Pipework fabrication for process, power, and marine industries

Who This Machine Is For

• Pipe spool fabrication shops
• Petrochemical, power, and shipbuilding pipework fabricators
• Fabricators looking to speed up and standardise flange fit-up

Frequently Asked Questions

What does this machine do?
It positions a flange on the end of a pipe and holds it in alignment for tack welding.

What flange types does it handle?
Slip-on flanges and WNF flanges.

What pipe sizes are available?
Five models: DN50 to 400, DN100 to 600, DN100 to 800, DN200 to 1000, and DN300 to 1200.

How is the flange held?
By a specially designed cross-type chuck that clamps the flange and adjusts its position. The chuck can rotate ±45°.

How long a pipe can it handle?
The machine runs on a rail, and the rail length can be designed to suit the pipe length.

Is it manual or powered?
Movement along the rail can be manual or motorised.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This machine is available new, built to order.
