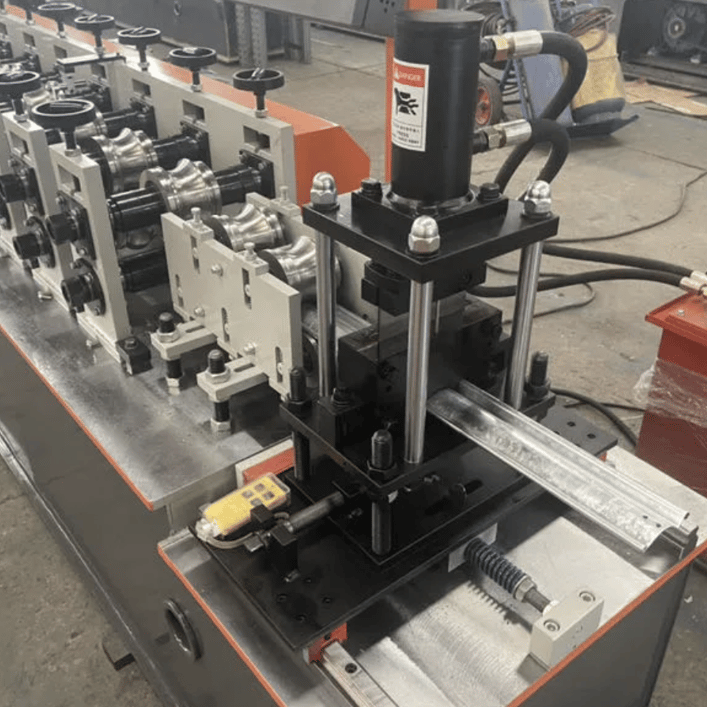

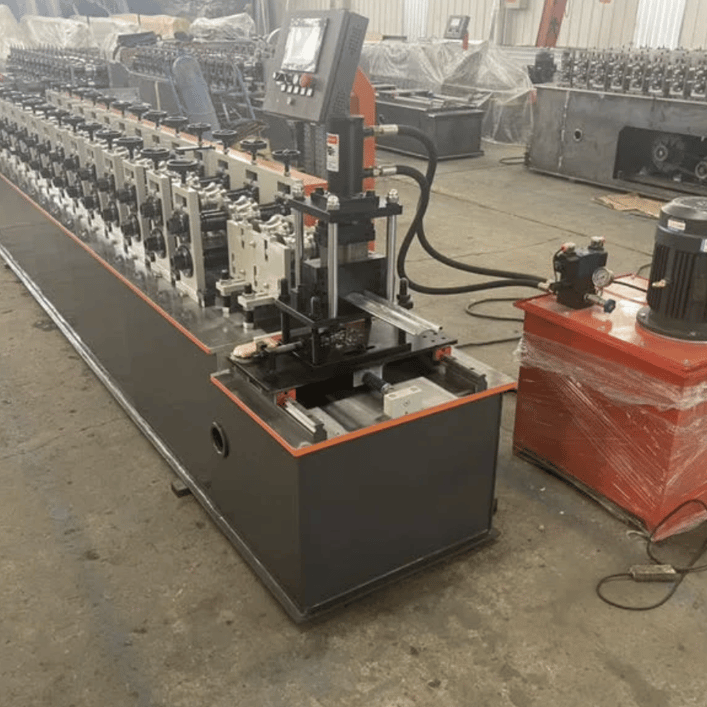

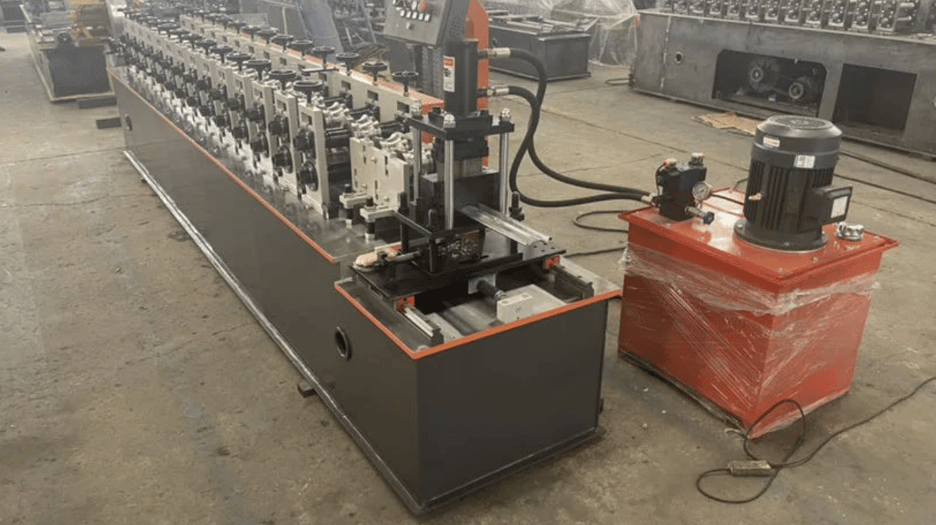

Roller Shutter Door Roll Forming Machine in Mexico
- Condition
- New
- Supplier
- Roll Forming Machines Mexico
- Country
- Mexico
- Listing ID
- 9555
Request a Quote
To express an interest in this machine please submit the form below.
| Coil required | Material | PPGI GI AL |
| Width | 160mm | |
| Thickness | 0.3-1.2mm , as custom order | |
Power required | Power | 380V 50Hz 3 Phase , as custom order |
| Main Motor | 4KW Siemens Brand | |
| Cutting Motor | 3KW Siemens | |
Machine | Support Frame | 250 H Steel 10mm |
| Forming Station | 14 rows as profile | |
| Structure | 18-20mm | |
| Shaft | 4075mm | |
| Roller | 45# Steel with heat treatment | |
| Chains | 1.2 inch | |
| Bearings | Standard as custom order | |
| Speed | 15m/min | |
| Electric Components | Delta and Siemens | |
| Size | 6.5*1.3*1.6M | |
| Weight | 1.5T |
