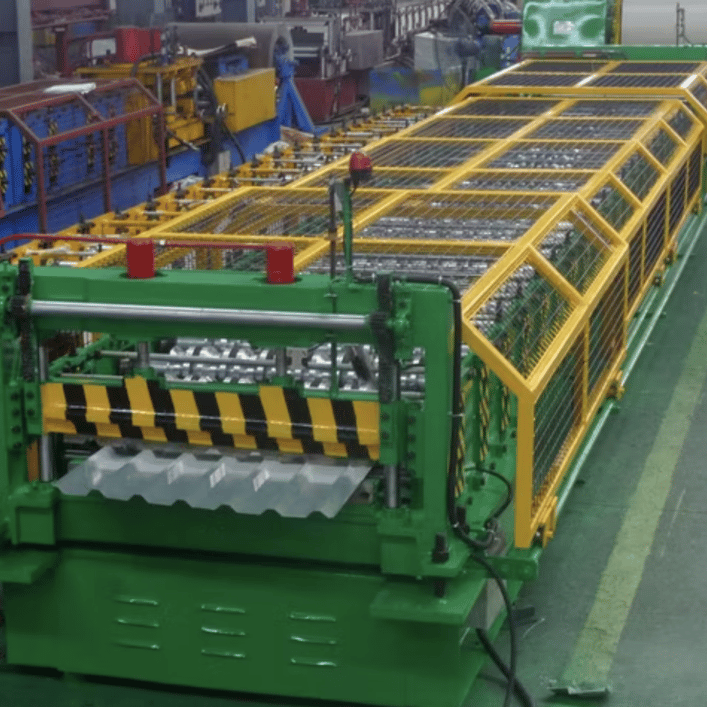

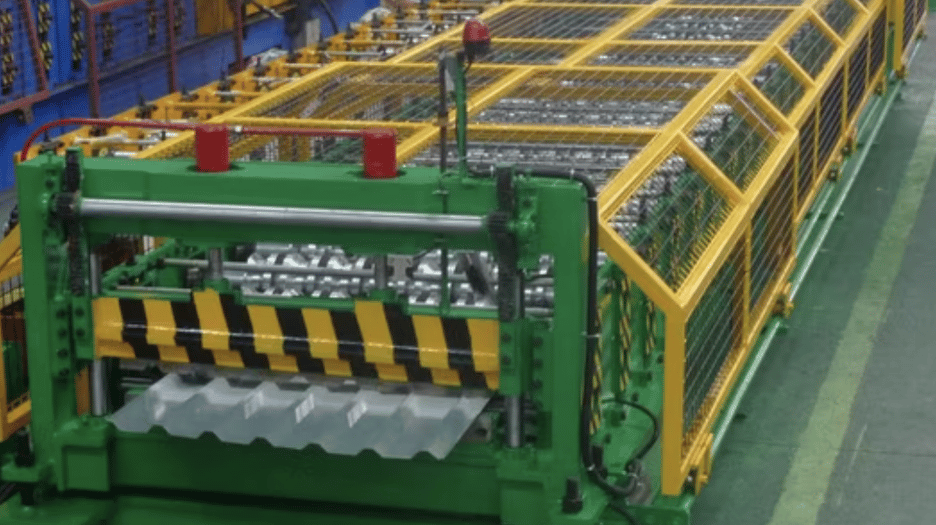

Roof Panel Roll Forming Machine in Hong Kong

Roof Panel Roll Forming Machine

Overview and Description

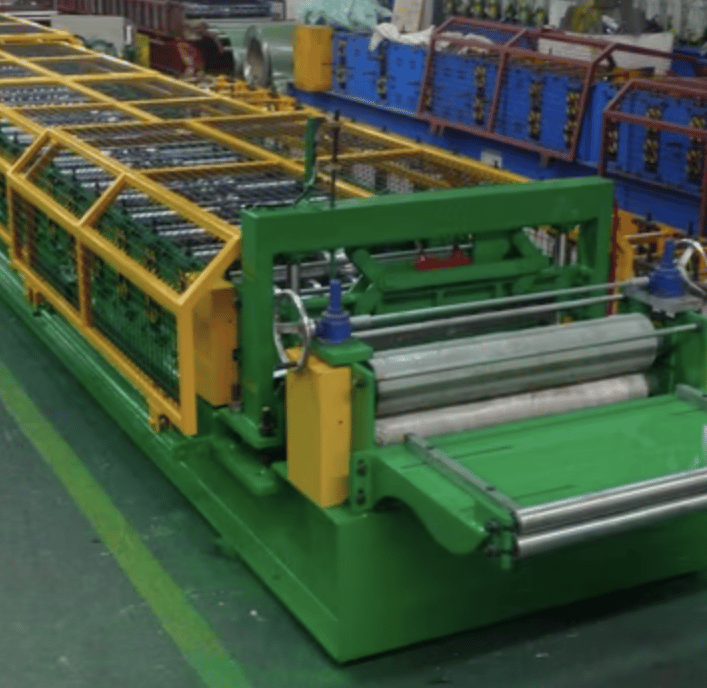

A Roof Panel Roll Forming Machine is a specialized piece of equipment designed to produce high-quality roof panels used in construction, particularly in residential, commercial, and industrial buildings. This machine is engineered to process metal sheets and transform them into durable, uniform panels that protect structures from weather and enhance overall building aesthetics.

This machine can be customized to produce various panel profiles, such as standing seam, corrugated, or ribbed panels, based on project requirements. The materials used typically include galvanized steel, aluminum, or other corrosion-resistant metals, making these panels ideal for long-lasting roofing solutions.

Machine Functions

1. Material Feeding: The machine pulls the metal coil through a feeder to ensure smooth and consistent material input.
2. Roll Forming: As the sheet passes through multiple rollers, it is gradually shaped into the desired profile, ensuring precision in every panel.
3. Cutting Mechanism: Equipped with hydraulic cutting systems, the machine cuts panels to the specified length automatically.
4. PLC Control System: A PLC (Programmable Logic Controller) manages operations, allowing operators to input specific dimensions, profile types, and production speeds for accuracy and efficiency.

Specifications

1. Roller Materials: High-quality steel with chrome plating to ensure durability and prevent corrosion.
2. Frame Size: Designed with heavy-duty, welded steel for stability and longevity.
3. Motor Power: Ranges between 7.5 kW and 15 kW, depending on production capacity.
4. PLC System: Touchscreen interface for input and monitoring, allowing easy customization of panel length and design.
5. Machine Speed: Typically around 10-20 meters per minute, adjustable as per operator requirements.
6. Hydraulic Cutting System: Automatic cutting after roll forming, with precision control for exact panel lengths.
7. Profile Width: Capable of producing various widths; generally from 400 mm to 1250 mm.
8. Material Thickness: Supports 0.3 to 0.8 mm thick metal sheets, but can be customized for thicker materials.
9. Safety Guards and Enclosures: Built-in safety features around rollers and cutters to prevent accidents.
10. Optional Add-ons: Coil car tippers, automated stackers, remote PLC control, and uncoilers to enhance operational efficiency.

Common Roof Panel Profiles

1. Corrugated Panel: Known for its wavy pattern, which provides increased strength and durability.
2. Ribbed Panel: Often used for its aesthetic appeal and additional structural integrity.
3. Standing Seam Panel: Features a raised seam that snaps together, commonly used in residential and commercial roofs.
4. Tile Profile: Mimics the look of traditional tiles, suitable for more decorative purposes.

Question and Answer Section

Q: What types of materials can a Roof Panel Roll Forming Machine handle?

A: This machine can typically process galvanized steel, pre-painted steel, aluminum, and other weather-resistant metals suitable for roofing applications.

Q: How customizable are the profiles produced by this machine?

A: Highly customizable. Roof Panel Roll Forming Machines can be adjusted to create different panel profiles like corrugated, standing seam, and tile profiles. Specific tooling and rollers can be installed for unique designs.

Q: Can this machine handle different thicknesses of metal sheets?

A: Yes, it is designed to work with metal sheets typically ranging from 0.3 to 0.8 mm in thickness. Thicker sheets may require customization of the machine's rollers and motor.

Q: What maintenance does the Roof Panel Roll Forming Machine require?

A: Routine maintenance involves lubricating the rollers, checking the hydraulic and cutting systems, and ensuring the PLC system is functioning correctly. Regular inspections of the motor and safety guards are also important for smooth operation.

Q: Is the machine safe to operate?

A: Yes, safety guards and enclosures are installed around the roll forming and cutting areas to protect operators. The PLC system also allows for remote operation, reducing the need for hands-on control during the forming process.

Q: What factors should be considered when choosing a Roof Panel Roll Forming Machine?

A: Consider the types of profiles you need, the metal thickness your projects require, machine speed, and additional features like automated stackers or remote controls. You should also consider the space available for machine setup and the power supply requirements.

Q: How long does it take to install and set up the machine?

A: Installation and setup can vary based on the model, but it generally takes around 1-2 days with skilled technicians. Training for operators can add another day or two to the setup timeline.

Q: Can the machine operate continuously for long production runs?

A: Yes, the machine is designed for continuous operation and can handle long production runs, but regular checks and scheduled maintenance are necessary to ensure consistent performance.
