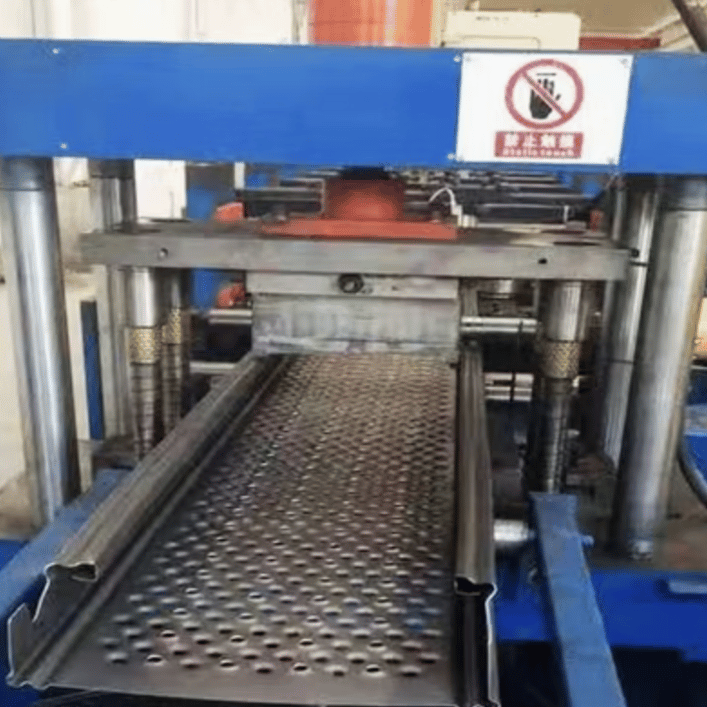

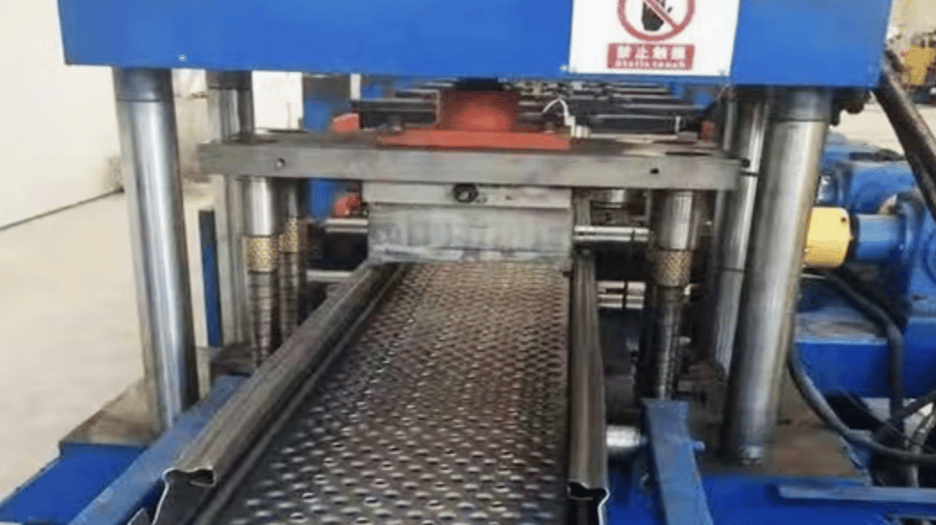

Scaffold Platform Roll Forming Machine in Trinidad and Tobago

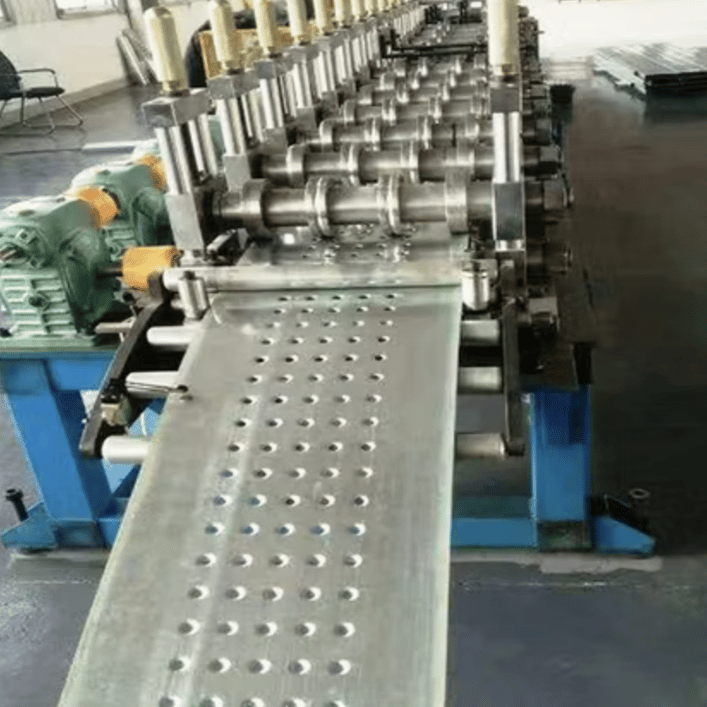

A Scaffold Platform Roll Forming Machine is designed to produce steel platforms used in scaffolding, which serve as working surfaces for construction personnel. These platforms provide a stable and secure foundation, enhancing safety in construction projects. The machine ensures that scaffold platforms are manufactured with precision, durability, and consistency, meeting the safety and structural standards required in construction.

Machine Description

Scaffold platform roll forming machines are engineered to handle heavy-duty materials like galvanized or stainless steel. They produce scaffold platforms with anti-slip surfaces, cutouts, or punched holes for grip, which are essential for worker safety. These machines are highly automated, allowing manufacturers to produce large quantities of scaffold platforms with minimal manual intervention. They come with advanced programmable logic controllers (PLCs) for accurate and customized production.

Key Specifications

1. Roller Materials: Hardened steel or chrome-plated steel rollers for durability and precision shaping.
2. Punching and Notching System: Hydraulic or pneumatic system for punching anti-slip holes and notches along the platform’s surface.
3. Frame Size: Heavy-duty steel frame to support the machine's structure and resist vibrations.
4. Motors: High-capacity motors (usually 7.5kW to 15kW) that power the roll forming process.
5. PLC System: Integrated PLC system with a touchscreen interface for controlling production parameters, including platform length, hole position, and shape.
6. Machine Speed: Up to 15-20 meters per minute, depending on the thickness of the material and the complexity of the punching patterns.
7. Safety Guards and Enclosures: Protective guards around the machine to ensure operator safety.
8. Cutting System: Hydraulic or servo-driven cutting system for precise length cuts, with an option for automatic cut-to-length function.
9. Material Thickness: Typically supports steel thicknesses from 1.0 mm to 3.0 mm.

Profile Description

• Materials: Primarily galvanized steel, stainless steel, or carbon steel to withstand outdoor conditions.
• Platform Sizes: Available in custom lengths and widths to suit various scaffolding systems.
• Material Gauge: 1.0 mm to 3.0 mm, depending on the required load-bearing capacity and project specifications.
• Market Size: Scaffold platforms are in demand in construction, infrastructure projects, and industrial sectors.
• Industries Using the Profile: Construction, building maintenance, and infrastructure sectors.
• Popular Countries: Widely used in countries with active construction industries, including the USA, China, the UAE, and Germany.

Optional Extras

1. Stackers: Automatically stack completed scaffold platforms for efficient handling and packaging.
2. Remote PLC Systems: Allow remote control and monitoring of production processes.
3. Coil Car Tippers: Facilitate the loading of steel coils into the machine.
4. Uncoilers and Recoilers: Handle the raw steel coils and finished platforms for continuous operation.

Setup and Installation

Setting up the scaffold platform roll forming machine requires professional technicians who are familiar with industrial machinery. The setup includes installing the machine, connecting the power supply, calibrating the PLC, and testing the punching, notching, and cutting systems. Proper training for operators is essential to ensure safe and efficient machine handling.

Maintenance Requirements

Routine maintenance involves checking the rollers, lubrication systems, and hydraulic units to prevent wear. Periodic inspection of the PLC system, cutting mechanism, and safety guards is also necessary. Following the manufacturer’s recommended maintenance schedule will help prolong the machine's life and maintain its production accuracy.

Questions and Answers

Q: What types of materials can the scaffold platform roll forming machine handle?

A: The machine primarily handles galvanized steel, stainless steel, and carbon steel, ideal for scaffolding platforms due to their durability and corrosion resistance.

Q: How does the punching system work in this machine?

A: The machine uses a hydraulic or pneumatic punching system to create anti-slip holes or patterns on the scaffold platform surface, ensuring safety for workers.

Q: What is the typical production speed of a scaffold platform roll forming machine?

A: Production speed can reach up to 15-20 meters per minute, depending on the material thickness and punching complexity.

Q: Can the machine produce scaffold platforms of varying lengths?

A: Yes, the integrated PLC allows operators to adjust the platform length and hole positions according to specific requirements.

Q: What additional features can be included with the scaffold platform roll forming machine?

A: Optional extras include stackers, remote PLC systems, coil car tippers, and automatic uncoilers, which enhance productivity and operational efficiency.

Q: Is this machine suitable for high-volume production?

A: Absolutely. The scaffold platform roll forming machine is designed for continuous, high-volume production, ideal for meeting large-scale construction demands.

Q: What are the maintenance requirements for this machine?

A: Routine maintenance involves checking and lubricating rollers, inspecting the hydraulic units, and ensuring the PLC and safety systems function correctly.
