Scaffolding Base Collar Welding Machine | MHD CNC, Jinan, China

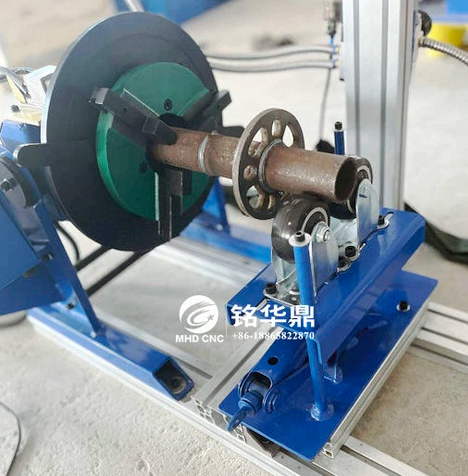

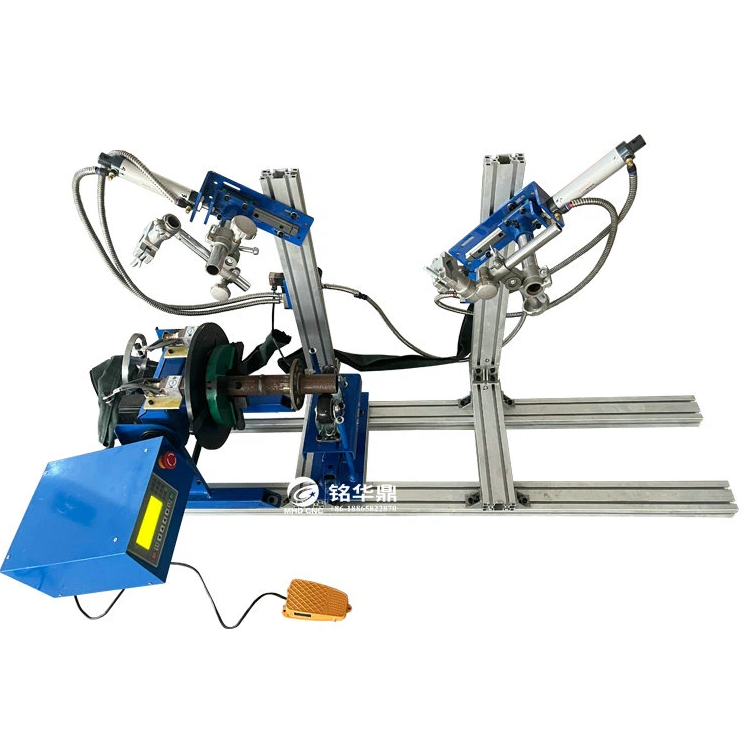

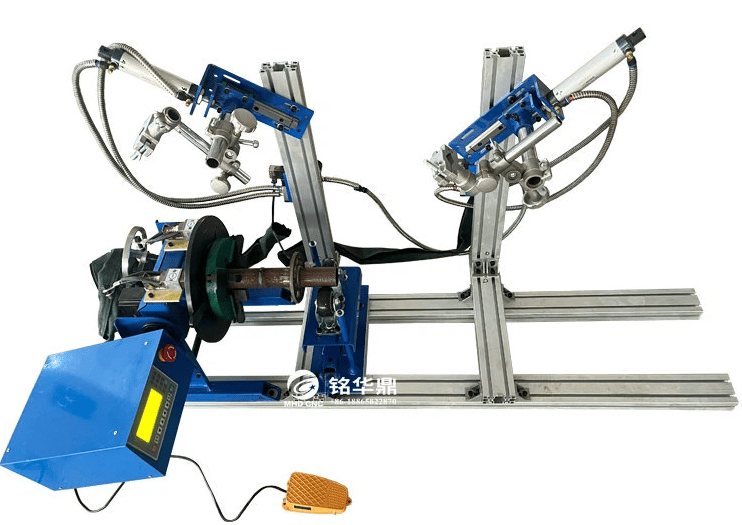

The Scaffolding Base Collar Welding Machine automatically welds base collars for scaffolding. It is equipped with two welding torches, and the workpiece is rotated at 6 rpm while the weld is made. It handles 48.3mm diameter pipe at 300mm long, with a workpiece payload of up to 30kg.
The machine works from a pre-marked pipe. The operator marks (tags) the pipe in advance so the machine knows where to weld, and the machine then completes the weld automatically. That makes it suited to production runs of base collars with a consistent specification.
MHD CNC specialises in scaffolding production equipment and supplies machines for scaffold production lines, alongside welding machines for other industries.
Why Choose an Automatic Base Collar Welder?
Welding scaffold collars by hand is repetitive, and consistency between parts matters when the collars form part of a load-bearing system. Automating the weld gives every part the same treatment.
- Automatic welding. The machine welds the base collar without an operator guiding the torch.
- Two torches. Twin welding torches work on the part together.
- Set-up for standard tube. Sized for 48.3mm pipe, the standard scaffold tube diameter.
- Low air demand. The machine runs on 0.4 to 0.6MPa compressed air.
Machine Specifications
- Pipe diameter: 48.3mm
- Pipe length: 300mm
- Welding speed: 6 rpm
- Payload capacity: 30kg
- Welding torches: 2
- Air supply: 0.4 to 0.6MPa
Operation: the pipe must be tagged (marked) in advance
Condition Available: New
Key Features
- Fully automatic base collar welding
- Two welding torches
- Designed for 48.3mm scaffold pipe, 300mm long
- 30kg payload capacity
- Low compressed air requirement (0.4 to 0.6MPa)
Applications
- Welding base collars for scaffolding systems
- Scaffold component production lines
Who This Machine Is For
- Scaffolding manufacturers
- Scaffold component producers who make base collars in volume
- Fabricators building or expanding a scaffold production line
Frequently Asked Questions
What does this machine do?
It automatically welds scaffold base collars, using two welding torches.
What size pipe does it handle?
Pipe with a diameter of 48.3mm and a length of 300mm.
Do I need to prepare the pipe first?
Yes. The pipe needs to be tagged (marked) in advance, before it goes onto the machine.
How fast does it weld?
The welding speed is 6 rpm.
How heavy a workpiece can it take?
The payload capacity is 30kg.
What air supply does it need?
Compressed air at 0.4 to 0.6MPa.
Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.
Should I buy new or used?
This model is available new, from a manufacturer that specialises in scaffolding production equipment.
