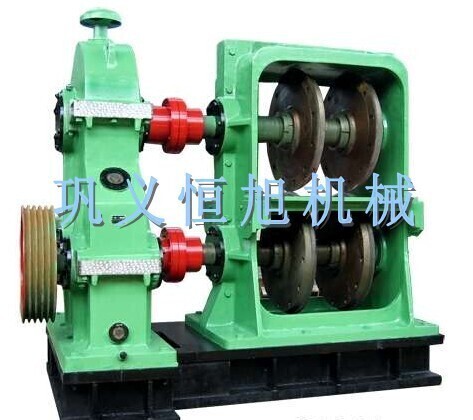

Shearing Machine in Gongyi, China

1)This body is composed of driving device, frame, upper & lower knife pivot and base etc.

2)The motor passes trough reducer, distribution box, universal spindle to drive knife pivot run.

3When the upper & lower knife pivot run to a certain position, then shearing the flat iron, when finished shearing, air cylinder drives the upper knife pivot to rise, and the shearing machine stops at the primary position.

4)The electric driving by frequency control, it makes the circular disk match with rolling speed when shearing.

Main technical parameter

1)Type: disk pneumatic fly shear of variable speed

2)Shearing material & specification: flat iron: 20x5~100x10mm

3)Shearing temperature: 500~800 °C

4)Rolling speed: 3m/s

5)Shearing times: 30times/min

6)Circular disk diameter:550mm

7)Main drive motor: AC15Kw,1460 r/min, 1 set

8)Clutch air cylinder: dia320/dia70x160,0.63MPa, 1 set

9)Total weight of equipment: 23t
