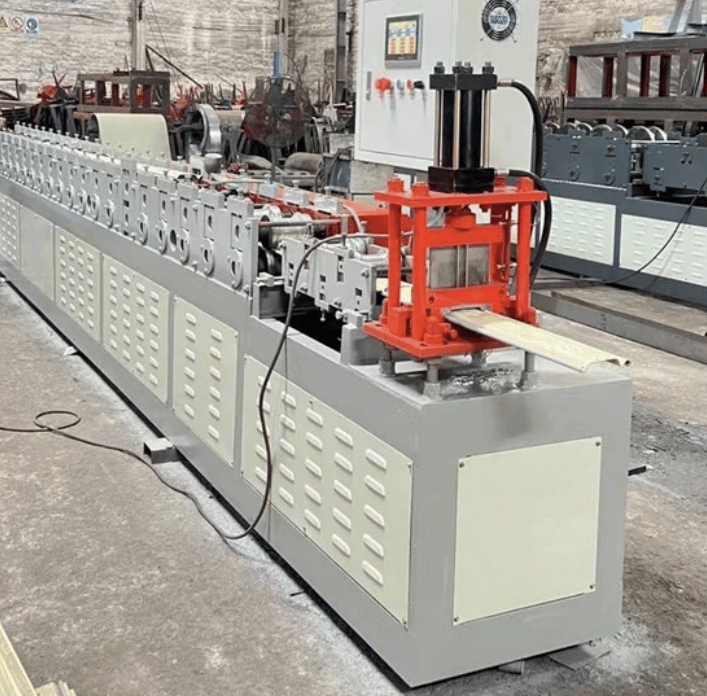

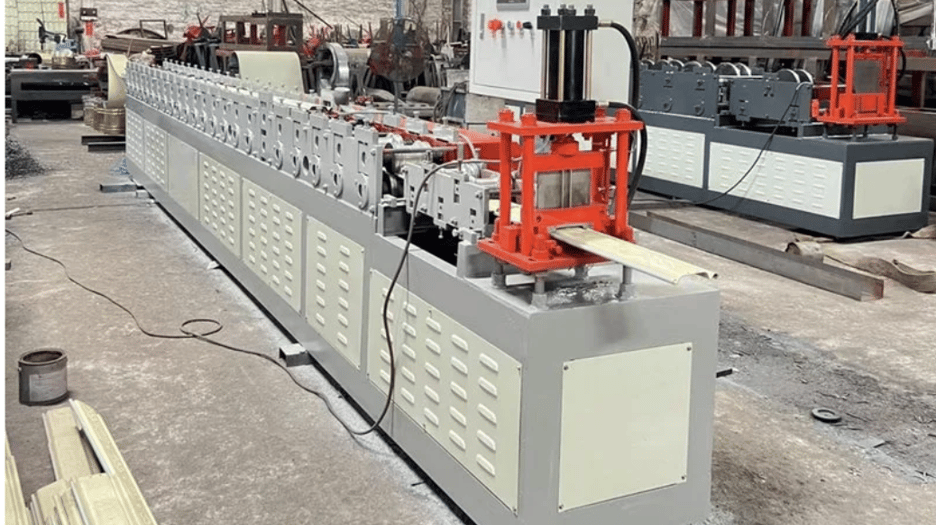

Shutter Door Roll Forming Machine in Ecuador

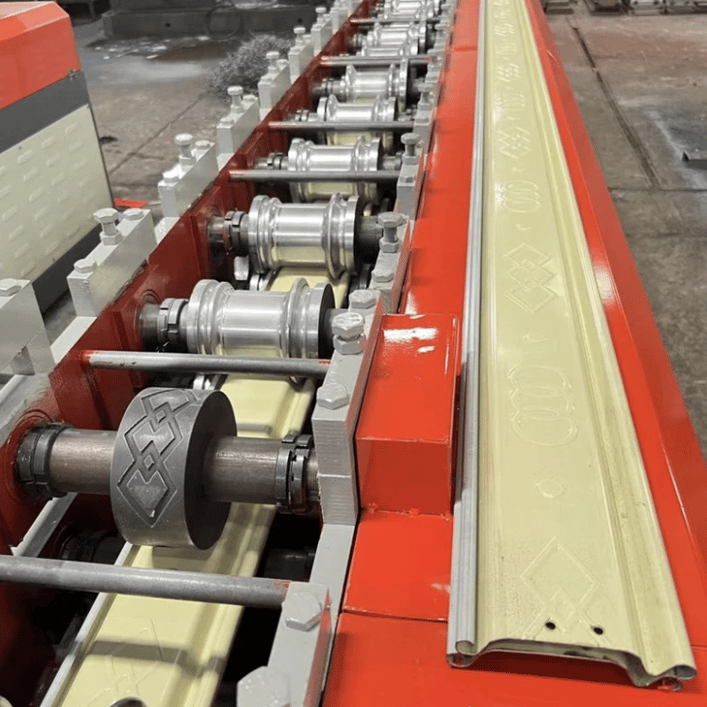

Roller shutter door profile roll forming machine
1.Can roll forming different kinds of shutter door slat with speed 25m/min.
2.Customized according to your shutter door slat profile drawing.
3.After roll forming, here will have a punching system. the hole design will follow your request.
4.The surface of shutter door slat will very smooth and beautiful without any scrtached on surface.
5.On the shutter door slat surface, also can embossing different kind pattern or press logo as your request.
| Decoiler | Capacity:5 tons | |
| 2 | Material | Steel Coil |
| 3 | Thickness | 0.3-1.5mm |
| 4 | Transmission | Chain/Gear/Gearbox |
| 5 | Speed | 25m/min |
| 6 | Roller | Steel with quenched treatment,chromed on the surface |
| 7 | Shaft | steel with tempering treatment |
| 8 | Cutting type | Hydraulic cutting |
| 9 | Cutting material | Cr12 with quenched treatment Hardness58°-62° |
| 10 | Welding | Automatic spot welding |
| 11 | Control system | PLC |
| 12 | Electric brand | Delta,Siemens |
| 13 | Voltage | 380V,50HZ,3PH(or as customers' request) |
