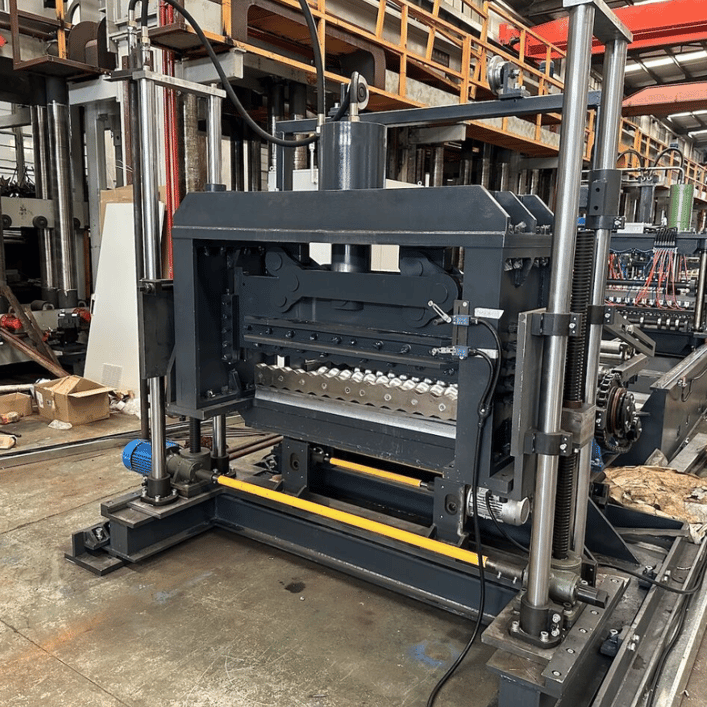

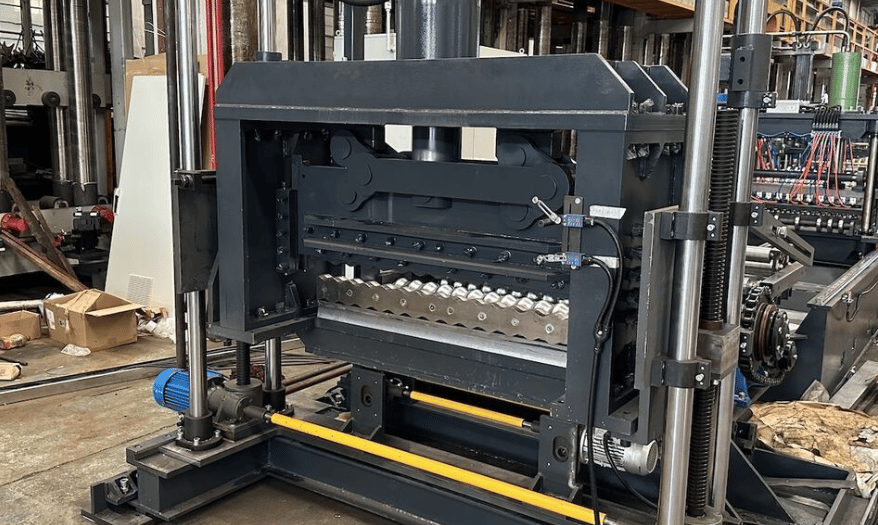

Silo Roll Forming Machine Ukraine

A silo roll forming machine is a highly specialized piece of equipment designed for the efficient production of silo panels and components. These machines are critical in industries such as agriculture, food storage, and industrial material storage, where silos are commonly used for bulk material handling. By automating the production of silo panels, these machines ensure precision, durability, and cost-effectiveness, making them an essential asset for manufacturers.

Full Description of a Silo Roll Forming Machine

The silo roll forming machine is engineered to produce corrugated or smooth panels for constructing silos. Its primary focus is to create panels that interlock seamlessly, providing a robust and weatherproof structure. These machines cater to varying silo designs, such as flat-bottom silos, hopper-bottom silos, and more.

The system consists of a decoiler, a roll forming unit, a cutting unit, and a control panel, all working in harmony to produce high-quality silo panels. Depending on the specifications, the machine can manufacture panels with precise dimensions, gauge thickness, and profiles to suit customer needs.

Key Specifications of Silo Roll Forming Machines

Here are the typical specifications:

1. Roller Materials:
   • High-grade steel with chrome plating for durability and precision.
   • Number of forming stations: 18–25 (depending on the design).
2. Profile Options:
   • Corrugated panels.
   • Smooth panels with punched holes for assembly.
3. Frame Size:
   • Heavy-duty steel frames for vibration resistance and longevity.
   • Frame thickness: 18–25 mm.
4. Power System:
   • Motor: 7.5–15 kW, based on production requirements.
   • Hydraulic power: 4–7.5 kW for cutting and punching systems.
5. Panel Dimensions:
   • Width: 1000–1250 mm.
   • Material thickness: 0.8–4 mm (customizable).
6. Material Compatibility:
   • Galvanized steel.
   • Stainless steel.
   • Aluminum sheets.
7. Control System:
   • PLC-based control with a touchscreen interface for easy operation.
   • Programmable for different panel lengths and profiles.
8. Cutting System:
   • Hydraulic cutting with precision tools.
   • Tolerance: ±0.5 mm.
9. Production Speed:
   • 8–12 meters per minute (customizable).
10. Optional Extras:
    • Automatic stackers for easy handling.
    • Pre-punching systems for assembly holes.
    • Coil car and uncoiler systems for efficient loading.

Why Ukraine is an Ideal Market for Silo Roll Forming Machines

Ukraine, with its robust agricultural and industrial sectors, is a significant market for silos. The country's vast grain production and material storage needs make silo manufacturing a critical industry. Investing in a silo roll forming machine allows local manufacturers to:

• Meet the high demand for silos in agriculture.
• Ensure compliance with international storage standards.
• Reduce production costs and increase efficiency.

Question and Answer Section

Q1: What materials can a silo roll forming machine process?

A silo roll forming machine can process galvanized steel, stainless steel, and aluminum sheets. The choice of material depends on the application and environmental conditions.

Q2: What is the typical production speed of a silo roll forming machine?

The machine typically operates at speeds of 8–12 meters per minute, but this can vary depending on the material and panel specifications.

Q3: Can the machine produce panels for different silo designs?

Yes, the machine can be customized to produce panels for various silo types, including flat-bottom silos, hopper silos, and storage bins.

Q4: How is the machine operated?

The machine uses a PLC system with a user-friendly touchscreen interface. Operators can program different panel lengths and profiles as per project requirements.

Q5: What is the power requirement for this machine?

The machine requires a power supply of approximately 380V, 50Hz, which is compatible with Ukraine’s industrial power standards.

Q6: Are there any additional accessories available?

Optional extras include automatic stackers, pre-punching systems, coil cars, and remote control PLC systems.

Q7: How do I ensure the machine meets Ukrainian compliance standards?

When purchasing a silo roll forming machine, ensure it is certified under international quality standards (ISO, CE) and adheres to local industrial regulations.

Q8: What maintenance does the machine require?

Regular lubrication of rollers and inspection of hydraulic systems, cutting tools, and electrical connections will ensure smooth operation. Follow the manufacturer’s maintenance schedule.

Q9: Is installation support provided?

Most manufacturers offer installation support, either through onsite visits or virtual guidance. Check with your supplier for details.

Q10: What is the typical cost of a silo roll forming machine in Ukraine?

The cost ranges from $50,000 depending on machine specifications, production capacity, and additional features.
