Slat Roller Shutter Door Roll Forming Machine Ethiopia
- Condition
- New
- Supplier
- Roll Forming Machines Ethiopia
- Country
- Ethiopia
- Listing ID
- 7562
Request a Quote
To express an interest in this machine please submit the form below.
Coil Material |
GI/GL |
|
Coil Thickness |
0.6~1.2MM |
|
Coil Width |
--- |
|
Speed |
15-20M/MIN |
|
Voltage |
As Customer's Request |
|
Roll Forming Unit |
Roller Station |
12 |
Driving Motor |
5.5KW |
|
Shaft Diameter |
50mm Solid |
|
Shaft Material |
45# Hard Steel |
|
Roller Material |
Cr12 |
|
Under Frame |
Square Tube Welded |
|
Sidewall Thickness |
Memorial Archway Type |
|
Transmission |
Gear |
|
Feeding Device |
1 Set |
|
Cutting Unit |
Cutting Type |
Hydraulic Non-stop TO Cut |
Hydraulic Pump Power |
3KW |
|
Cutting Die Material |
Cr12Mov |
|
Hydraulic Oil |
46# Abrade Oil |
|
Control Unit |
Control Method |
PLC |
Length Control |
Encoder |
|
Operation |
Touch Screen |
|
Language |
Chinese & English |
|
Auxilliary Device |
--- |
1.5T Manual Decoiler |
--- |
Exit Rack |

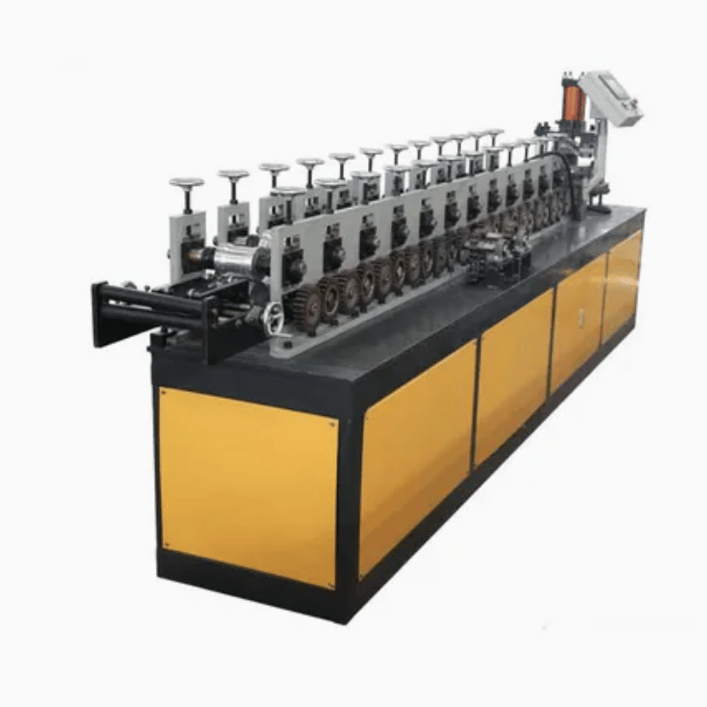

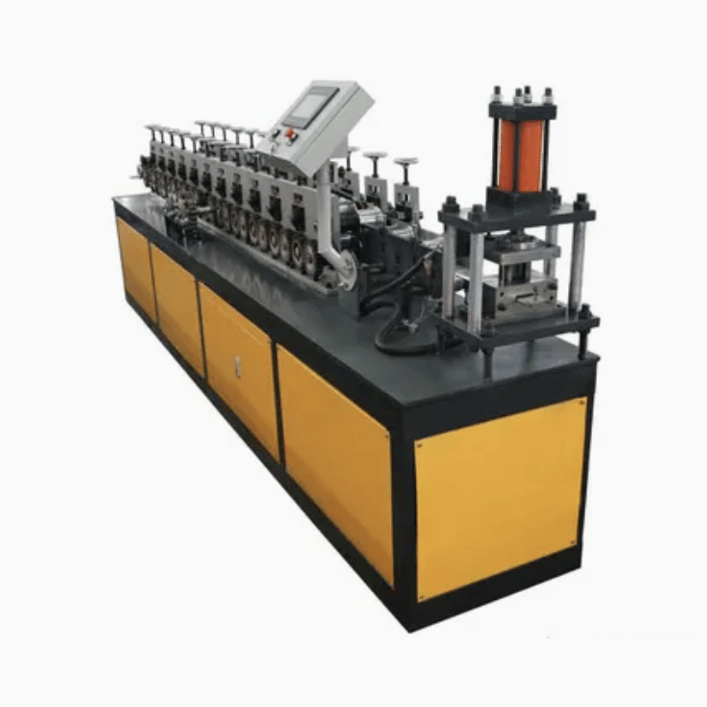

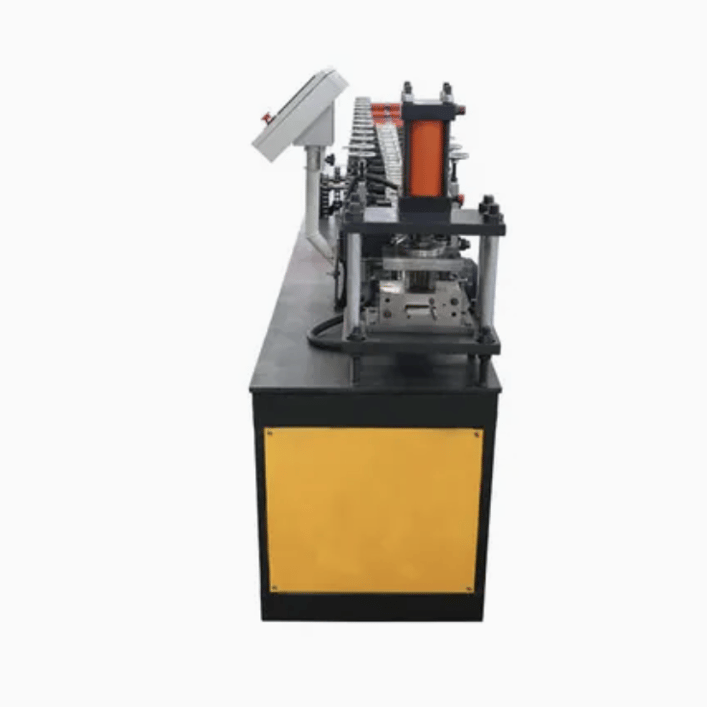

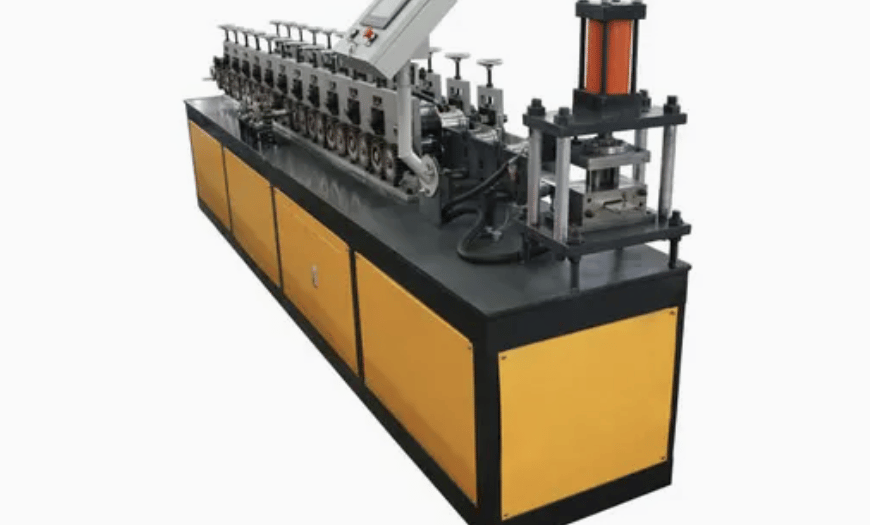

A Slat Roller Shutter Door Roll Forming Machine is specialized equipment designed for manufacturing the slats used in roller shutter doors. These machines typically use a roll forming process to shape metal into the interlocking slats that make up roller shutters, commonly used for security purposes on doors and windows.
Key Features
- Automatic Operation: Many machines are automated, which allows for consistent, high-quality slats with minimal manual intervention.
- Adjustable Rollers: Rollers are often adjustable to create different slat designs, sizes, and profiles depending on specific needs.
- Durable Construction: Made from high-strength steel, these machines are built to withstand heavy-duty production.
- Customizable Slat Width: Most machines allow customization for various widths, accommodating diverse shutter designs.
- High Production Speed: These machines can typically produce slats at a fast rate, improving productivity.
Applications
- Commercial and Industrial Security Shutters: Slats produced by these machines are widely used in commercial and industrial sectors for secure rolling shutter doors.
- Residential Garage Doors: Also common in residential applications, where they form the basis of secure, durable garage doors.
