PUTAI Sliding Gate Roller Track Rail Roll Forming Machine – Automatic Door and Gate Guide Rail Production Line

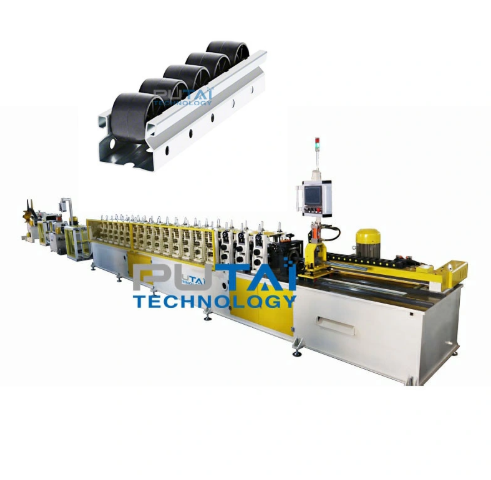

The PUTAI roller track rail roll forming machine is a fully automatic production line that forms coiled metal strip into precise roller tracks and door guide rails. Galvanized, cold-rolled or stainless steel strip passes through 18 profiled roller stations that shape it step by step into U-shaped, C-shaped or custom track sections with consistent geometry, a smooth running surface and strong rigidity. It is built for manufacturers of sliding gates, roller shutter doors, garage doors and material-handling systems who want to produce their own tracks to exact specifications.

What Is a Roller Track Rail?

• A formed metal channel that guides rollers or wheels along a straight path
• Keeps doors, gates and shutters aligned and running smoothly
• Made in U, C or custom shapes to match the roller or wheel design
• Needs accurate, consistent dimensions so moving parts run quietly without binding

Key Features

• 18 forming stations for accurate, smooth track profiles
• Forms galvanized, cold-rolled and stainless steel strip
• U-shaped, C-shaped and custom cross-sections built to your drawing
• Servo cutting system with position feedback for precise, repeatable lengths and minimal waste
• PLC control for simple length and batch setting
• Bidirectional adjustable archway roller frames for fine gap adjustment in two directions
• Straightening unit corrects any bow or twist for straight finished rails
• Forged 45# steel shafts and Cr12 rollers and cutting blades for long service life

Technical Specifications

• Profiles: U-shaped, C-shaped and custom roller track sections
• Material: Galvanized steel, cold-rolled steel, stainless steel
• Material thickness: 0.4 – 0.8 mm
• Forming stations: 18
• Roller material: Cr12
• Shaft material: 45# steel, forged
• Cutting system: Servo cutting
• Cutting blade material: Cr12
• Control system: PLC
• Machine size: Approx. 6,300 × 1,200 × 1,650 mm

How the Production Line Works

• Feeding: Metal strip is fed from the coil into the line
• Roll forming: 18 roller stations gradually bend the strip into the track profile
• Fine adjustment: Archway frames allow roller gaps to be tuned in two directions for exact dimensions
• Straightening: The straightening unit applies even, controlled force to keep the rail true without cracking or distortion
• Servo cutting: Servo motors with position feedback cut each rail to the programmed length

Applications

• Sliding gate rails
• Roller shutter door tracks for residential, commercial and industrial buildings
• Garage door guide rails
• Curtain wall tracks
• Material-handling roller tracks, flow racks and conveyor guide rails

Commercial Details

• Brand: PUTAI Technology
• Place of origin: Tianjin, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Standard waterproof export packaging
• Delivery time: 65 days
• After-sales: Engineer support provided

Frequently Asked Questions

• What track shapes can the machine make? U-shaped, C-shaped and custom sections, with tooling made to your profile drawing.
• What materials can it form? Galvanized, cold-rolled and stainless steel strip from 0.4 to 0.8 mm thick.
• How accurate are the cut lengths? The servo cutting system uses position feedback for precise, repeatable lengths with minimal waste.
• Can the roller gaps be adjusted? Yes. The archway frames adjust in two directions, making it easy to fine-tune the profile.
• How long is delivery? Around 65 days.
• What should I send for a quotation? Your track profile drawing or sample, material type and thickness, required output, and local voltage and frequency.
