Smart H-Beam Welding Line — New | Jinfeng, Ningbo, China

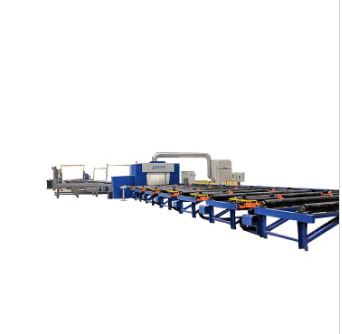

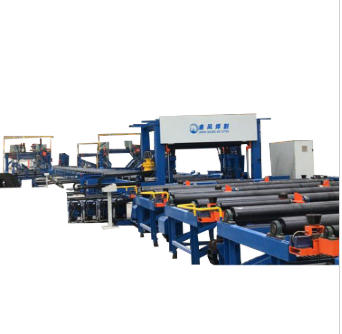

The Smart H-Beam Welding Line is an intelligent, fully integrated production system for manufacturing H-beam steel, developed with independent intellectual property by Jinfeng Welding & Cutting based on years of experience in welding and cutting equipment design. The line automates the entire H-beam production process — assembly, welding, and straightening — in one continuous flow, significantly reducing labor requirements compared to conventional H-beam production methods.

The system uses a parameterized HMI (human-machine interface), allowing operators to easily set up processing specifications and adjust process parameters for different H-beam sizes. Once configured, the H-beam automatically flows between each production station according to the manufacturing rhythm, with equipment matched proportionally to maintain efficient, continuous output. This makes the Smart H-Beam Welding Line particularly well suited to mass production environments, where consistent quality and reduced manual handling are priorities.

Why Choose an Automated H-Beam Welding Line?

Producing H-beams manually — assembling flange and web plates, welding them by hand, then straightening each finished beam — is labor-intensive and highly dependent on operator skill and consistency. The Smart H-Beam Welding Line addresses this by automating each of these three stages within one connected system, with the beam moving automatically between stations rather than requiring manual transport by crane between separate machines.

This reduces both labor intensity and crane usage across the whole production line, while improving consistency across every beam produced — an important consideration for structural steel fabricators supplying construction projects where dimensional accuracy and weld quality are critical to structural integrity.

Machine Specifications

• H-beam flange width: 130–800mm
• Flange thickness: 8–60mm
• H-beam web height: 220–1500mm
• Web thickness: 220–1500mm (per manufacturer spec)
• H-beam length: 5000–15,000mm

Condition Available: New

System Components

• WHZ6015 H-Beam Horizontal Assembling Machine

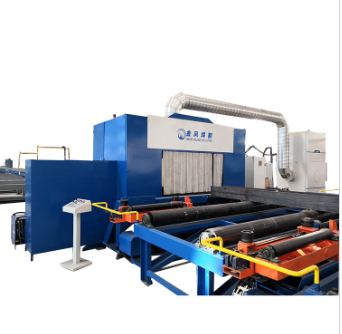

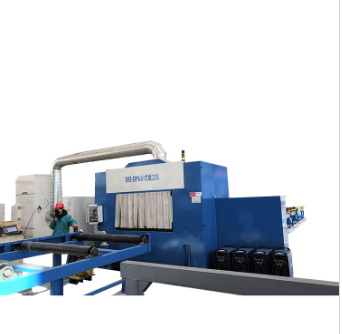

• WHM40 H-Beam Automatic Submerged Arc Welding Machine
• WJZ6015 H-Beam Horizontal Straightening Machine
• WFZ6015 180° Hydraulic H-Beam Flipper
• Transport conveyor rollers

Key Features

• Parameterized HMI for easy setup of processing specifications and process parameters
• Fully automated flow between assembly, welding, and straightening stations
• Covers both light-duty and heavy-duty H-beam production
• Reduces labor intensity and crane dependency compared to manual production methods
• Developed with Jinfeng's own independent intellectual property, based on years of welding and cutting equipment experience

Applications

• Mass production of structural H-beams
• Light-duty and heavy-duty steel structure fabrication
• Steel building and construction component manufacturing

Who This Machine Is For

• Structural steel fabricators
• Steel building and pre-engineered metal building (PEMB) manufacturers
• H-beam producers scaling from manual to automated production

Frequently Asked Questions

What does the Smart H-Beam Welding Line actually do?
It automates the full H-beam production process — assembling flange and web plates, welding them together via submerged arc welding, and straightening the finished beam — all within one connected production line.

What size H-beams can this line produce?
The line handles flange widths of 130–800mm, flange thickness of 8–60mm, web heights of 220–1500mm, and beam lengths from 5,000mm to 15,000mm, covering both light-duty and heavy-duty H-beam production.

Does this line require a lot of manual labor to operate?
No. The system is designed to minimize labor intensity and reduce reliance on cranes, with the beam automatically flowing between assembly, welding, and straightening stations once configured via the HMI.

What welding process does this line use?
The line uses automatic submerged arc welding (SAW), delivered via the WHM40 H-Beam Automatic Submerged Arc Welding Machine, for consistent, high-quality structural welds.

Is this line suitable for both small and large H-beams?
Yes. The line is designed to cover the production of both light-duty and heavy-duty H-beams within its specified size range.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, giving full manufacturer support and the latest control software and automation features from day one.
