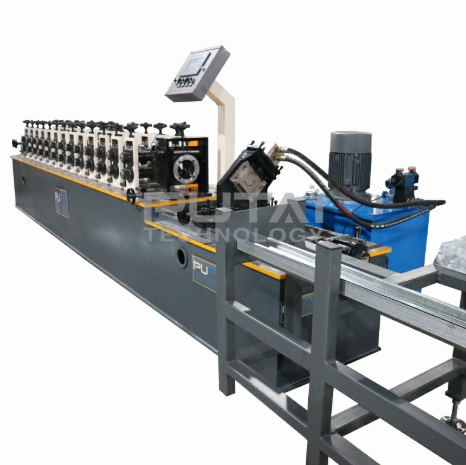

PUTAI Top Hat Channel Roll Forming Machine – Furring Channel for Acoustic Clip Soundproofing Systems

The PUTAI top hat channel roll forming machine produces metal furring channels designed to work with acoustic isolation clips, forming the basis of high-performance soundproof walls and ceilings. The clips are fixed to the structure, the channel snaps into the clips, and plasterboard is fixed to the channel, creating a decoupled system that reduces both vibration and airborne sound. The machine forms 0.4–0.8 mm steel through 12 stations with Cr12 rollers and cuts each channel to length with a servo cutting system, giving manufacturers an efficient way to supply this growing acoustic market.

How Clip and Channel Soundproofing Works

• Acoustic isolation clips are fixed to the wall studs, joists or slab
• The top hat channel fits into the clips, creating a separate mounting surface
• Plasterboard is fixed to the channel rather than directly to the structure
• This decoupling stops vibration passing through, cutting both impact noise and airborne sound
• Channels are quick and easy to install, making the system popular with contractors

Who Uses Soundproofing Channel?

• Apartment and multi-family housing developers meeting acoustic regulations
• Recording studios, home cinemas and music rooms
• Hotels, hospitals and schools
• Offices, meeting rooms and commercial fit-outs
• Renovation projects upgrading sound insulation between rooms and floors

Key Features

• Dedicated tooling for top hat furring channel to suit acoustic clip systems
• 12 forming stations with Cr12 rollers for accurate, consistent profiles, so channels fit clips securely
• Forms 0.4–0.8 mm steel
• Servo cutting system with position feedback for precise lengths and minimal waste
• Straightening unit applies gradual, even force to keep channels straight without cracking
• Cr12 cutting blades for clean cuts and long blade life
• Fast 35-day delivery

Technical Specifications

• Product: Top hat furring channel for acoustic clip systems
• Material: Steel coil
• Material thickness: 0.4 – 0.8 mm
• Forming stations: 12
• Roller material: Cr12 (D3)
• Shaft material: 45# steel, forged
• Cutting system: Servo cutting
• Cutting blade material: Cr12
• Machine size: Approx. 5,300 × 1,200 × 1,650 mm

How the Production Line Works

• Feeding: Steel strip is fed from the coil into the line
• Roll forming: 12 stations shape the strip into the top hat profile
• Straightening: The channel is straightened with even, controlled pressure
• Servo cutting: Each channel is measured and cut to the programmed length

Related PUTAI Machines

• Furring channel roll forming machine, for standard hat and resilient channel
• Omega profile roll forming machine, for general drywall furring
• Roof batten roll forming machine, for heavier top hat sections

Commercial Details

• Brand: PUTAI Technology
• Company: Tianjin PUTAI Technology Co., Ltd
• Place of origin: Tianjin, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Standard waterproof export packaging
• Delivery time: 35 days
• After-sales: Engineer support provided

Frequently Asked Questions

• Where is this machine made? It's listed by PUTAI as made in Tianjin, China, and is exported worldwide.
• What makes this channel suitable for soundproofing? It's made to fit acoustic isolation clips. Together they separate the plasterboard from the structure, reducing sound and vibration transfer.
• Can the profile be matched to a specific clip system? Yes. Send PUTAI the clip or channel dimensions, and the tooling is made to suit.
• What thickness does it form? Steel from 0.4 to 0.8 mm.
• How long is delivery? Around 35 days.
• What should I send for a quotation? Your channel drawing or sample, the clip system it must fit, thickness, target output, and local voltage and frequency.
