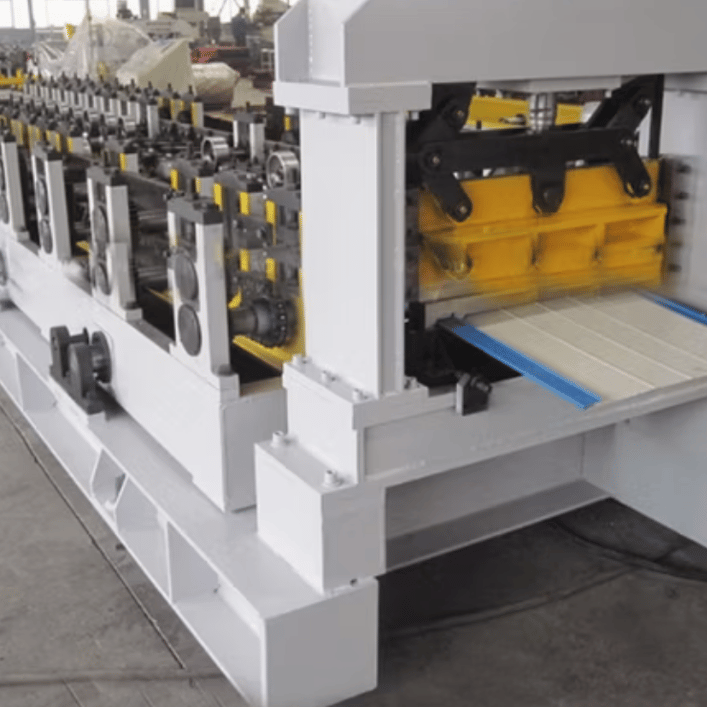

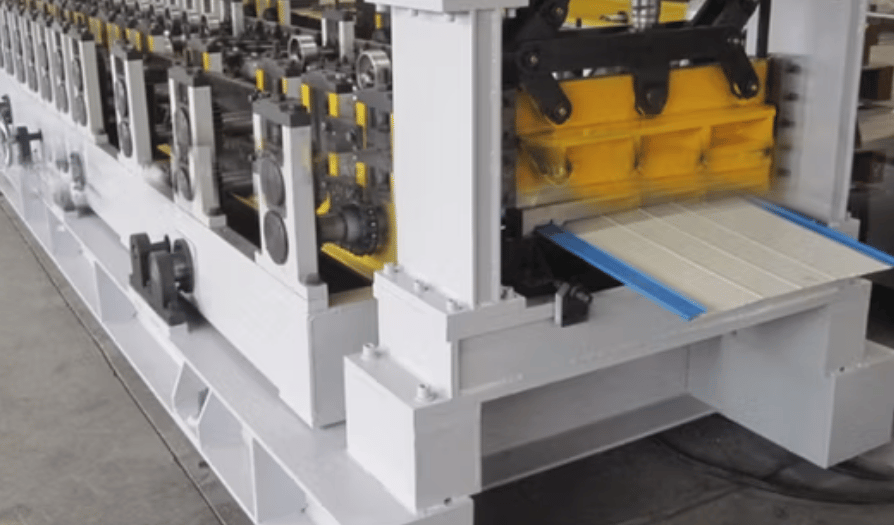

Standing Seam Metal Roof Panel Roll Forming Machine – Armenia
The Standing Seam Metal Roof Panel Roll Forming Machine is a high-precision production line engineered for the manufacture of concealed fastener roof panels used in architectural, commercial, and residential buildings.
In Armenia, where construction projects increasingly demand modern and durable roofing systems, standing seam panels are gaining popularity due to their leak-proof joints, high wind resistance, and sleek design.
At Machine Matcher, we supply new, custom-built standing seam roll forming machines designed specifically for your profile, coil gauge, and power configuration. These machines are fully automatic, equipped with servo drives, hydraulic cutting, and PLC systems for maximum accuracy and operational efficiency.
All systems are manufactured to your specifications, tested before delivery, and installed with worldwide 24/7 support.
Machine Matcher serves the Armenian, European, and Middle Eastern markets, offering complete machine solutions — from uncoilers and levelers to automatic stackers and remote PLC control systems.
Machine Technical Specifications
| Specification | Details |
|---|---|
| Machine Type: | Standing Seam Metal Roof Panel Roll Forming Machine |
| Production Speed: | 15–45 m/min (depending on profile and material) |
| Material Thickness Range: | 0.4–0.8 mm |
| Material Width Range: | 300–600 mm coil width (customizable) |
| Material Types: | Galvanized Steel (GI), Galvalume (AZ), Aluminum, Copper, Stainless Steel |
| Material Yield Strength: | 235–550 MPa |
| Roller Material: | GCr15 bearing steel, hardened and chromed |
| Roller Surface Treatment: | Hard chrome plating and precision polishing |
| Number of Forming Stations: | 12–24 stations depending on panel design |
| Roller Shaft Diameter: | 60–85 mm |
| Shaft Material: | 45# steel, precision ground |
| Main Drive Type: | Gearbox or chain drive |
| Power (Armenia): | 380 V / 50 Hz / 3 Phase |
| Motor Power: | 7.5–15 kW |
| Cutting Method: | Hydraulic flying shear or post-cut |
| Blade Material: | Cr12MoV, heat-treated for long lifespan |
| Control Type: | PLC with touchscreen HMI (Siemens / Delta / Mitsubishi) |
| Operating Mode: | Fully automatic with manual override |
| De-coiling System: | 3–10 ton manual or hydraulic uncoiler |
| Punching/Notching System: | Optional servo-hydraulic pre-punch unit |
| Machine Frame: | 350–400 H-beam welded structure |
| Thickness of Frame Steel: | 16–20 mm |
| Profile Shape: | Snap-lock, Mechanical Seam, or Snap-Seam |
| Profile Width and Depth: | 300–600 mm width; 25–50 mm seam height |
| Length Tolerance: | ±1 mm/m |
| Safety Features: | Safety guards, E-stop, overload protection |
| Protective Covers/Guards: | Full enclosure with transparent panels |
| Emergency Stop Button: | Installed on entry, exit, and control console |
| Overload Protection System: | Integrated in motor and hydraulic units |
Optional Add-ons and Upgrades
- Servo feeder for higher speed and accuracy
- Hydraulic punching and notching station
- Automatic stacker system
- Dual-decoiler for continuous production
- Remote PLC system for diagnostics and monitoring
- Coil car and hydraulic coil tilter
- Standing seam clip rolling attachment
- Safety enclosure with sound insulation
- Roll set changeover for multiple panel widths
- Leveling and guiding system with servo alignment
All machines are new, custom-built to your roofing profile, and come with full installation manuals, test videos, and operation training.
Profile Description
Standing seam metal roof panels are the most advanced and durable roofing profiles available today. These panels interlock vertically, concealing fasteners beneath raised seams, creating a watertight system ideal for architectural and industrial applications.
Common Standing Seam Profiles
- Snap-lock seam — Easy to install without seaming tools.
- Mechanical seam (single/double) — Offers maximum wind and water resistance.
- Nail strip or fastener flange seam — Quick installation for residential buildings.
Profile Sizes
- Seam height: 25–50 mm
- Effective cover width: 300–600 mm
- Coil width: up to 600 mm
- Material thickness: 0.4–0.8 mm
Suitable Materials
- Galvalume (AZ) — Corrosion-resistant for long life
- Pre-painted steel (PPGI) — Aesthetic, available in multiple colors
- Aluminum — Lightweight for low-load roofs
- Copper & Stainless Steel — Premium architectural finishes
Industries and Applications in Armenia
Standing seam roofing systems are used in:
- Architectural and commercial buildings
- Airports, malls, and sports complexes
- Factories and industrial facilities
- Residential housing projects
- Government buildings and institutions
- Solar roofing systems
In Armenia, major cities like Yerevan, Gyumri, and Vanadzor are seeing rapid growth in modern steel and aluminum roofing systems. Standing seam panels are preferred due to their durability, clean aesthetics, and low maintenance in diverse weather conditions — from hot summers to cold mountain climates.
Setup and Installation
Each standing seam machine is delivered fully tested and configured for easy installation.
Setup Process
- Place the machine on a level foundation.
- Connect the uncoiler and hydraulic system.
- Wire the control cabinet and PLC interface.
- Run calibration and coil feeding tests.
- Produce sample panels and adjust alignment.
Our engineers provide remote support or on-site installation and training in Armenia. Full documentation and videos are included.
Maintenance and Service
To ensure long-term precision and performance, follow a structured maintenance plan:
Daily
- Check coil alignment and roller cleanliness.
- Inspect cutting and punching units for debris.
Weekly
- Lubricate roller bearings and guide rails.
- Inspect the hydraulic oil level.
Monthly
- Check motor chain tension and frame bolts.
- Verify PLC and encoder calibration.
Annually
- Inspect roller alignment.
- Replace worn seals or blades.
- Perform full lubrication cycle and safety inspection.
Machine Matcher provides remote diagnostics, spare parts, and preventive maintenance contracts worldwide.
Machine Pricing
Standing seam roll forming machine prices depend on profile type, automation level, and added accessories.
| Machine Type | Description | Estimated Price (USD) |
|---|---|---|
| Standard Model | Manual uncoiler, basic PLC, post-cut | $55,000 – $85,000 |
| Advanced Model | Hydraulic uncoiler, servo feeder, hydraulic cutting | $85,000 – $120,000 |
| High-End Model | Full servo line, dual-decoiler, automatic stacker, remote PLC | $120,000 – $180,000+ |
All prices include:
- Machine built to your profile
- Test video before shipment
- Export packaging and documentation
- Optional installation and operator training
Contact us for a custom quotation based on your roof panel design and project requirements.
Countries & Markets Served
Machine Matcher supplies standing seam metal roof panel roll forming machines to clients in:
- Armenia
- Georgia
- Turkey
- Iran
- Azerbaijan
- United Kingdom
- United States
- Gulf States and Europe
Each machine meets international standards (CE, ISO, UL) and can be adapted to local voltage and control preferences.
Why Choose Machine Matcher
- 100% custom-built standing seam panel machines
- 24/7 global technical support
- Remote PLC monitoring and diagnostics
- ISO and CE-certified designs
- OEM-quality spare parts and service
- Expert installation and operator training
- Global offices in UK, USA, and Middle East
Machine Matcher ensures every system is accurately engineered, factory-tested, and ready for high-volume production.
Frequently Asked Questions
Q1: What is a standing seam roof panel machine?
A: It’s a continuous roll forming system that produces concealed fastener roof panels with raised seams for watertight, long-lasting roofs.
Q2: Can I make different seam types on one machine?
A: Yes, we can provide interchangeable tooling or cassette systems for multiple seam designs (snap-lock, mechanical, or nail strip).
Q3: What materials are best for standing seam panels in Armenia?
A: Galvalume and PPGI coils are ideal for Armenia’s climate due to their corrosion resistance and thermal stability.
Q4: Can the machine produce curved panels?
A: Yes, with an optional curving or tapering unit, panels can be formed to suit curved roof designs.
Q5: What speed can I expect?
A: Standard production speed ranges from 15–45 meters per minute, depending on profile depth and material thickness.
Q6: What support does Machine Matcher provide after purchase?
A: We provide remote PLC assistance, spare parts supply, installation guidance, and full maintenance support.
