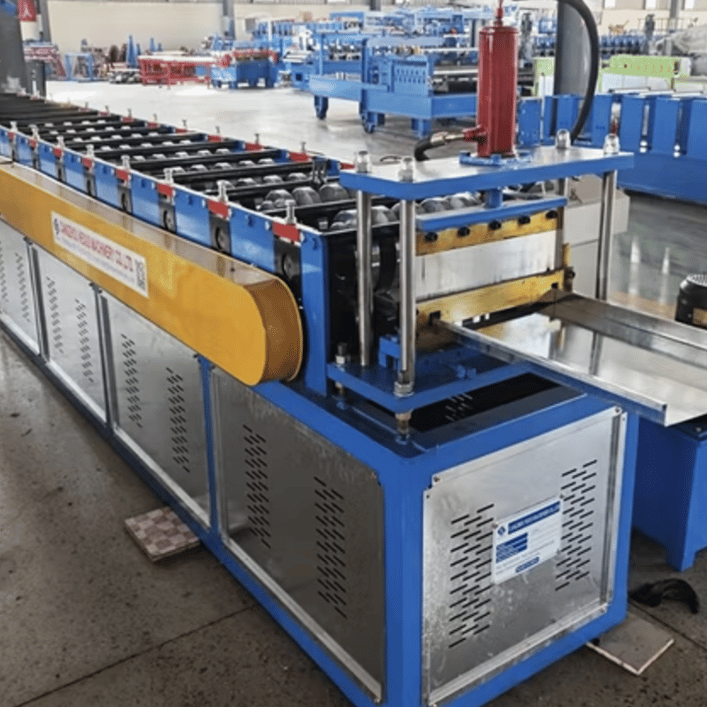

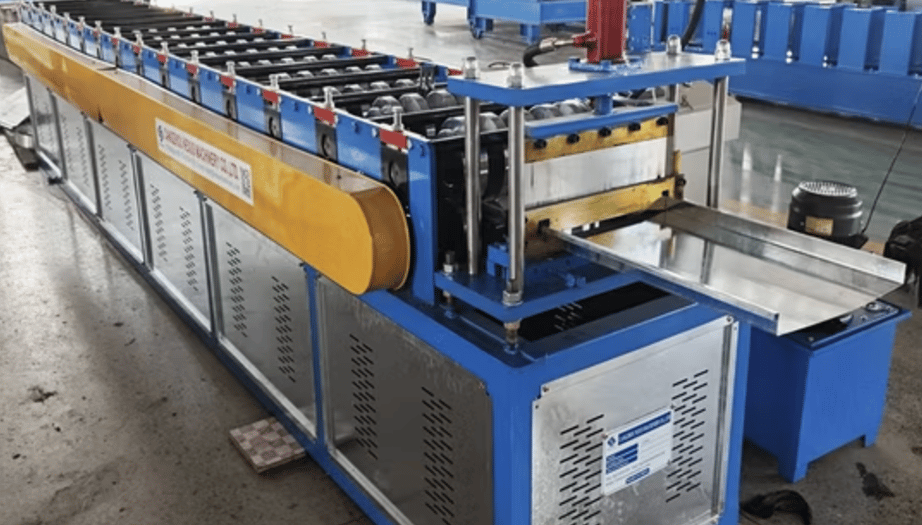

Standing Seam Roll Forming Machine in Canada

•
•
•

A Standing Seam Roll Forming Machine is a specialized equipment used to manufacture standing seam panels commonly used in roofing and cladding systems. These machines are designed to produce high-precision profiles with durable seams, ensuring watertight and weatherproof connections for architectural and industrial roofing applications. The machine is robust, efficient, and suitable for a variety of metals, making it an essential asset for roofing contractors and manufacturers.

Applications:
Standing seam panels are used extensively in:

• Residential, commercial, and industrial roofing.
• Architectural cladding systems.
• Weather-resistant facades.
• Modern green building projects.

Specifications

Here are the key specifications for a Standing Seam Roll Forming Machine:

1. Roller Materials:
   High-grade chrome-plated steel rollers for precision forming and longevity.
2. Profile Sizes:
   • Panel widths: Adjustable (12–24 inches typically).
   • Seam heights: 1 inch, 1.5 inches, or 2 inches (customizable).
3. Material Compatibility:
   • Aluminum: 0.5–1.2 mm.
   • Steel (galvanized, pre-painted): 0.4–0.9 mm.
   • Copper: 0.5–1 mm.
   • Zinc: 0.7–1.2 mm.
4. Frame and Structure:
   • Steel frame construction for vibration resistance.
   • Dimensions: Approx. 8–12 meters in length (depending on configuration).
5. Motors and Drive System:
   • Power: 5–15 kW (varies with production speed and material).
   • Servo motors for precise panel cutting and notching.
6. PLC Control System:
   • Fully automated control for panel length, cutting, and seam accuracy.
   • Touchscreen interface with multi-language support.

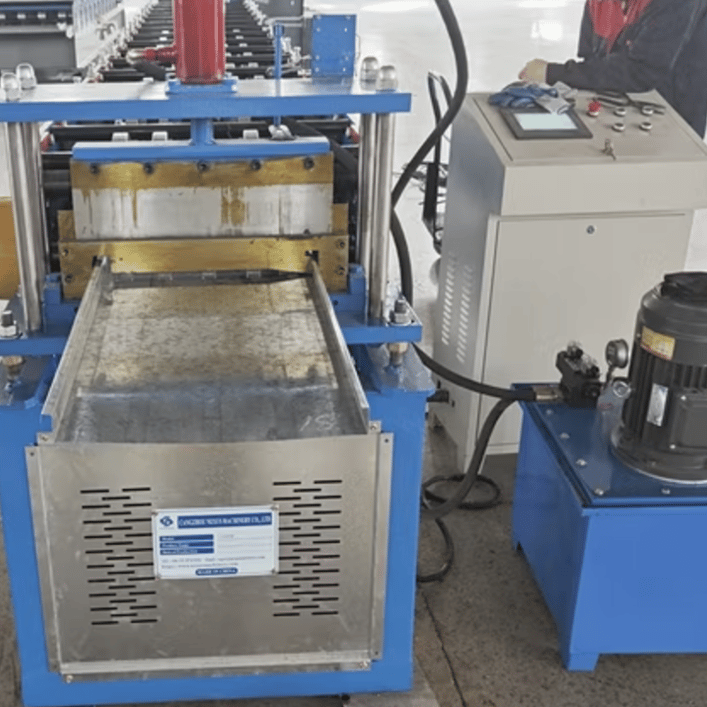

7. Cutting System:
   • Hydraulic cutting for clean, burr-free edges.
   • Cutting accuracy: ±1 mm.
8. Production Speed:
   • Standard: 10–15 meters per minute.
   • High-speed options available up to 25 meters per minute.
9. Optional Extras:
   • Automatic stackers.
   • Remote PLC systems for remote diagnostics.
   • Coil handling systems (uncoilers, recoilers, and tippers).
10. Safety Features:
    • Safety guards and enclosures.
    • Emergency stop buttons.
    • Overload protection systems.

Standing Seam Profiles

• Snap Lock Profiles: Easier installation, no need for mechanical seaming tools.
• Mechanical Lock Profiles: Require a seamer for a watertight fit, ideal for extreme weather conditions.
• Batten Cap Profiles: Provide a unique architectural aesthetic.

Setup and Installation Process

1. Prepare the foundation and install the machine as per the manual.
2. Connect power (ensure compatibility with Canadian power supply standards: 220V/60Hz or 380V/60Hz).
3. Calibrate rollers and ensure alignment for the desired profile size.
4. Load metal coils onto the uncoiler.
5. Perform trial runs and make necessary adjustments for accuracy.

Maintenance Requirements

• Daily: Clean the rollers and check for debris.
• Weekly: Inspect the cutting system and lubrication points.
• Monthly: Tighten bolts, check alignment, and inspect the electrical system.
• Annually: Perform a comprehensive inspection and replace worn parts.

Frequently Asked Questions (FAQ)

Q1: What types of metal can the machine process?
A1: The machine is compatible with galvanized steel, pre-painted steel, aluminum, copper, and zinc.

Q2: Is it suitable for Canadian weather conditions?
A2: Yes, the standing seam panels produced by this machine are highly weather-resistant, making them ideal for Canada's diverse climate.

Q3: Can it produce custom profiles?
A3: Yes, the machine can be configured to produce custom profiles based on your project requirements.

Q4: How does it compare to other roofing panel machines?
A4: The Standing Seam Roll Forming Machine offers superior seam integrity, making it more suitable for high-end architectural applications.

Q5: What is the cost of a Standing Seam Roll Forming Machine in Canada?
A5: The price ranges from CAD 50,000 to CAD 120,000, depending on customization, speed, and additional features.

Q6: What power requirements are needed for the machine in Canada?
A6: It typically requires a 380V/60Hz three-phase power supply, commonly available in industrial settings.

Q7: Is training available for operating the machine?
A7: Yes, most suppliers offer on-site training or video tutorials for proper machine operation and maintenance.

Q8: What is the lead time for delivery?
A8: Delivery typically takes 8–12 weeks, depending on customization and supplier location.

Q9: Are spare parts readily available in Canada?
A9: Most international suppliers ensure a steady supply of spare parts, and some Canadian distributors stock essential components.

Q10: Can the machine be financed?
A10: Yes, financing options are available through machinery suppliers or local financial institutions.

Conclusion

The Standing Seam Roll Forming Machine is a versatile and efficient solution for manufacturing durable roofing panels tailored to Canada's architectural and environmental needs. By investing in this machine, manufacturers can achieve high-quality output, streamline operations, and cater to a wide range of roofing projects. For more details or to request a quote, reach out to trusted suppliers in Canada.
