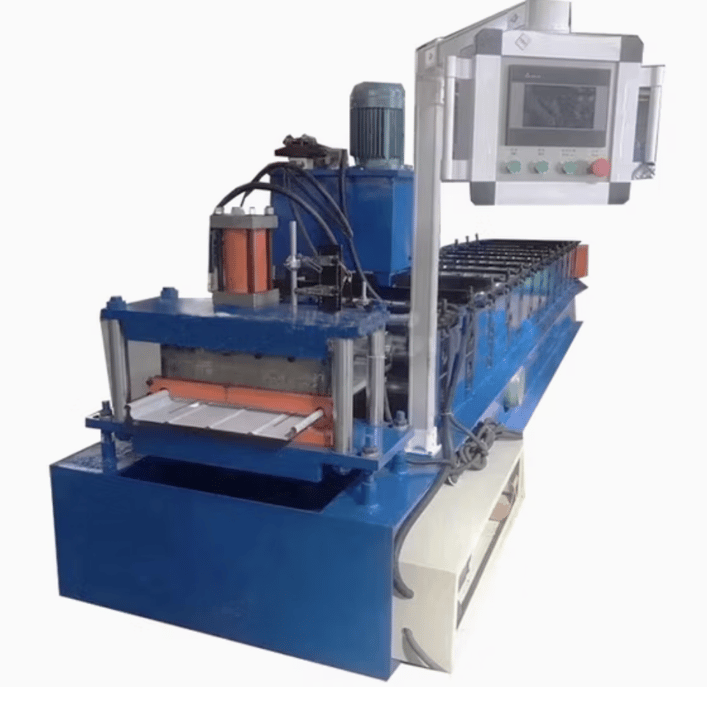

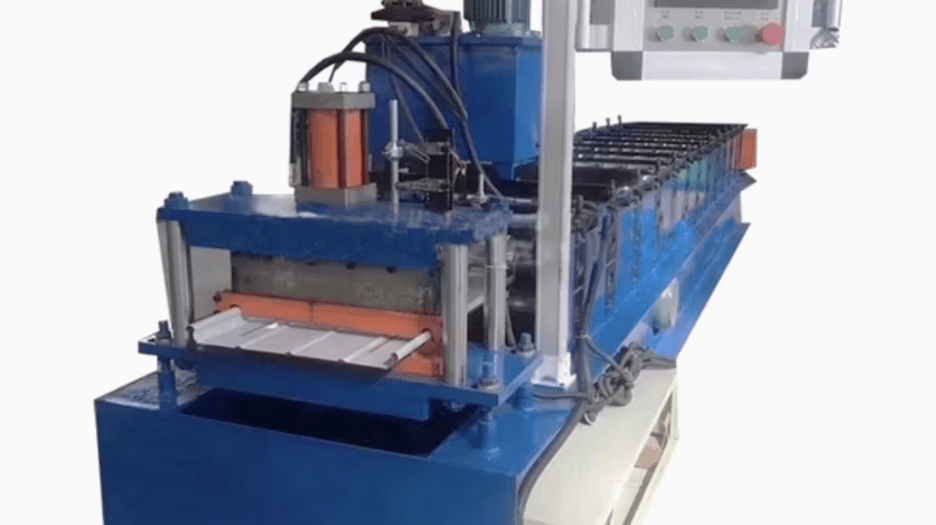

Standing Seam Roll Forming Machine in Trinidad and Tobago

A Standing Seam Roll Forming Machine is specifically designed to manufacture standing seam metal panels, commonly used in roofing applications. These machines are vital for producing high-quality, weather-resistant panels that interlock tightly without the need for exposed fasteners, offering enhanced durability, aesthetic appeal, and superior protection against leaks. This machine is equipped with advanced technology to achieve precision, speed, and customization, catering to various roofing industry needs.

Machine Description

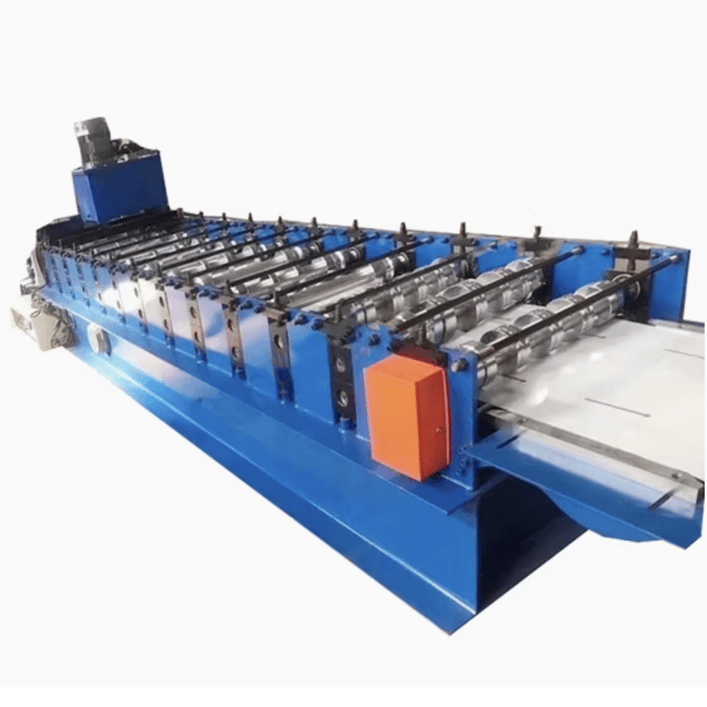

The Standing Seam Roll Forming Machine is engineered for versatility and efficiency. Built with a robust steel frame, the machine consists of multiple rollers that shape metal coils into standing seam profiles. With options for different panel widths and heights, it can produce panels that fit a variety of roofing requirements. This machine is equipped with hydraulic cutting and notching systems, as well as optional PLC (Programmable Logic Controller) units for automated operation, which enhances production accuracy and ease of use.

Key Specifications

• Roller Materials: High-quality hardened steel or chromium-coated steel, which ensures durability and precision in shaping metal.
• Frame Size: Ranges from medium to large depending on production needs; often reinforced for heavy-duty performance.
• Punching and Notching: Hydraulic punching and notching systems, which allow customization for different profiles and installation requirements.
• Motors and Drive System: Servo motors and gear-driven mechanisms provide high precision and control over the rolling process.
• PLC System: Optional, for automated operations and easy control of machine settings.
• Machine Speed: Typically operates between 10-15 meters per minute, depending on panel specifications.
• Safety Guards and Enclosures: Ensures operator safety and protection of the machine’s internal components.

Profile Description

• Materials Used: Galvanized steel, aluminum, zinc-coated steel, and copper are typical materials processed by standing seam machines, providing durability and corrosion resistance.
• Panel Width and Height: Customizable to various widths and heights, ranging from 300mm to 600mm for width and 25mm to 50mm for seam height, depending on project needs.
• Material Gauge: Typically supports gauges between 22 to 26 gauge, providing flexibility based on material strength and panel thickness.
• Market Size: Standing seam panels are widely used in both residential and commercial roofing markets.
• Industries that Use Standing Seam Panels: Primarily used in the roofing industry, particularly for high-end commercial, industrial, and residential roofing projects where longevity and aesthetics are essential.
• Popular Countries: United States, Canada, Australia, Germany, and Japan, where metal roofing is popular due to its durability, low maintenance, and energy efficiency.

Optional Extras

• Stackers: Automate the stacking process to improve production efficiency.
• Remote PLC Systems: For easier, remote control and monitoring of machine performance.
• Uncoilers and Recoilers: Manage coil feeding and recoiling for continuous production.
• Automatic Stackers and Leveling Systems: Enhance operational efficiency by automating panel handling.
• Coil Car Tippers: Aid in handling heavy coils, reducing manual labor and improving safety.

Setup and Installation

The Standing Seam Roll Forming Machine requires careful setup and calibration to ensure accurate panel production. Installation generally involves leveling the machine, connecting the power supply, calibrating rollers, and setting up the PLC system if present. Technicians typically provide on-site training and assistance to ensure that the machine operates at optimal performance.

Maintenance Requirements

Regular maintenance is essential to keep the machine in top working condition. This includes lubrication of moving parts, regular inspections of rollers and gears, and occasional recalibration of the hydraulic systems and PLC controls to maintain precision. Periodic checks on motor performance and safety systems also help prevent breakdowns and extend the machine’s lifespan.

Frequently Asked Questions (FAQ)

1. What types of materials can the Standing Seam Roll Forming Machine process?

• The machine can process a variety of materials, including galvanized steel, aluminum, zinc-coated steel, and copper. Each material provides specific benefits, such as corrosion resistance and durability, ideal for different climates and project requirements.

2. How customizable are the standing seam profiles produced by this machine?

• The machine offers high customization, with adjustable panel width, height, and material gauge. This allows manufacturers to create profiles tailored to specific architectural needs or client preferences.

3. What are the benefits of a standing seam roof compared to other roofing types?

• Standing seam roofs are known for their longevity, aesthetic appeal, and weather resistance. The interlocking design prevents leaks, and the concealed fasteners offer a sleek appearance while reducing maintenance needs.

4. What additional equipment is recommended to optimize production?

• Optional equipment such as stackers, coil car tippers, uncoilers, and automated PLC systems can significantly streamline production, reduce labor costs, and enhance operational safety.

5. How often should the machine undergo maintenance?

• Routine maintenance, including lubrication and inspection, should be performed monthly. Calibration and hydraulic checks may be done quarterly, and a comprehensive machine review is recommended annually to ensure long-term reliability.

6. Is training provided for the setup and operation of the machine?

• Yes, most suppliers offer training sessions during installation to ensure that operators understand the machine’s controls, safety features, and maintenance requirements.

7. What power requirements does the Standing Seam Roll Forming Machine have?

• Power requirements vary depending on the model and additional equipment. Standard machines typically run on three-phase 380V power, but specifications can vary by country, so it’s best to confirm with the manufacturer.

8. What is the average production speed of the machine?

• Production speed typically ranges between 10 to 15 meters per minute, although this can vary depending on material thickness, profile specifications, and machine settings.
