Standing Seam Roll Forming Machine Japan

Standing seam roofing is renowned for its durability, energy efficiency, and aesthetic appeal, making it a popular choice for residential, commercial, and industrial buildings. A standing seam roll forming machine is designed specifically for producing these roofing panels, ensuring precision, consistency, and high output. Here’s a comprehensive overview of the standing seam roll forming machine, covering its specifications, description, and common questions and answers.

Machine Description

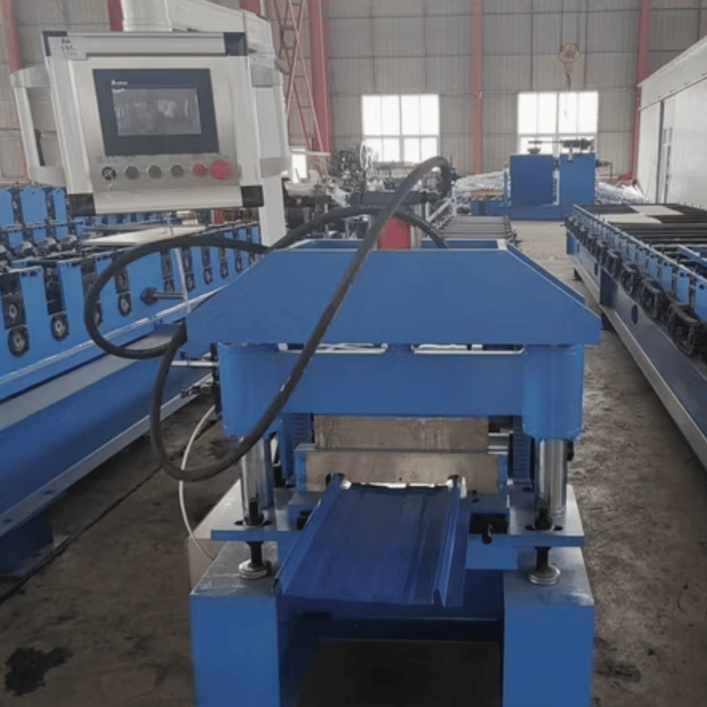

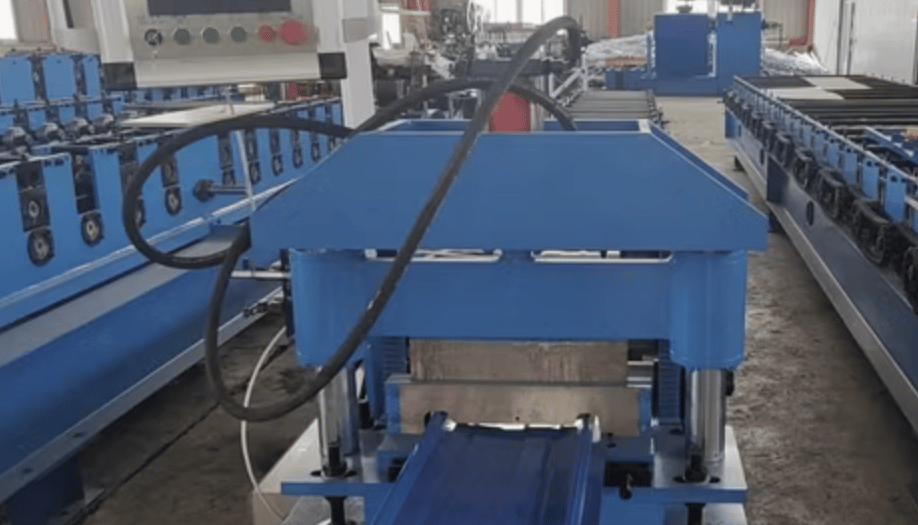

A standing seam roll forming machine is a specialized tool used to produce standing seam roofing panels, which interlock to form a secure, weather-tight seal. The machine takes flat metal sheets and forms them into the desired standing seam profile through a series of rollers. Each roller set gradually bends and shapes the metal, allowing for efficient and high-quality panel production.

Standing seam roll forming machines come in various models to suit different production capacities, panel sizes, and material types. Some machines are portable, making them suitable for on-site production, while others are larger and designed for factory settings. This flexibility makes standing seam roll forming machines valuable for roofers, contractors, and manufacturers aiming to deliver consistent panel quality.

Machine Specifications

1. Roller Materials

• Typically made from high-strength steel or chromium-coated steel to ensure durability and precision.
• Rollers are designed to produce a smooth and consistent seam, even with frequent use.

2. Frame Size

• Built with a heavy-duty steel frame for stability and durability.
• Frame sizes vary depending on machine capacity, but standard models often measure around 4-6 meters in length.

3. Motors

• High-powered electric motors, ranging from 5 kW to 15 kW, depending on production speed and material thickness.
• Optional servo motors for enhanced control and precision.

4. PLC System

• Advanced PLC (Programmable Logic Controller) system to manage and monitor production.
• Touchscreen interface for easy operation, allowing operators to set panel lengths, quantities, and speeds.

5. Machine Speed

• Standard production speed ranges between 10 and 30 meters per minute, with high-speed models reaching up to 60 meters per minute.
• Adjustable speed control based on project requirements.

6. Profile Sizes

• Available for various panel widths and seam heights, commonly ranging from 300mm to 600mm in width.
• Adjustable seam height for different project requirements, usually between 25mm to 50mm.

7. Safety Features

• Equipped with safety guards and emergency stop buttons for operator safety.
• Safety enclosures around high-risk areas to prevent accidents.

8. Hydraulic Cutting System

• Hydraulic cutters ensure smooth and precise cuts without damaging the metal.
• Cutting action is synchronized with the rollers, minimizing waste.

9. Optional Features

• Automatic Stackers: Streamline panel handling by stacking completed panels.
• Remote PLC System: Allows remote monitoring and control of the machine.
• Uncoilers and Recoilers: Handle the input and output of metal coils efficiently.
• Leveling Systems: Maintain a flat metal sheet to prevent buckling or waviness during forming.

Industries Using Standing Seam Roll Forming Machines

Standing seam roofing is commonly used in:

• Commercial Construction: Shopping centers, offices, and warehouses.
• Residential Construction: High-end homes and sustainable housing.
• Industrial Facilities: Factories and processing plants.
• Agricultural Buildings: Barns and storage units.

Key Features and Advantages

• Weather Resistance: Standing seam panels are highly weather-resistant due to their interlocking design.
• Energy Efficiency: Panels can reflect solar energy, keeping buildings cooler.
• Aesthetic Appeal: Sleek and modern appearance, suitable for various architectural styles.
• Long Lifespan: Durable material and construction allow standing seam roofs to last several decades.

Question and Answer Section

Q1: What materials can be used in a standing seam roll forming machine?

A1: Standing seam roll forming machines can process a variety of materials, including galvanized steel, aluminum, copper, and zinc, depending on the requirements. Material thickness typically ranges from 0.5mm to 1.2mm, although some machines may handle thicker metals.

Q2: How do I choose the right machine for my business?

A2: Consider your production needs, budget, and the type of projects you handle. If you need portability, look for a mobile machine; if high production volume is essential, invest in a high-speed model with advanced automation options.

Q3: Is it possible to produce different panel widths with the same machine?

A3: Yes, many standing seam roll forming machines come with adjustable roller settings to accommodate various panel widths. However, the range of adjustability may vary, so check the machine’s specifications before purchasing.

Q4: What is the maintenance requirement for a standing seam roll forming machine?

A4: Regular maintenance includes lubricating rollers, checking and adjusting the cutting blades, ensuring electrical connections are secure, and cleaning the PLC interface. Routine maintenance helps prolong the machine’s lifespan and ensures consistent panel quality.

Q5: Are there customization options for specific panel designs?

A5: Many manufacturers offer custom rollers or adjustments to create unique panel profiles or finishes. If your project requires specific panel designs, discuss customization options with the machine manufacturer.

Q6: Can standing seam roll forming machines produce both straight and tapered panels?

A6: Some advanced models are capable of producing both straight and tapered panels. Tapered panels are useful for curved or rounded roofing designs, often seen in architectural or high-end commercial projects.

Q7: What safety protocols should operators follow?

A7: Operators should wear protective gear, including gloves and eye protection, and follow the machine’s safety instructions. The machine should always be turned off and disconnected from power when performing maintenance.

Q8: How does the machine handle different seam heights?

A8: Many standing seam roll forming machines come with adjustable seam height settings. By adjusting the roller positions, operators can change the height of the seam, catering to different project requirements.

Q9: Can a standing seam roll forming machine handle perforated metal?

A9: Typically, standing seam machines are designed for solid sheets, but some models can accommodate perforated metal sheets if they meet the material thickness requirements. Check with the manufacturer if your application requires perforated metal.

Q10: What factors affect the price of a standing seam roll forming machine?

A10: Factors include the machine's production speed, automation features, material handling options (like uncoilers or stackers), and build quality. Portable machines tend to be less expensive than large industrial models with high-output capacity and advanced features.
