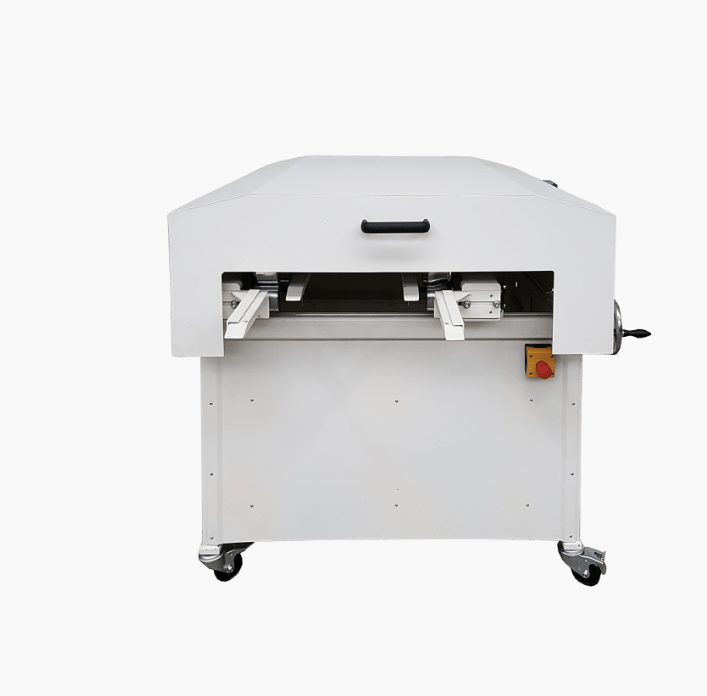

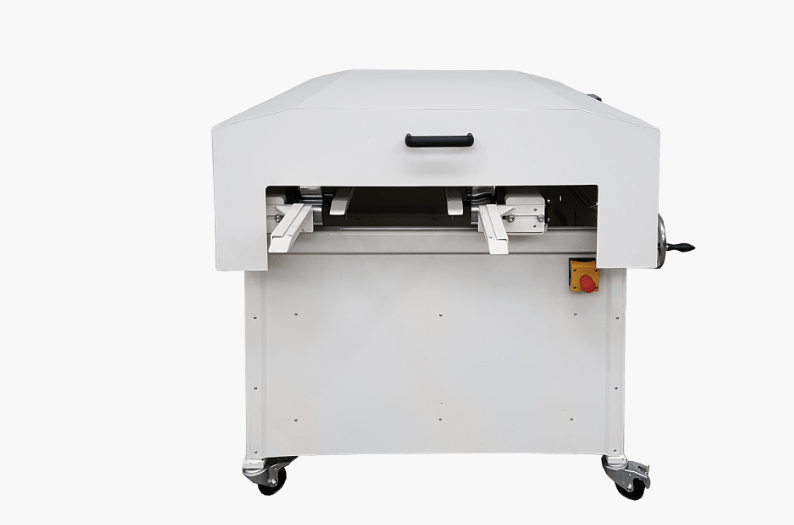

Standing Seam Roof Panel Roll Forming Machine in Pieszyce, Poland

Handy alternative for the ones who start profile forming or additional device for a professional. Continuously variable width from 230 to 750 mm.

The cut sheet metals are profile formed in parallel during single operation. Bevelled, fitted and conical plates can be prepared during one cycle. The smallest distance between axes in one cycle is 50 mm. MINI-PROFI is mobile and you can adjust its height!

Material thickness: non-ferrous metals up to 0.8 mm / steel up to 0.7 mm / high-grade stainless steel up to 0.5 mm

Width adjustment: 230-850 mm at the inlet / 160-780 mm axis

Length: 1200 mm with guides at the inlet / 900 mm with limiting devices folded

Width: 1300 mm

Height: 850-1050 mm continuously variable

Weight: approx. 220 kg

Drive: 1,1 kW, 400 V, 3-phase optional 230 V, 1-phase
