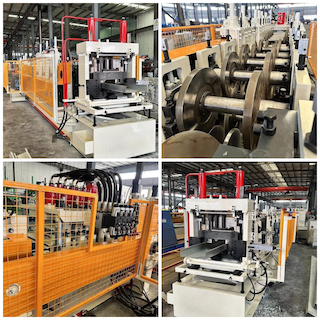

Steel Building Purlin Roll Forming Machine in Mississippi, USA

A Steel Building Purlin Roll Forming Machine is a highly versatile and efficient piece of equipment designed to produce steel purlins used in the construction of buildings, specifically for supporting roof and wall panels. These machines are widely used in the commercial and industrial construction industries in Mississippi, where steel structures are prevalent due to their durability and cost-effectiveness.

This machine can process variable profiles and materials, catering to a range of steel building applications. It operates with precision, ensuring high-quality production that meets local and international standards.

Machine Specifications

• Profile Range: 5" to 12"
• Coil Width: Variable
• Forming Speed: 50–60 feet per minute
• Material Thickness: Variable, depending on the profile and material
• Machine Weight: 15 tons
• Machine Footprint: 60 feet x 12 feet
• Main Power: 32 HP, 480V, 3-phase
• Number of Stations: 21
• Cutting Type: Hydraulic shear
• Control System: Delta PLC system
• Safety Covers: Included for operator protection

Machine Description

The Steel Building Purlin Roll Forming Machine is engineered for durability, reliability, and precision. Its robust 15-ton frame ensures stability during high-speed production, while the hydraulic shear provides clean and accurate cuts. The Delta PLC control system allows for easy operation and programming, ensuring minimal downtime and maximum productivity.

This machine’s variable coil width and material thickness capacity make it suitable for creating a wide variety of steel purlin profiles tailored to the structural needs of Mississippi's construction projects.

Profiles and Specifications

Steel building purlins created by this machine are essential components in supporting roofs and walls. Below are the profile specifications:

• Profile Range: 5" to 12"
• Coil Width: Variable to accommodate different profile dimensions
• Forming Speed: 50–60 feet per minute, ensuring efficient production
• Material Thickness: Variable, allowing customization for different load requirements

These profiles are used in applications such as:

• Commercial steel buildings
• Agricultural structures
• Residential steel roofing systems
• Industrial warehouses

Features for Mississippi-Based Operations

Mississippi's humid climate and susceptibility to severe weather events like hurricanes require high-quality steel purlins with excellent structural integrity. This roll forming machine produces purlins that can withstand extreme conditions and comply with building codes in Mississippi.

Question and Answer Section

Q1: What materials can this machine process?

A: This machine can process a wide range of materials, including galvanized steel, high-tensile steel, and other coated metals, suitable for structural applications in Mississippi.

Q2: Can the profiles be customized?

A: Yes, the machine supports variable profile dimensions, allowing customization for different structural needs.

Q3: What is the typical maintenance requirement?

A: Regular maintenance includes lubrication of rollers, inspection of hydraulic systems, cleaning the safety covers, and checking the Delta PLC system for updates or repairs.

Q4: How energy-efficient is this machine?

A: The 32 HP motor is designed for efficient operation, providing the necessary power without excessive energy consumption. It operates on 480V, 3-phase power, commonly available in industrial setups in Mississippi.

Q5: How does the machine ensure operator safety?

A: Safety covers are included, protecting operators from moving parts and ensuring compliance with OSHA standards.

Setup and Installation

• Site Preparation: The machine requires a flat surface of at least 60ft x 12ft for proper installation.
• Power Requirements: A 480V, 3-phase power supply must be available.
• Training: Operators should undergo training to handle the Delta PLC system and hydraulic shear.
• Installation Support: Onsite support is available to ensure the machine is correctly installed and calibrated for Mississippi's construction demands.

Maintenance Requirements

• Weekly Checks: Inspect rollers, lubricate moving parts, and ensure the Delta PLC system is functioning optimally.
• Monthly Checks: Evaluate hydraulic shear efficiency and replace worn components.
• Annual Servicing: Comprehensive inspection of electrical and mechanical components to ensure peak performance.
