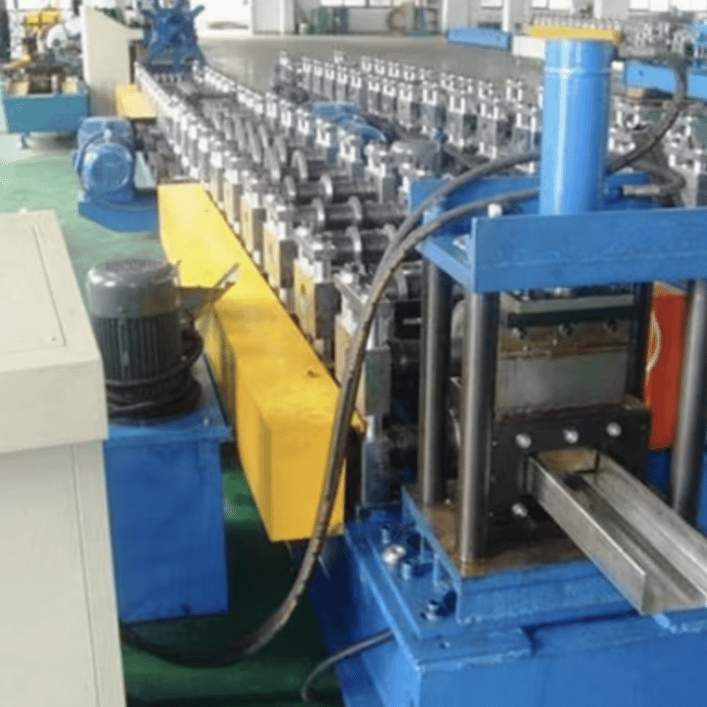

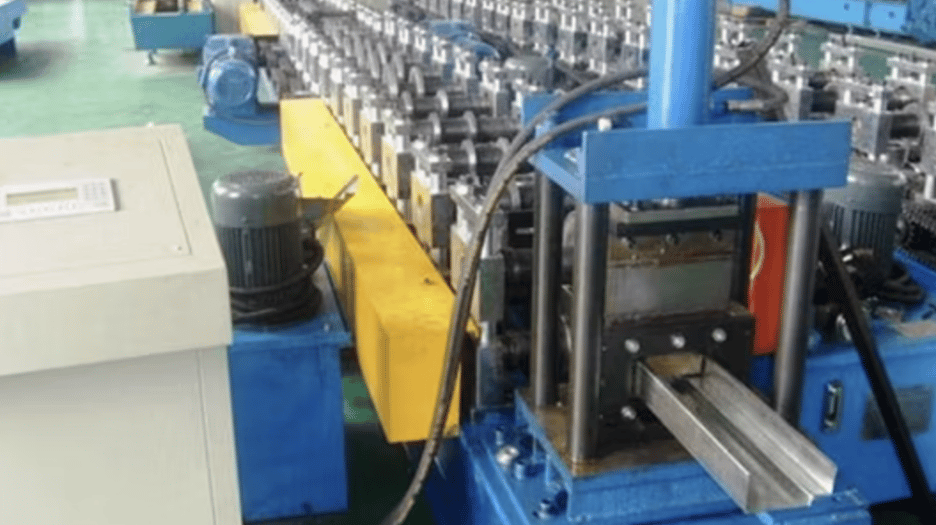

Steel Frame Roll Forming Machine Argentina

A Steel Frame Roll Forming Machine is a highly efficient, automated industrial machine designed for producing lightweight steel frames used in construction. These frames are integral to building walls, ceilings, roofs, and partitions in residential, commercial, and industrial projects. This machine offers precision engineering, high-speed production, and minimal waste, making it an ideal solution for steel frame manufacturing.

The machine processes steel coils into custom profiles, including C, U, and Z shapes, depending on the construction requirements. Equipped with a computerized PLC (Programmable Logic Controller) system, it ensures accuracy, consistency, and ease of operation. Steel frame roll forming machines are widely used in Argentina due to the growing demand for steel framing in the construction industry.

Specifications

• Material Input:
  • Steel Coil Thickness: 0.8 mm to 2.0 mm
  • Material Types: Galvanized steel, cold-rolled steel, and high-strength steel
  • Coil Width: Customized based on profile requirements
• Machine Structure:
  • Frame: Heavy-duty welded steel structure
  • Roller Material: High-grade chromium-plated steel (hardened for durability)
  • Number of Roll Stations: 10–20 (varies with profile complexity)
  • Main Shaft Diameter: 70 mm–90 mm
• Motor and Power:
  • Main Motor Power: 7.5 kW–15 kW
  • Hydraulic Motor Power: 4 kW–7.5 kW
  • Voltage: 380V/50Hz (customizable for Argentina’s power requirements)
• Production Speed:
  • 15 m/min–30 m/min (adjustable)
• Control System:
  • PLC System: Siemens/Delta with touch screen interface
  • Language Support: Multilingual (English, Spanish, etc.)
  • Encoder: Ensures precise length cutting
• Cutting System:
  • Hydraulic or Servo Cutting
  • Cutting Accuracy: ±1 mm
  • Blade Material: Cr12Mov steel (heat-treated)
• Optional Features:
  • Automatic Uncoiler and Recoiler
  • Punching and Notching Stations
  • Stacker System for Output Profiles
  • Remote Control System for Operations
• Dimensions and Weight:
  • Machine Length: 8 m–12 m
  • Machine Width: 1.5 m–2.5 m
  • Weight: 6,000 kg–10,000 kg (varies by configuration)

Steel Frame Applications in Argentina

1. Residential Construction: Prefabricated homes, wall panels, and ceiling frames.
2. Commercial Buildings: Office partitions, roofing structures, and lightweight framing.
3. Industrial Projects: Warehouse frames, storage unit supports, and factory partitions.

FAQs: Steel Frame Roll Forming Machine in Argentina

Q1: What is the production capacity of a steel frame roll forming machine?

The production capacity ranges from 15 m/min to 30 m/min, depending on the material thickness and profile complexity.

Q2: Can the machine accommodate customized profiles?

Yes, the machine is customizable to produce various profiles such as C, U, Z, and other shapes as per client specifications.

Q3: What are the power supply requirements in Argentina?

Most machines are designed for 380V/50Hz, but they can be customized to meet Argentina’s industrial power standards.

Q4: Is installation and training provided?

Yes, installation and training services are typically included. Manufacturers may offer on-site setup and operational training.

Q5: What maintenance does the machine require?

Regular lubrication of moving parts, inspection of rollers and cutting blades, and software updates for the PLC system are essential for optimal performance.

Q6: What additional features can I include in my machine?

Optional features include automated uncoilers, punching stations, stackers, and remote control systems for enhanced functionality.

Q7: How long does it take to manufacture and deliver the machine to Argentina?

Manufacturing typically takes 45–60 days, and shipping depends on the origin. On average, delivery to Argentina takes 20–30 days.

Q8: What certifications are required for importing this machine into Argentina?

Ensure the machine meets CE or ISO standards and complies with Argentina’s import regulations for industrial equipment.

Q9: What materials are compatible with the machine?

The machine can process galvanized steel, cold-rolled steel, and high-strength steel with a thickness range of 0.8 mm–2.0 mm.

Q10: What industries in Argentina benefit most from this machine?

Construction, prefabrication, and industrial manufacturing sectors are the primary users.
