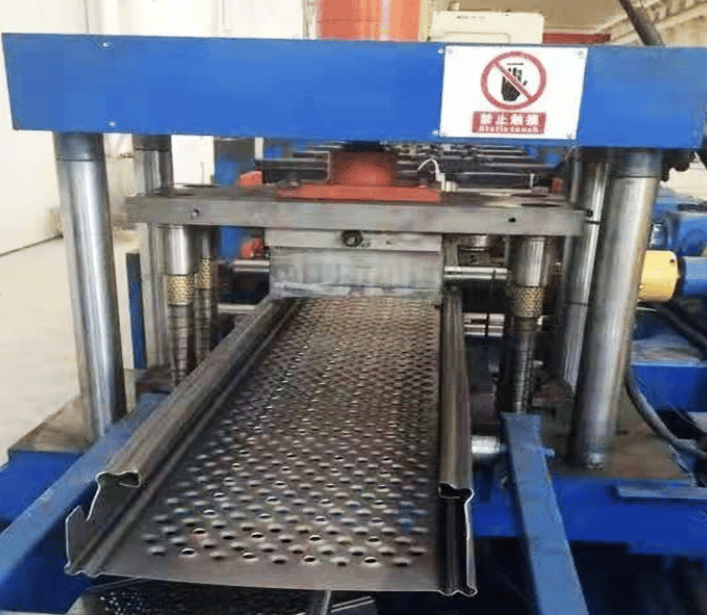

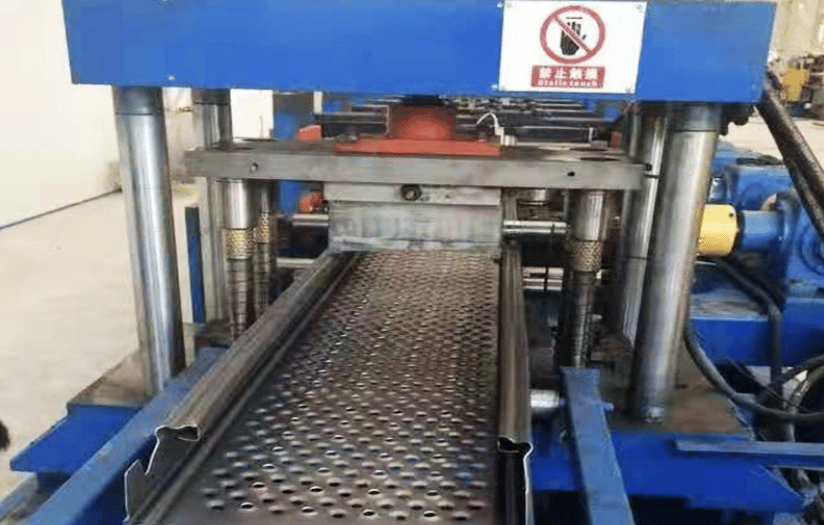

Steel Scaffold Platform Plate Roll Forming Machine in USA

1. Machine size: 26m×3m×5m(length×width×height)

2. Feeding direction: right to left

3. Power: 380V, 50Hz, 3P

4. Air source: flux 0.5m3/min; pressure: 0.7MPa

5. Hydraulic oil: 46#

6. Gear oil: 18# hypoid gear oil

7. Coil width: max 735mm

8. Coil thickness: 1.5 - 3.0 mm

9. Coil material:S235JR with yield strength 235Mpa

10. The whole roll forming machine line speed: 5-10 m/min

11. The platform length: 3000 mm

12. Total machine power:about 40KW
