Steel Sheet Pile Roll Forming Machine (8-14mm Plate, 0-15m/min) | JX Roll Forming, Wuxi, China

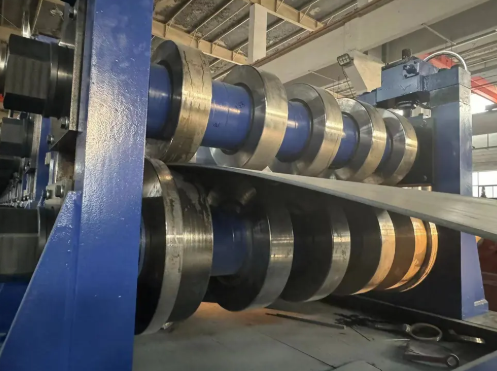

Steel Sheet Pile Roll Forming Machine

JX Roll Forming (Wuxi Jianxiang Maosheng Cold Roll Forming): Wuxi, Jiangsu, China

Complete cold roll forming line for steel sheet piles from 8 to 14mm plate, forming the interlocking edge joints that make a watertight wall, at up to 15m/min with hydraulic decoiler and PLC control.

Overview

The Steel Sheet Pile Roll Forming Machine is a specialised line for making steel sheet piles, the interlocking sections that are driven into the ground to form walls for retaining earth or water. The interlocks on both edges form watertight joints between adjacent piles.

The complete line consists of a hydraulic decoiler, the main roll forming machine, a cutting machine, an outfeed table, a hydraulic system, and a PLC control system. It works from carbon steel coil 8mm to 14mm thick, with yield strength from 250 to 550MPa. Forming speed is 0 to 15m/min, and the exact speed depends on the punching requirements.

JX says cold roll forming lowers the cost of producing sheet piles and allows flexible fixed-length control. The roll tooling is designed with COPRA software, with roller stations made from Cr12MoV tool steel, quenched to HRC 58 to 62. The stations use a cast frame structure and gearbox drive.

Why Choose Cold Roll Formed Sheet Piles?

Sheet piles are used for a wide range of retaining and foundation work. Roll forming them from coil gives a producer control over length and cost, and a single line can be re-tooled for different profiles.

• Flexible lengths. The cutter can be set to any fixed length.
• Lower production cost. JX says cold roll forming is cheaper than other methods.
• Widely used. Municipal, civil, environmental, and marine projects.
• Proven line design. JX says it has built more than 80 sheet pile lines for customers in China and abroad.
• Reliable controls. Delta PLC and Yaskawa inverter.

Machine Specifications

• Suitable material: carbon steel coil
• Material thickness: 8.0mm to 14mm
• Yield strength: 250 to 550MPa
• Tensile strength: G350 to G550MPa
• Nominal forming speed: 0 to 15m/min
• Number of forming stations: 30 (as listed; see notes)
• Decoiler: hydraulic
• PLC: Delta (Taiwan)
• Inverter: Yaskawa
• Drive system: gearbox drive
• Roller material: Cr12MoV (quenched, HRC 58 to 62)
• Station structure: cast frame structure
• Punching system: punching by press machine
• Power supply: 380V, 50Hz, 3-phase
• Machine colour: industrial blue

Line layout: decoiler → roll forming machine → cutting → outfeed table, with hydraulic system and PLC control

Stated delivery time: 85 days after contract confirmation
Condition Available: New

Key Features

• Forms sheet piles with watertight interlocking edges
• Handles 8 to 14mm carbon steel coil
• COPRA-designed rollers in Cr12MoV, quenched to HRC 58 to 62
• Delta PLC and Yaskawa inverter
• Cast frame stations with gearbox drive
• Flexible fixed-length cutting
• Installation, commissioning, and training available

Applications

• Municipal engineering: bridge foundations, port terminals, underground car parks, and subway tunnels
• Civil engineering: highways, expressways, railway and subway tunnels, and bridge foundations
• Environmental projects: landfills and foundations for solar PV power plants
• Marine engineering: docks, coastal works, undersea tunnels, and partition walls

Who This Machine Is For

• Sheet pile manufacturers looking to produce cold-formed piles
• Steel fabricators expanding into foundation and retaining products
• Producers serving civil, marine, and infrastructure markets

Frequently Asked Questions

What thicknesses can it handle?
Carbon steel coil from 8mm to 14mm thick.

How fast does it run?
0 to 15m/min, depending on the punching requirements.

What is the delivery time?
JX states 85 days after contract confirmation.

How experienced is JX with sheet pile lines?
JX says it has built and sold more than 80 sheet pile roll forming lines in China and worldwide.

What controls does it use?
A Delta PLC and a Yaskawa inverter.

What is included?
A hydraulic decoiler, roll forming section, cutting machine, outfeed table, hydraulic system, and PLC control.

What support is offered?
Installation, commissioning, operator training, and after-sales support, with an engineer sent to your factory on request.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This line is available new, built to your profile.
