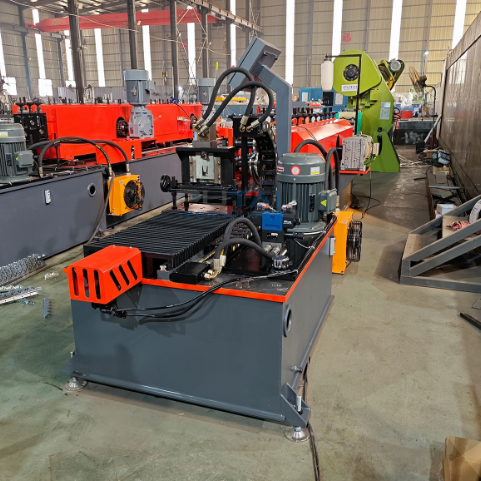

PUTAI Suspension Ceiling Carrier Roll Forming Machine – Carrier Production Line for Metal Ceiling Systems

The PUTAI ceiling carrier roll forming machine is an automatic cold roll forming line for producing the carriers that form the primary support grid in suspended metal ceiling systems. Carriers are fixed to the ceiling hangers and hold the ceiling panels in place, making them the backbone of linear strip ceilings, U baffle ceilings, clip-in metal tiles and gypsum board ceilings. The line forms 0.8–1 mm galvanized or pre-painted steel through 10 stations and cuts each carrier to length with a servo tracking cutter, giving metal ceiling manufacturers a reliable in-house supply of matching support profiles.

What Is a Ceiling Carrier?

• The main support rail of a suspended metal ceiling, hung from the structure by hangers or rods
• Holds ceiling panels, strips or baffles in position at the correct spacing
• Must be straight and dimensionally accurate so panels clip in cleanly and sit level
• Made in different profiles to match the ceiling system it supports

Ceiling Systems Supported by Carriers

• Linear strip ceilings
• U baffle ceilings
• Clip-in metal ceiling tiles
• Gypsum board ceiling systems

Key Features

• Dedicated line for accurate, consistent ceiling carrier profiles
• Forms 0.8–1 mm galvanized and pre-painted steel
• 10 forming stations with forged Cr12 rollers
• Servo tracking cutting system cuts to length on the move
• Length set by encoder counting or photoelectric detection of punched holes
• Gearbox drive for stable, accurate running with low maintenance
• Archway roller stands with graduated adjusting nuts for quick, repeatable setup
• Welded plate frame with heat-treated, polished and hard-plated rollers
• Hydraulic cylinders and pumps in national standard sizes, easy to replace worldwide

Technical Specifications

• Product: Ceiling carrier profiles
• Material: Galvanized steel (GI), pre-painted steel (PPGI)
• Material thickness: 0.8 – 1.0 mm
• Forming stations: 10
• Roller material: Cr12 (D3), forged
• Shaft diameter: 50 mm
• Shaft material: 45# steel, forged
• Speed: 10 – 15 m/min
• Transmission: Gear drive
• Cutting system: Servo tracking cut-off
• Machine weight: Approx. 3,500 kg

Line Components

• Uncoiler: Holds the steel coil and feeds it into the line
• Entry guide: Positions the strip accurately before forming
• Main roll former: Welded plate frame, motor reducer and gearbox drive, with heat-treated, polished and hard-plated rollers
• Hydraulic station: Standard-size cylinders and pumps for easy maintenance anywhere
• Servo tracking cutter: Measures and cuts each carrier while the line keeps running
• Collection table: Receives finished carriers for bundling

Applications

• Shopping malls, airports and metro stations
• Office buildings and commercial interiors
• Hospitals, schools and public buildings
• Any project using linear, baffle or clip-in metal ceilings

Related PUTAI Ceiling Machines

• Linear strip ceiling panel roll forming machine
• U baffle ceiling roll forming machine
• Ceiling T grid roll forming machine
• Triangle spring tee roll forming machine

Commercial Details

• Brand: PUTAI Technology
• Place of origin: Tianjin, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Plastic film wrap for export
• Delivery time: 60 days
• Warranty: One year
• After-sales: Engineer support provided

Frequently Asked Questions

• What is a ceiling carrier used for? It is the main support rail in a suspended metal ceiling, holding linear strips, baffles or clip-in tiles at the right spacing and level.
• What material and thickness does the machine form? Galvanized and pre-painted steel from 0.8 to 1.0 mm.
• How fast does it run? 10–15 m/min.
• Does the line stop to cut? No. The servo tracking cutter cuts each carrier to length while the line keeps running.
• Can PUTAI supply the matching panel machine too? Yes. PUTAI also builds linear strip, U baffle, T grid and spring tee machines, so manufacturers can source a complete ceiling system line from one supplier.
• How long is delivery? Around 60 days.
• What should I send for a quotation? Your carrier profile drawing or sample, the ceiling system it supports, clip spacing, material thickness, required output, and local voltage and frequency.
