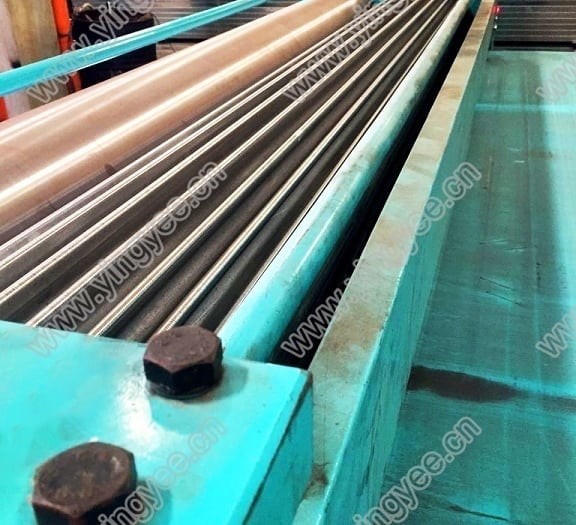

Transverse Thin Barrel Corrugated Sheet Machine in China

Working Range:

Thickness:0.14 - 0.3 mm

Sheet width : 750--1000 mm

Sheet length : 3900mm

Pitch : 76mm (+/- 2.0mm)

Depth : 18mm(+/- 1.5mm) .

Galvanized G250 - G550

Galvalume G250 - G550

Working Process:

• Feeding speed: 10-12 times feeding/min
• Feeding Thickness: each time feeding less than 0.4mm

3)The capacity:2-4tons/hours

Machine technical specification:

1)Main motor power: 7.5-11KW（According to the length of finished product）

2)Dimension: According to the length of finished product

3)Machine weight: Approx 8.1 tons

Principle

The corrugated tile forming machine is mainly composed of drive motor, reducer, transmission system, forming roller, flat roller, automatic feeding platform and electrical control cabinet. The machine adopts low speed, high torque, low inertia AC motor with a v belt drive to the hardened reducer with double output shaft，to achieve the purpose of transmission and deceleration. The automatic feeding of the working roller is always carried out by the timing chain and the linear guide rail，thus ensuring the stability of the product.

The main configuration

1、The whole equipment includes base, frame, forming roll, smooth roll, motor, reducer etc.

2、The equipment base is welded by H steel,250×200

3、The equipment frame is welded by steel plates

4、The forming roller gear design: To ensure the shape of the roofing sheet according to the standard of JIS G3316 .

Forming roller, smooth roller (each 2 pc) . Effective working Length= 3900 mm.

Material of the forming roller is made of 20# steel and 45# steel, and is integrally machined.

The smooth roll material is Q235

5、Drive motor Y2-180-8 XIM Siemens motor (China) = 15KW power of = 700 RPM

6、Speed reduction machine product by manufacturer ourself homemade ,reduction ratio = 40:1

7、Universal shaft coupling: SWC-165-680
