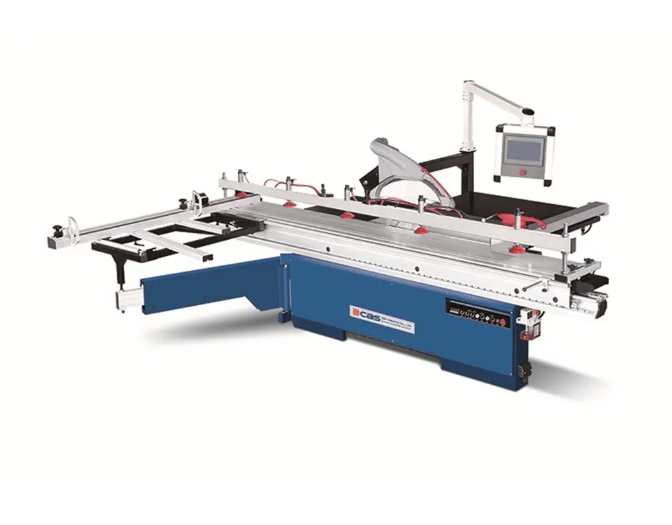

TSC-3000C CNC Sliding Table Saw for Aluminium Formwork C Panels | CGMA, Jinan, China

The TSC-3000C is a sliding table saw for slitting aluminium formwork panels, mainly C panels, at 90 degrees or at variable angles. It uses a European-style precision sliding table saw with a heavy-duty motor and machine body.

The main saw blade tilts from 45° to 90°, and the angle setting is shown on a digital display for accurate, simple operation. A CNC-controlled movable stopper at the back of the machine makes setting the cut size easier and more accurate. The movable table carries pneumatic clamps along its full 3-metre length, which hold the panel safely and reliably during the cut, and a dust collector keeps the working area cleaner.

A scoring saw blade works alongside the main blade, which is a feature normally used to keep the cut edge clean. The maximum cutting length is 3,000mm, and the machine handles cutting heights of 130mm at 90° and 90mm at 45°.

Why Choose a Sliding Table Saw for Formwork Panels?

C panels are long, and slitting them along their length needs a machine that holds the panel firmly and moves it accurately past the blade. A sliding table saw is built for that.

• Long, secure clamping. Pneumatic clamps run along 3 metres of table, so long panels are held safely.
• Accurate sizing. A CNC-controlled rear stopper sets the cut size precisely.
• Variable angles. The blade tilts from 45° to 90° with a digital angle display.
• Heavy-duty build. A heavy-duty motor and machine body handle aluminium formwork sections.
• Cleaner workshop. A dust collector is included.

Machine Specifications

• Input voltage: 3-phase, 380V, 50Hz
• Main power: 5.5kW
• Main saw blade speed: 4,000 rpm
• Scoring saw blade speed: 800 rpm
• Main saw blade diameter: 400mm
• Scoring blade diameter: 120mm
• Main saw spindle diameter: 30mm
• Scoring spindle diameter: 20mm
• Maximum cutting length: 3,000mm
• Maximum cutting height: 130mm at 90°, 90mm at 45°
• Main saw blade tilting angle: 45° to 90°
• Overall dimensions (L × W × H): 3,250 × 3,630 × 900mm
• Weight: approx. 980kg

Condition Available: New

Key Features

• European-style precision sliding table saw with heavy-duty motor and machine body
• Blade tilts from 45° to 90° with digital angle display
• CNC-controlled movable stopper on the back side for accurate size setting
• Movable table with 3-metre pneumatic clamps
• Scoring saw blade alongside the main blade
• Dust collector included

Applications

• Slitting aluminium formwork C panels at 90°
• Slitting C panels at variable angles up to 45°
• Cutting aluminium formwork panels to width

Who This Machine Is For

• Aluminium formwork manufacturers
• Formwork system producers who cut panels to width in-house
• Workshops that need angled as well as straight panel cuts

Frequently Asked Questions

What is this machine used for?
Slitting aluminium formwork panels, mainly C panels, at 90° or at a variable angle.

What angles can it cut?
The main blade tilts from 45° to 90°, and the setting is shown on a digital display.

How long a panel can it cut?
Up to 3,000mm.

How thick a section can it cut?
The maximum cutting height is 130mm at 90° and 90mm at 45°.

How is the cut size set?
A CNC-controlled movable stopper at the back of the machine sets the size.

How are panels held?
The movable table has pneumatic clamps along its 3-metre length.

What power does it need?
3-phase 380V, 50Hz, with 5.5kW of main power.

How big and heavy is it?
It measures 3,250 × 3,630 × 900mm and weighs about 980kg.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer with 23 years of experience in aluminium processing machinery.
