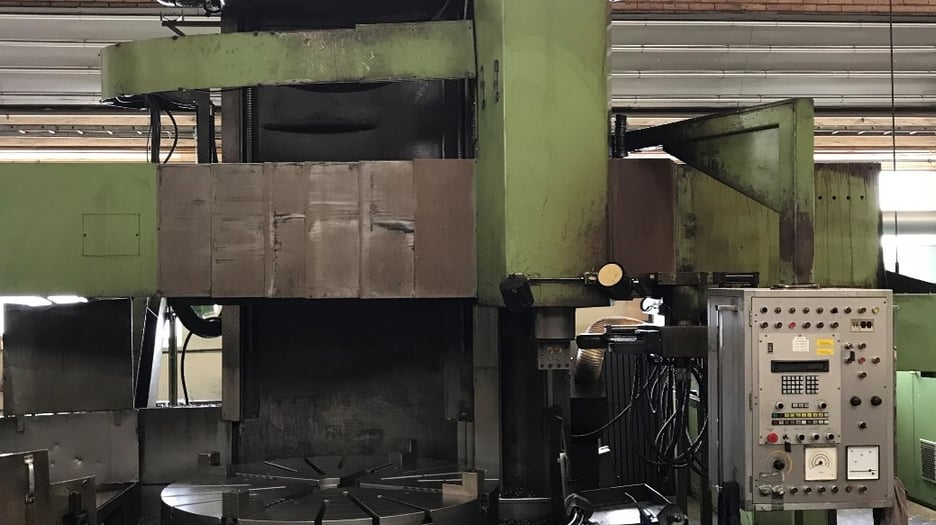

Used Dörries CTE 160 CNC Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

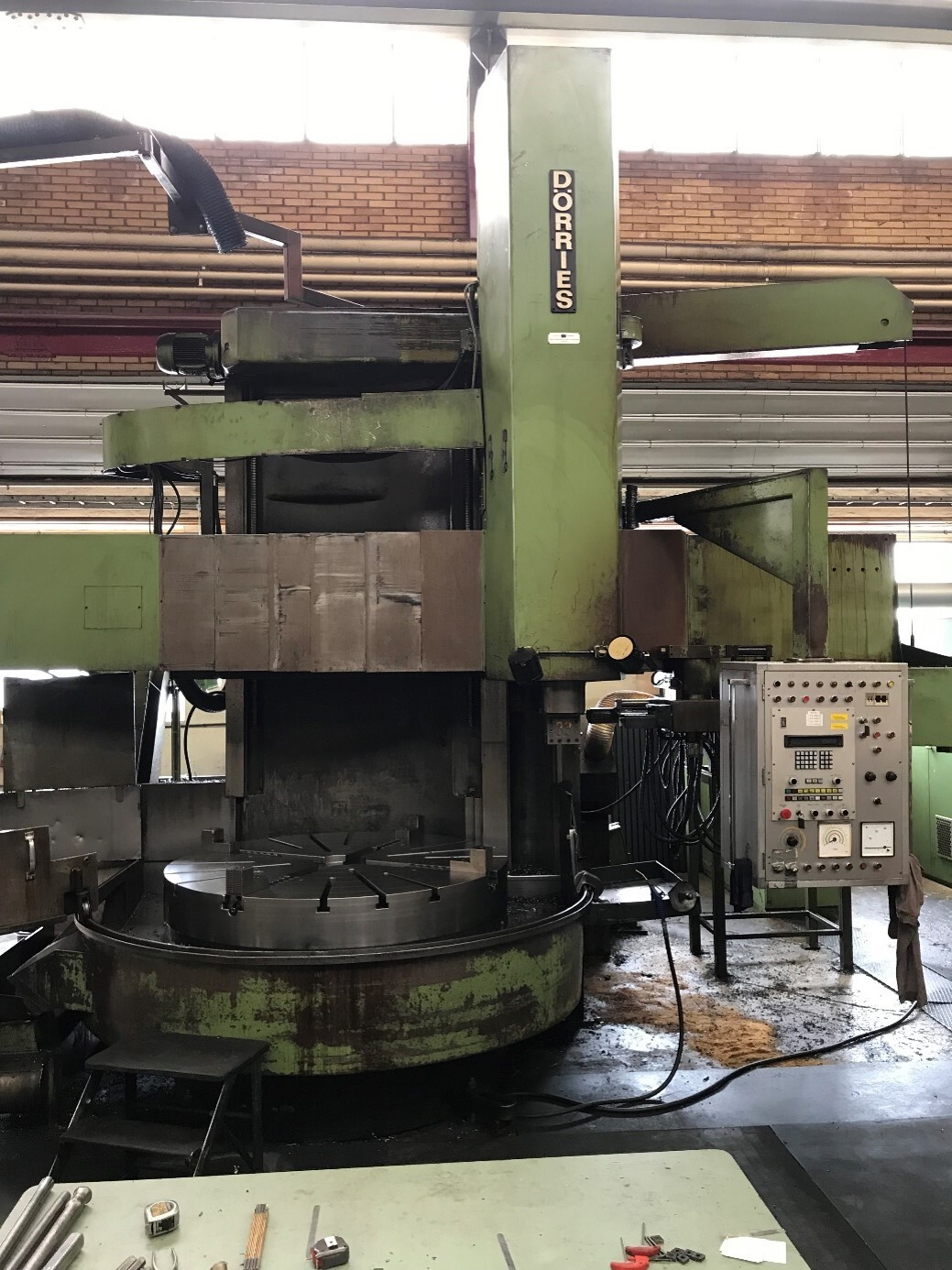

This used Dörries CTE 160 CNC vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. It turns large, heavy workpieces held flat on a horizontal rotating faceplate.

It has a 1,600 mm faceplate, a swing of 1,800 mm and a turning height of 1,500 mm. The main drive is 85 kW, faceplate speed runs from 0 to 200 U/min, and the maximum workpiece weight is 8,000 kg.

Key Features

• CNC control
• Maximum ram stroke of 1,200 mm

Technical Specifications

• Model: CTE 160
• Control: CNC

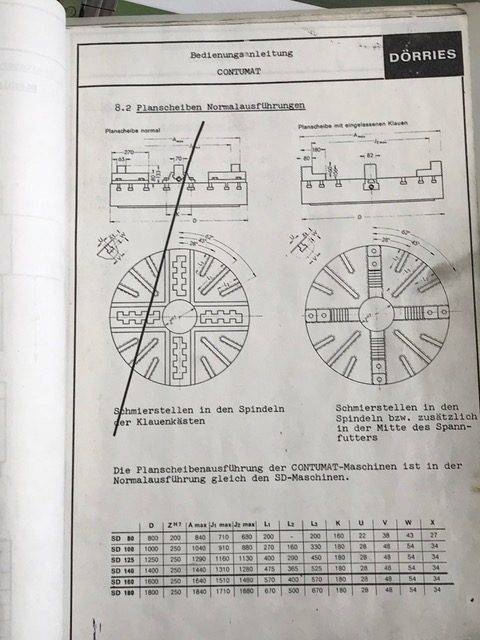

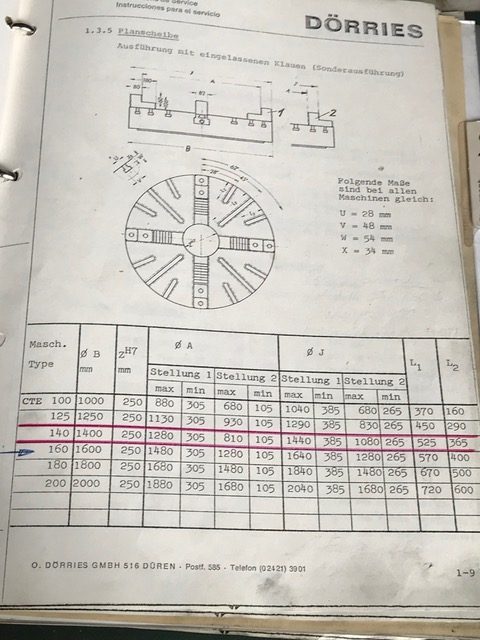

• Faceplate diameter: 1,600 mm
• Swing diameter: 1,800 mm
• Turning height: 1,500 mm
• Max. ram stroke: 1,200 mm
• Faceplate speed range: 0–200 U/min
• Main drive motor: 85 kW
• Max. workpiece weight: 8,000 kg
• Machine weight: approx. 25 t
• Machine dimensions: approx. 8.4 x 4.5 x 5.3 m

Applications

• Large turned discs, rings and flanges
• Heavy housings and casings
• Large wheels and hubs
• Heavy engineering and general machine shop components

Commercial Details

• Make: Dörries
• Model: CTE 160
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpiece can it take? It has a 1,600 mm faceplate, 1,800 mm swing, 1,500 mm turning height and a maximum workpiece weight of 8,000 kg.
• How is it controlled? It is a CNC machine with an 85 kW main drive motor and a faceplate speed of 0–200 U/min.

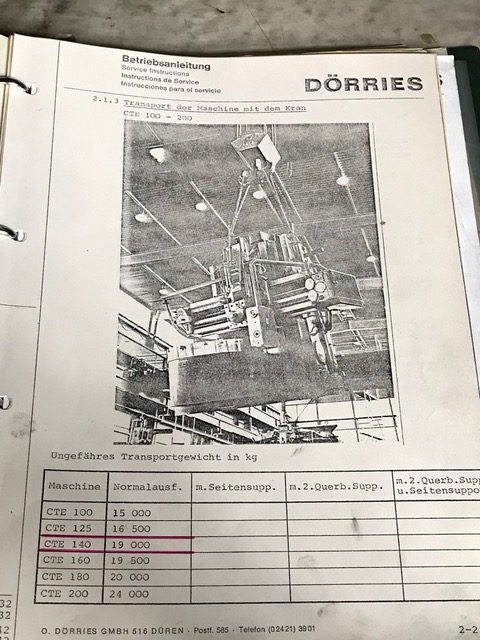

• How big and heavy is the machine itself? It weighs approximately 25 t and measures approximately 8.4 x 4.5 x 5.3 m.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling, chucks and accessories are included, the condition of the CNC control and electrics, and the loading and shipping arrangements for a machine of about 25 t.
