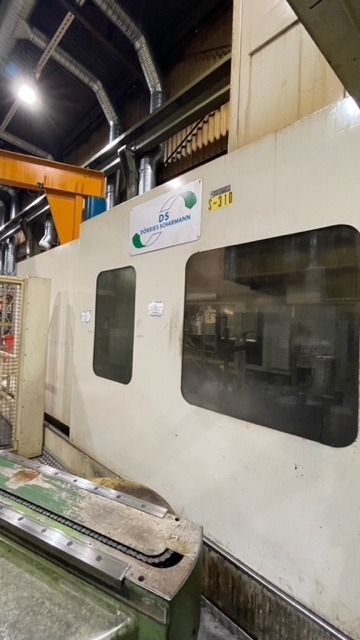

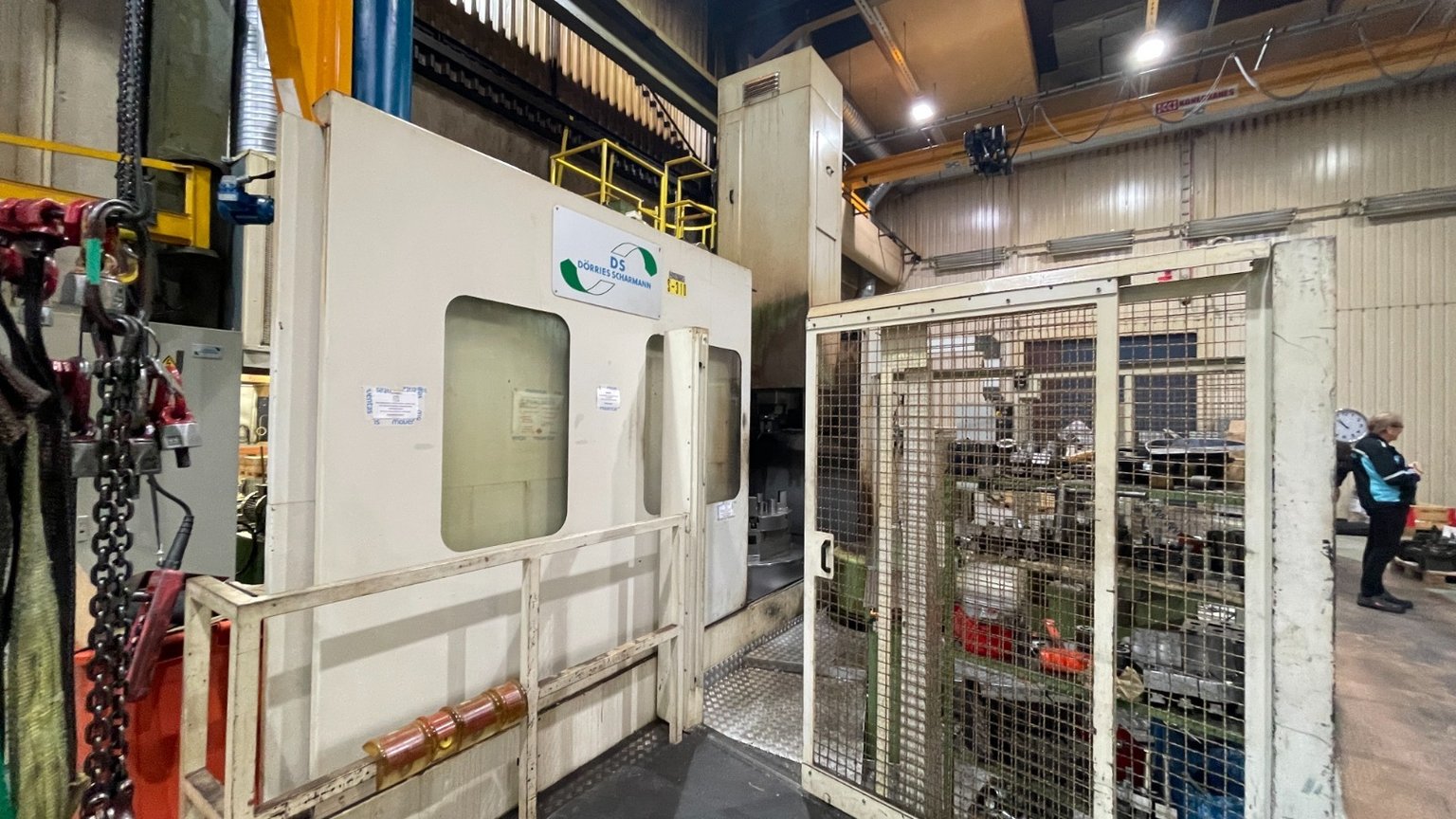

Used Dörries Scharmann VCE 1400/100 MC FC CNC VTL | A.K. Machine Traders, Navi Mumbai, India

This used Dörries Scharmann VCE 1400/100 MC FC CNC vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. A vertical turret lathe turns large, heavy workpieces on a horizontal rotating table.

It has a 1,000 mm table, a 1,400 mm swing and a working height of 1,350 mm, and takes workpieces up to 5,000 kg. It is controlled by a Siemens Sinumerik 840C CNC and is fitted with a C axis, an SK50 tool interface and a grinding attachment.

Key Features

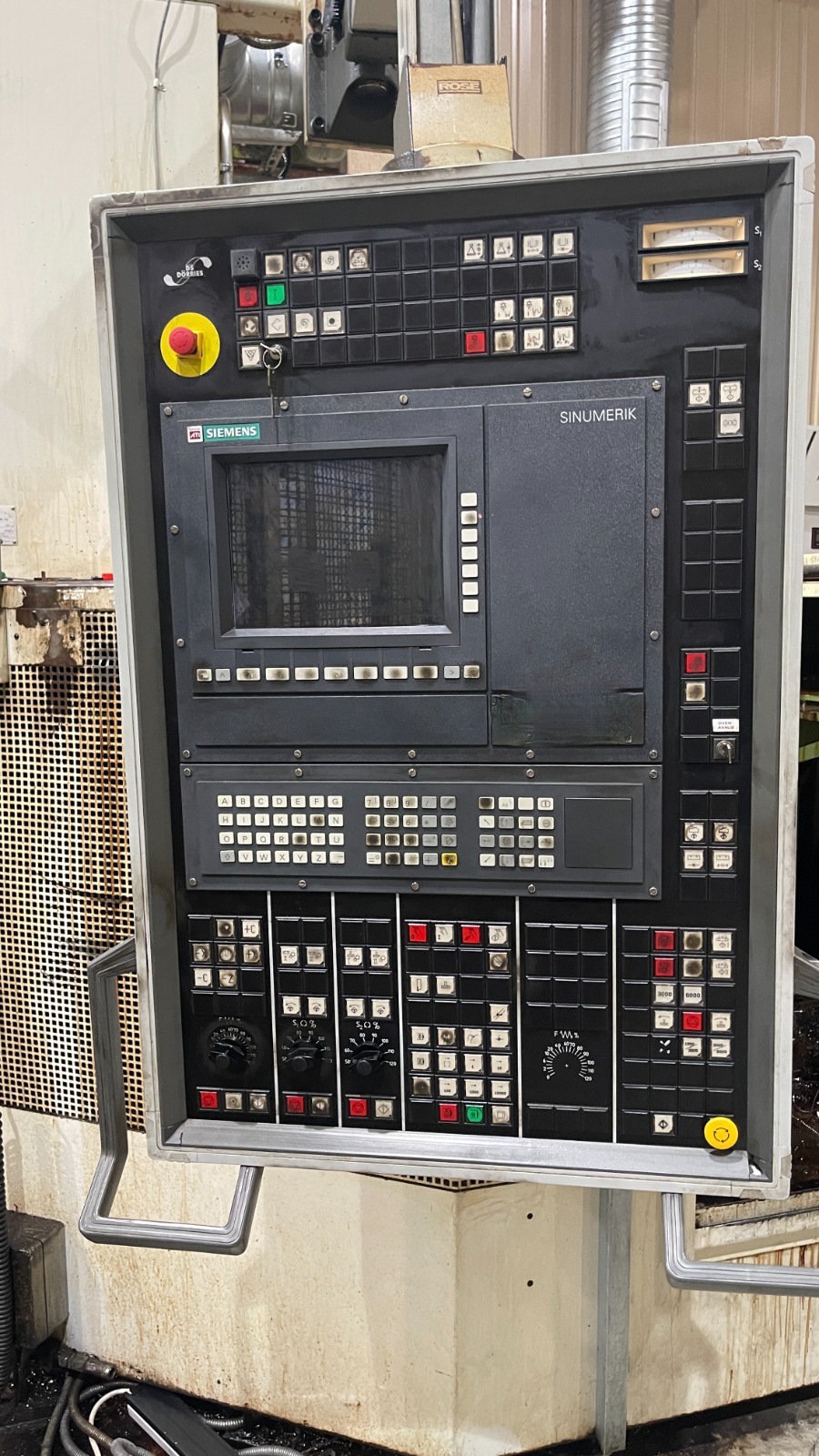

• Siemens Sinumerik 840C CNC control
• C axis
• SK50 tool interface

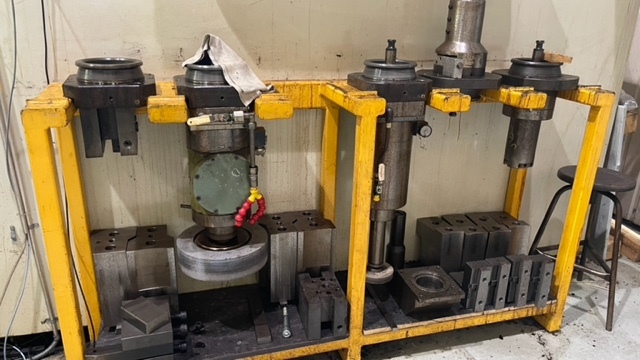

• Grinding attachment

Technical Specifications

• Model: VCE 1400/100 MC FC
• CNC control: Siemens Sinumerik 840C

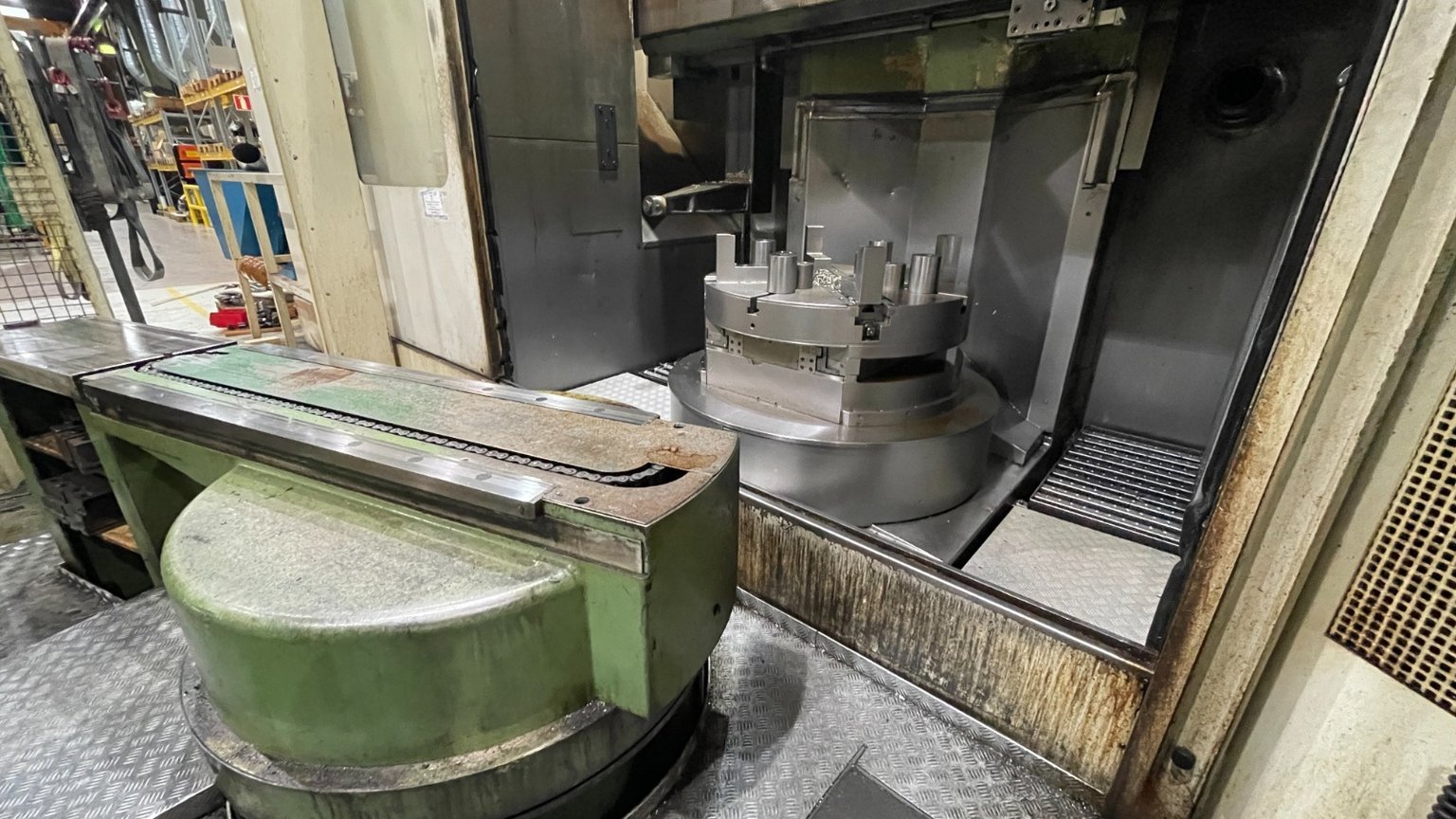

• Table diameter: 1,000 mm
• Swing diameter: 1,400 mm
• Working height: 1,350 mm
• Maximum workpiece weight: 5,000 kg
• C axis: Yes

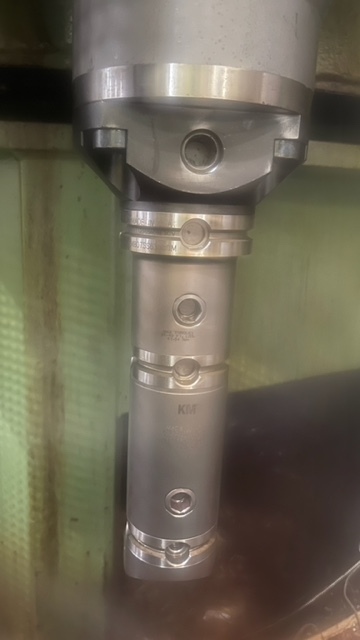

• Tool interface: SK50
• Grinding attachment: Yes

Applications

• Turning large, heavy round components
• Machining discs, flanges and rings
• Machining housings and wheels for heavy engineering
• Combined turning and grinding of workpieces

Commercial Details

• Make: Dörries Scharmann
• Model: VCE 1400/100 MC FC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece this lathe can take? It has a swing diameter of 1,400 mm, a working height of 1,350 mm and takes workpieces up to 5,000 kg.
• What control does it use? It uses a Siemens Sinumerik 840C CNC control and has a C axis.
• Does it include a grinding attachment? Yes, it is fitted with a grinding attachment.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, which tooling, tool holders and the grinding attachment are included, the condition of the Siemens 840C control and electrics, and the loading and shipping arrangements.
