PUTAI W Angle Roll Forming Machine – Shadow Line Wall Angle for Suspended Ceiling Perimeters

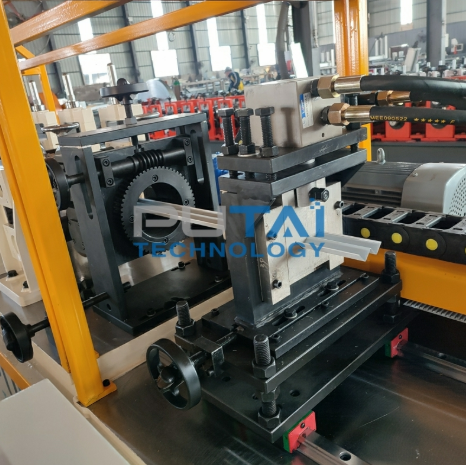

The PUTAI W angle roll forming machine produces the stepped perimeter trim that finishes the edge of a suspended ceiling where it meets the wall. The W angle's stepped profile creates a neat reveal, or shadow line, between ceiling and wall, giving a sharp, modern finish while hiding small imperfections in the wall surface. The machine forms 0.4–0.6 mm steel through 12 stations with Cr12 rollers and cuts each length with a servo cutting system, with delivery in around 35 days.

What Is a W Angle?

• A stepped wall angle fixed around the ceiling perimeter, supporting the edge of the ceiling grid or panels
• Its W-shaped profile creates a recessed shadow line between wall and ceiling
• Hides uneven walls and small gaps that a standard L angle would show
• Also known as shadow line wall angle, reveal wall angle, stepped wall angle or shadow trim
• Part of the drywall and suspended ceiling system, fixed directly to the wall

Why Contractors Specify W Angle

• A cleaner, more architectural edge than a plain L angle
• Masks out-of-level or uneven walls
• Premium look for offices, hotels and retail interiors
• Works with lay-in tile ceilings and plasterboard ceilings

Key Features

• Dedicated tooling for accurate W angle profiles
• 12 forming stations with Cr12 rollers for clean, crisp steps and edges
• Forms 0.4–0.6 mm steel
• Servo cutting system for precise, repeatable lengths
• Cr12 cutting blades for clean cuts and long blade life
• Gearbox drive for accurate, low-maintenance running
• Graduated adjusting nuts for precise, repeatable roller setup
• Fast 35-day delivery

Technical Specifications

• Product: W angle, shadow line wall angle
• Material: Steel coil
• Material thickness: 0.4 – 0.6 mm
• Forming stations: 12
• Roller material: Cr12 (D3)
• Shaft material: 45# steel, forged
• Transmission: Gearbox
• Cutting system: Servo cutting
• Cutting blade material: Cr12

Applications

• Suspended ceiling perimeters in offices and commercial buildings
• Hotels, retail and hospitality interiors
• Schools, hospitals and public buildings
• Drywall ceilings requiring a clean shadow line finish

Related PUTAI Ceiling Machines

• Ceiling T grid roll forming machine
• Perforated corner bead roll forming machine, which also produces perforated wall angles
• Furring channel and omega profile roll forming machines

Commercial Details

• Brand: PUTAI Technology
• Company: Tianjin PUTAI Technology Co., Ltd
• Place of origin: Tianjin, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Standard waterproof export packaging
• Delivery time: 35 days
• After-sales: Engineer support provided

Frequently Asked Questions

• Where is this machine made? It's listed by PUTAI as made in Tianjin, China, and is exported worldwide.
• What is a W angle used for? It trims the ceiling perimeter where the ceiling meets the wall, creating a shadow line and hiding wall imperfections.
• How is a W angle different from an L angle? An L angle gives a plain edge, while a W angle has a stepped profile that creates a recessed shadow line for a more refined finish.
• What thickness does the machine form? Steel from 0.4 to 0.6 mm.
• How long is delivery? Around 35 days.
• What should I send for a quotation? Your W angle profile drawing or sample, thickness, material type, target output, and local voltage and frequency.
