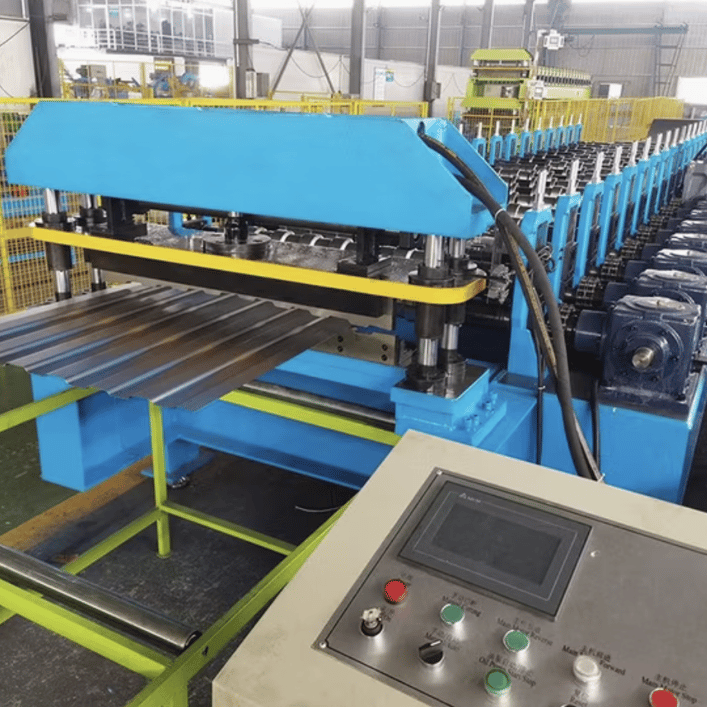

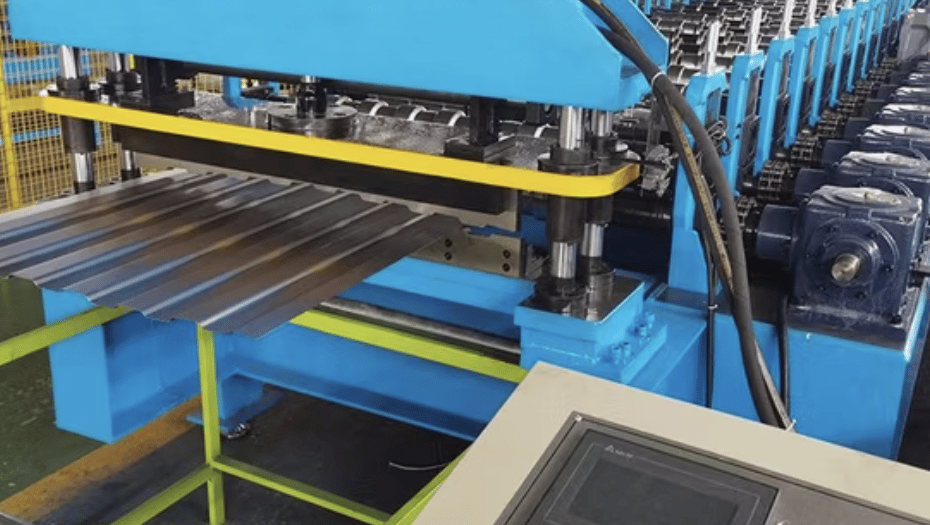

Wall Panel Roll Forming Machine Philippines

•
•
•

The Wall Panel Roll Forming Machine is a highly efficient and versatile solution for producing high-quality wall panel profiles used in residential, commercial, and industrial construction. These machines are designed to handle various materials, including galvanized steel, aluminum, and pre-painted steel, to create wall panels with precise dimensions and consistent quality. Equipped with advanced technology, these machines can produce a wide range of wall panel profiles to meet diverse customer needs.

The machine operates with a fully automated system controlled by a PLC, ensuring high-speed production and minimal human intervention. Its robust construction and precise engineering make it ideal for large-scale production and custom requirements.

Specifications

1. Roller Materials:

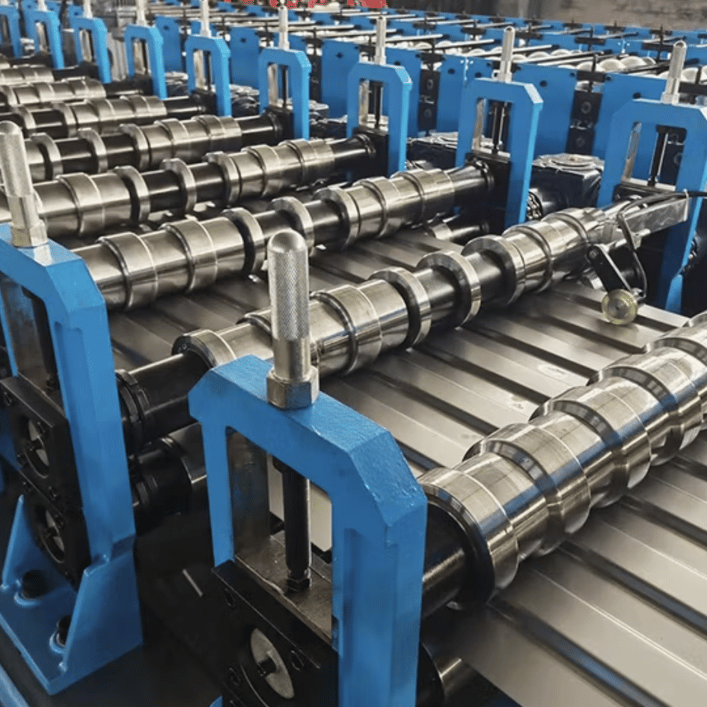

   • High-grade chrome-coated steel rollers for durability and smooth profile formation.
   • Heat-treated for long life and resistance to wear.
2. Frame Size:
   • Heavy-duty steel structure with precise alignment for stability during operation.
   • Frame thickness: 18-20 mm for robust performance.
3. Punching and Notching System:
   • Hydraulic punching and notching integrated for accuracy.
   • Adjustable to suit different profile designs.
4. Motor and Power:
   • Main drive motor: 5-15 kW (varies based on the machine model).
   • Servo motors for precision cutting and punching.
5. Cutting System:
   • Hydraulic cutting mechanism for clean and burr-free cuts.
   • Cutting blades made of high-strength steel.
6. PLC Control System:
   • Advanced PLC control with touchscreen interface.
   • Supports multiple languages and real-time monitoring.
7. Machine Speed:
   • Production speed: 10-20 m/min (depending on the profile complexity and material).
8. Safety Features:
   • Safety guards and emergency stop buttons.
   • Compliance with international safety standards.
9. Material Specifications:
   • Material thickness: 0.4 mm to 1.2 mm.
   • Material width: Up to 1250 mm.
   • Materials: Galvanized steel, aluminum, pre-painted steel, and stainless steel.
10. Additional Features:
    • Automatic stackers for product handling.
    • Optional remote PLC control for off-site operation.
    • Coil handling systems for easy loading and unloading.

Question and Answer Section

Q1: What types of wall panels can this machine produce? A1: The Wall Panel Roll Forming Machine can produce a variety of wall panel profiles, including trapezoidal, ribbed, and corrugated panels, suitable for different architectural and structural applications.

Q2: What materials are compatible with this machine? A2: The machine can process galvanized steel, aluminum, pre-painted steel, and stainless steel with thicknesses ranging from 0.4 mm to 1.2 mm.

Q3: How does the machine ensure accuracy in production? A3: Accuracy is ensured through a combination of high-precision rollers, a hydraulic cutting system, and a PLC control system that monitors and adjusts operations in real-time.

Q4: What is the maximum speed of the machine? A4: The production speed ranges from 10 to 20 meters per minute, depending on the material and profile complexity.

Q5: Are customization options available for the profiles? A5: Yes, the machine can be customized to produce specific profile designs based on customer requirements.

Q6: What are the maintenance requirements for this machine? A6: Regular maintenance includes lubrication of moving parts, inspection of rollers and cutting blades for wear, and periodic cleaning of the machine to ensure consistent performance.

Q7: Is training provided for operating the machine? A7: Most manufacturers provide training and user manuals to ensure safe and efficient operation of the machine.

Q8: Can the machine be integrated with existing production lines? A8: Yes, the Wall Panel Roll Forming Machine can be integrated into existing production lines, and optional automation features are available to enhance compatibility.
