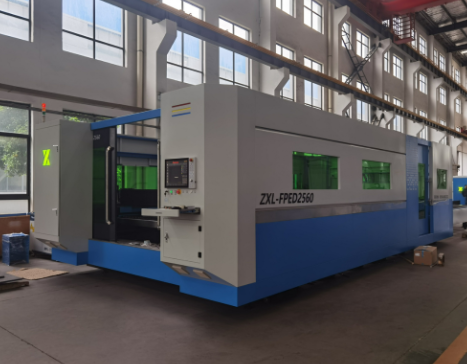

ZXL Series Fiber Laser Cutting Machine

Zhouxiang: Wuxi, Jiangsu, China

Gantry fiber laser cutters in 8 to 20kW with IPG or Raycus sources, working areas up to 2,500 × 12,000mm, and speeds up to 85m/min, offered as plate, pipe and plate, high-power, and H-beam versions.

The ZXL series is Zhouxiang's range of fiber laser metal cutting machines. They use a gantry design with a double-drive rack and pinion transmission, an IPG (Germany) or Raycus (China) fiber laser source, and a CNC control system. Zhouxiang says they cut stainless steel, mild steel, carbon steel, aluminium, brass, and copper, using oxygen or nitrogen assist gas.

The standard machine offers laser powers from 8,000W to 20,000W, working areas up to 2,500 × 12,000mm, a maximum workpiece height of 120mm, and a top speed of 85m/min with 1.5G acceleration. The main machine draws 15kW and has IP54 protection.

Zhouxiang sells the series in four versions: a large platform machine, a high-power machine, a pipe and plate machine, and an H-beam machine that also bevels, engraves, and marks.

The Four Versions

• Large platform fiber laser cutter: gantry design with ball screw, rack and pinion, and linear guide drives. X stroke 9,050 to 15,050mm, Y stroke 3,050mm, Z stroke 100mm. Listed at $35,000 to $220,000.
• High-power fiber laser cutter: IPG or Raycus source for cutting carbon steel, silicon steel, stainless steel, galvanised sheet, and pickled plate. Listed at $35,000 to $220,000.
• Fiber laser pipe and plate cutter: IPG source from 1,000W to 15,000W. X stroke 1,500, 2,000, or 2,500mm; Y stroke 6,050 or 8,050mm; Z stroke 250mm. Listed at $36,000 to $200,000.
• H-beam laser cutter: cuts, engraves, bevels, and marks H-beams and plate, accepts Tekla 3D model data, and has a BOCHU cutting head with real-time monitoring and auto-focus. Effective cutting range 3,500 × 24,000mm, 20kW laser. Listed at $140,000 to $210,000.

(Prices are the supplier's published ranges, and may not include every option.)

Why Choose a Fiber Laser Cutter?

Fiber lasers cut faster and use less energy than older CO₂ lasers, and they cut reflective metals such as aluminium, brass, and copper more readily. Higher power allows thicker material and faster cutting of thin sheet.

• Wide power range. 8 to 20kW options in the standard series, so you can match power to your thickest material.
• Large formats. Working areas from 1,500 × 3,000mm up to 2,500 × 12,000mm, and much larger platforms in the special versions.
• Fast motion. Up to 85m/min with 1.5G acceleration.
• Choice of laser source. IPG or Raycus.
• Structural steel option. The H-beam version cuts, bevels, and marks profiles, with direct Tekla data input.

Machine Specifications (ZXL standard series)

• Model: ZXL
• Laser type: IPG (Germany) or Raycus (China)
• Laser power: 8,000W, 10,000W, 12,000W, 15,000W, or 20,000W
• Working area: 1,500 × 3,000mm, 2,000 × 8,000mm, 2,500 × 6,000mm, or 2,500 × 12,000mm
• Workpiece maximum height: 120mm
• Repeat positioning accuracy: ±0.04
• Maximum speed: 85m/min
• Maximum acceleration: 1.5G
• Transmission: double-drive rack and pinion
• Protection grade: IP54
• Power supply: 3-phase, 380V, 50Hz (or customised)
• Power consumption: main machine 15kW
• Machine weight: 20 tonnes

Condition Available: New

Key Features

• Fiber laser source from IPG or Raycus
• 8 to 20kW power options
• Working areas up to 2,500 × 12,000mm (larger in special versions)
• Speeds up to 85m/min with 1.5G acceleration
• Double-drive rack and pinion transmission
• IP54 protection
• Oxygen or nitrogen assist gas
• H-beam version with bevel cutting, marking, and Tekla import

Applications

• Cutting steel plate, stainless steel, aluminium, brass, and copper
• Structural steel fabrication, including H-beam cutting and marking
• General sheet and plate metal fabrication

Who This Machine Is For

• Metal fabrication shops moving to fiber laser
• Steel structure fabricators (H-beam version)
• Shops wanting a large-format plate cutter

Frequently Asked Questions

What laser power options are available?
The standard ZXL series offers 8, 10, 12, 15, and 20kW. Other versions list different ranges (see notes).

What metals can it cut?
Stainless steel, mild steel, carbon steel, aluminium, brass, and copper, according to Zhouxiang.

What size sheets can it handle?
Working areas of 1,500 × 3,000, 2,000 × 8,000, 2,500 × 6,000, or 2,500 × 12,000mm, with larger formats in the platform and H-beam versions.

Which laser source does it use?
IPG or Raycus, depending on the configuration.

Can it cut structural sections?
The H-beam version cuts, bevels, engraves, and marks H-beams, and accepts Tekla 3D model data.

How heavy is it?
The standard machine weighs about 20 tonnes.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
These machines are available new, built to order.
