1.5" A Narrow Rib Metal Roof Deck Roll Forming Machine – Connecticut

1.5" A Narrow Rib Metal Roof Deck Roll Forming Machine – Connecticut, USA

Precision-Engineered for Structural and Metal Decking Applications

Product Overview

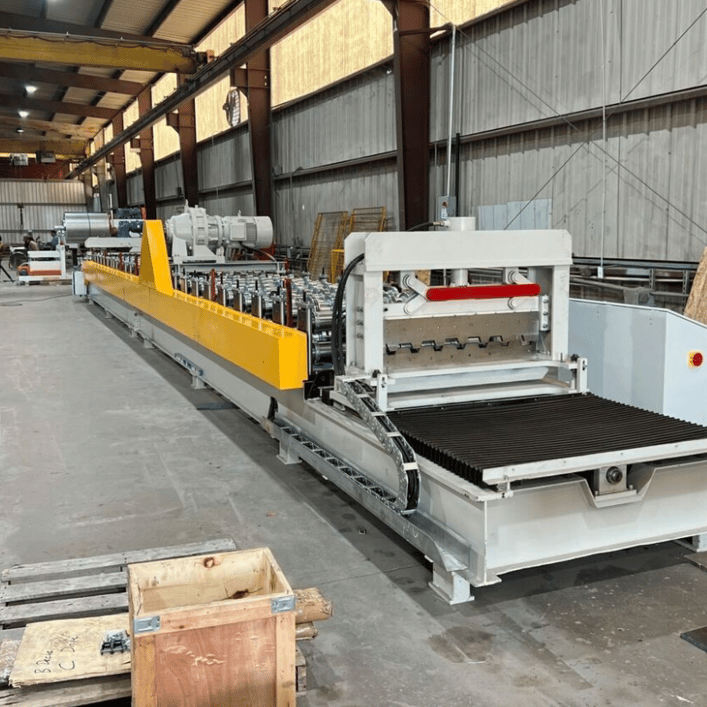

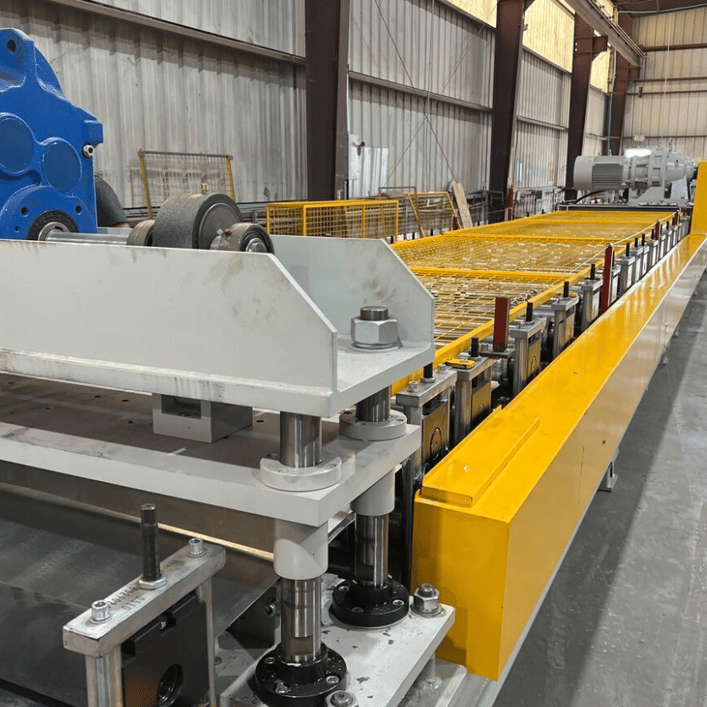

The 1.5" A Narrow Rib Metal Roof Deck Roll Forming Machine is a high-performance, industrial-grade machine designed for manufacturers and fabricators in Connecticut, USA. Built to meet the demands of the commercial roofing and structural decking industry, this roll forming machine offers durability, reliability, and the capacity to produce high volumes of narrow rib decking panels with precision and speed.

Engineered for strength and consistency, this machine is ideal for use in commercial, industrial, and institutional construction projects, including warehouses, factories, high-rise buildings, schools, and stadiums. The profile it produces—1.5" A Narrow Rib Roof Deck—is widely used for its excellent strength-to-weight ratio and structural efficiency.

All machines are custom-built to meet the customer's specific panel profile and operational needs. Whether you require standard configurations or customized dimensions, Machine Matcher provides flexible solutions for both fixed base and cassette-style roll forming lines.

Machine Specifications

• Profile: 1.5" A Narrow Rib Metal Roof Deck
• Other Available Profiles:
  • 1.5" B Deck
  • 3" N Deck
  • Composite Metal Deck
  • Steel Form Deck
  • Custom Profiles Available on Request
• Machine Style: Fixed Base or Cassette
• Optional Equipment: Auto Stackers Available
• Forming Speed: 60 ft/min and above
• Material Gauge: 18 – 22 gauge steel
• Machine Weight: 20 tons
• Machine Footprint: 85 feet

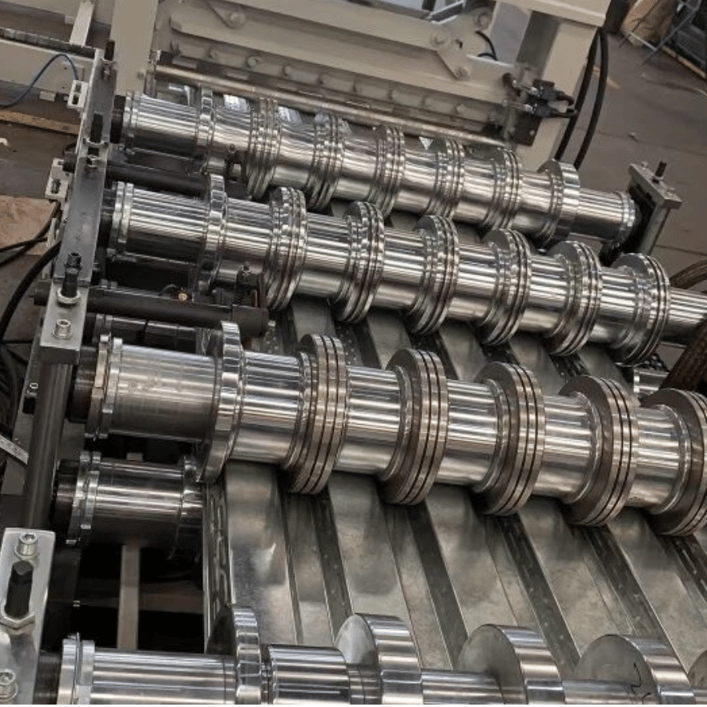

• Stations: 28 precision roll forming stations
• Drive System: Gearbox and Chain Drive
• Motor: 32 HP
• Power Supply: 480V, 3 Phase, 60Hz

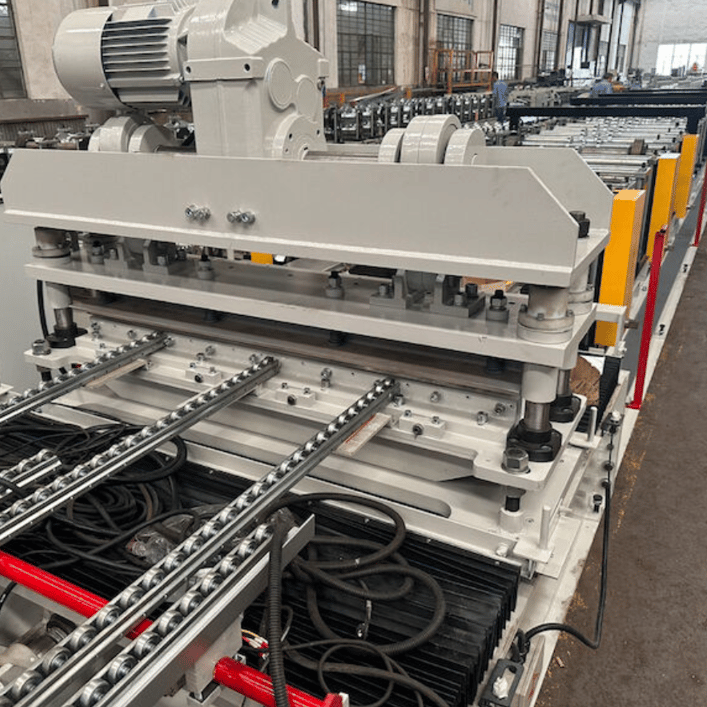

• Cutting Type: Pre-Flying Shear for Continuous Operation
• Safety: Emergency Stops (E-Stops), Optional Safety Covers
• Uncoiler: 15,000 lb Hydraulic Uncoiler with Coil Car
• Warranty: 1 Year from Dispatch
• Support: Ongoing Maintenance and Repair Services Available

Industry Applications

This machine is primarily used in the metal construction and building products industry, particularly in the following sectors:

• Commercial & Industrial Roofing
• Multi-level Structural Decking
• Steel Building Construction
• Prefabricated Building Systems
• Metal Fabrication & Steel Service Centers

The 1.5" A Narrow Rib deck profile is commonly used for roof deck systems, offering excellent load-bearing capacity, fast installation, and compatibility with various roofing systems and insulation products.

Delivery & Customization

All machines are new and custom-built. Once complete, the machine will be shipped directly to your location in Connecticut from our manufacturing partner. Our engineering team works closely with each customer to ensure the machine meets exact specifications. Machines can be configured with custom widths, gauges, and profile depths based on submitted drawings or design needs.

Auto stackers, advanced PLC systems, hydraulic coil cars, and more optional add-ons are available upon request.

Get a Quote

Pricing is determined based on your custom profile and any selected optional features. Please send your profile drawings and any specific requirements to:

Email: [email protected]

Question & Answer Section

Q: Can this machine handle custom deck profiles or only standard A-deck?

A: Yes, this machine can be configured for custom deck profiles. We offer full customization based on profile drawings or design specs you provide.

Q: Is this machine available in cassette type for quick profile changeovers?

A: Yes, both cassette-type and fixed-base versions are available depending on your production needs.

Q: What kind of power is needed to run this machine in Connecticut?

A: The machine operates on a standard 480V, 3-phase, 60Hz power supply—common in industrial facilities across the USA.

Q: What is the delivery time to Connecticut?

A: Delivery time depends on the level of customization but typically ranges from 8 to 16 weeks after order confirmation.

Q: Do you provide installation and setup services in the USA?

A: Yes, Machine Matcher offers full machine installation, setup, training, and ongoing support across the USA, including Connecticut.

Q: What’s included with the machine purchase?

A: The machine comes with the full roll forming line, a 15,000 lb uncoiler with hydraulic coil car, E-stops, optional safety covers, and one-year warranty coverage.
