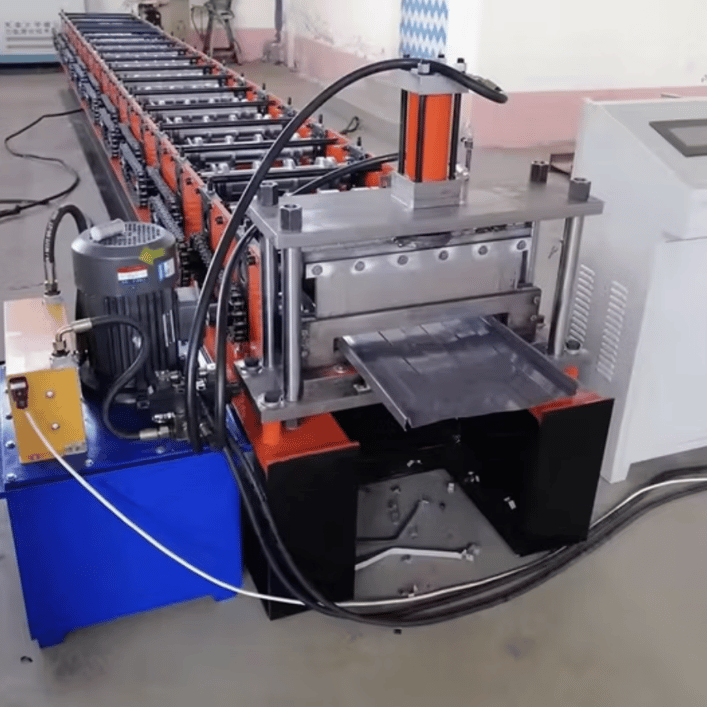

1-Inch Interlocking Wall/Soffit Panel Machine in Tennessee, USA

1 Inch Interlocking Wall/Soffit Panel Machine

1″ Commercial Flush Wall/Soffit Panel. Complete with hydraulic drive and front hydraulic scissors shear, adjustable panel width of 10″ to 24″.

• Hydraulic Drive & Hydraulic Front Scissor Shear
• 3 HP Electric-Hydraulic Power Unit – 110 volt single phase
• Adjustable Width Panels 10″ – 24″
• 40 Ft Per Minute Speed
• Material Capacity – 24ga. steel .032 aluminum 12-16 oz copper

Options & Accessories

• Digital Controller for fully automatic operation
• “Quick Release” Seam Style Ribs (2)
• Perforation Die Attachment for Soffit venting
• Power Upgrade to perforate and roll form 24 – 22 ga Steel – Required
• 3,000 and 5,000 Lbs. capacity Decoilers
• Machine Stand with Leveler Pads (shop use)

A 1-inch interlocking wall/soffit panel machine is a piece of equipment used in the construction industry to manufacture interlocking panels typically used for walls and soffits. These panels are designed to interlock with each other, making installation easier and more efficient.

Here's a brief overview of how such a machine might work:

1. Material Feeding: Raw materials, usually metal sheets or coils, are fed into the machine. These materials are often made of materials like steel, aluminum, or other metals.
2. Roll Forming: The machine uses a roll forming process to shape the metal into the desired profile. Roll forming involves passing the metal through a series of rollers, each of which incrementally bends the metal into the desired shape. In this case, the rollers would create the interlocking features of the panel.
3. Cutting: After the metal is shaped into the interlocking panel profile, it is cut to the desired length. The machine may have a cutting mechanism, such as a shear or a saw, to accomplish this.
4. Interlocking Mechanism: If the panels have a specific interlocking design, the machine may include a mechanism to create these interlocking features. This could involve forming notches, tabs, or other features that allow the panels to securely fit together.
5. Quality Control: Throughout the process, there may be quality control mechanisms in place to ensure that the panels meet the desired specifications and quality standards.
6. Stacking or Packaging: Once the panels are manufactured, they are typically stacked or packaged for shipping to construction sites or distribution centers.

These machines are designed for efficiency and can produce large quantities of interlocking wall/soffit panels with consistent quality. They are commonly used in commercial and industrial construction projects where interlocking panels are a preferred choice due to their ease of installation and durability.

The specific features and capabilities of a 1-inch interlocking wall/soffit panel machine can vary depending on the manufacturer and the requirements of the construction project. If you are looking to purchase or use such a machine, it's important to consider factors like the type of material it can process, the production capacity, the interlocking design options, and the overall cost.
