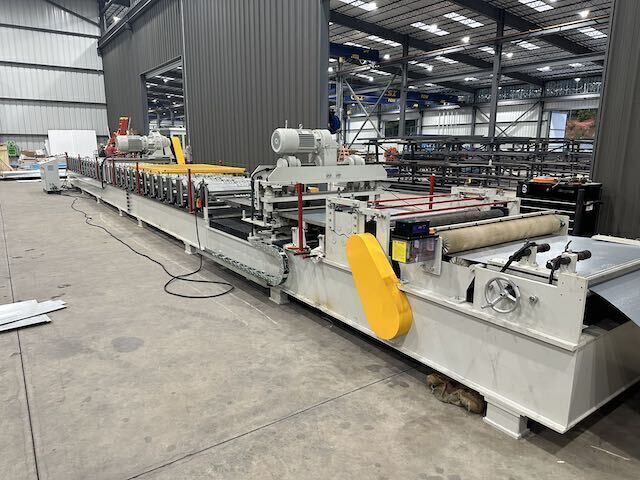

1-Inch Steel Deck Roll Forming Machine in Florida, USA

• Profile: 1" Deck
• Coil Width: 48"
• Forming Speed: 60ft Plus
• Material thickness: 18g - 22g
• Machine Weight: 20 ton
• Machine Footprint: 85ft
• Main power: 480v - 3ph - 60Hz
• Motor: 32hp
• Gearbox: Chain drive
• Stations: 28
• Cutting type: Pre Flying Shear
• Safety covers- optional
• E Stops

A 1-inch steel deck roll forming machine is a specialized piece of equipment used in the construction industry to manufacture steel decking panels with a 1-inch profile. Steel decking panels are commonly used in the construction of floors and roofs in commercial and industrial buildings.

Here's how a typical roll forming machine for 1-inch steel deck panels works:

1. Material Feeding: The process begins with a coil of steel sheet or coil stock that is loaded onto the machine. The steel coil is unrolled and fed into the machine.
2. Roll Forming: The steel sheet passes through a series of rollers, each set of rollers gradually shaping the steel into the desired profile, which, in this case, is a 1-inch deep corrugated pattern. These rollers are carefully designed to create the specific shape and dimensions required for the steel decking.
3. Cutting: Once the steel sheet has been formed into the desired profile, it is cut to the desired length. This is typically done using a flying cutoff or shear mechanism.
4. Stacking or Bundling: After cutting, the individual steel decking panels are either stacked or bundled for transportation and further processing.
5. Additional Processes: Depending on the specific requirements, the steel decking panels may undergo additional processes such as punching holes for fasteners, applying coatings or paint, or adding other features.

The final product is a series of steel decking panels with a 1-inch profile that can be used in the construction of buildings to provide structural support for concrete floors and roofs. These panels are known for their strength, durability, and ease of installation.

Roll forming machines come in various sizes and configurations to accommodate different panel profiles and production capacities. They are an essential part of the construction industry, as they enable the efficient and cost-effective manufacturing of steel decking and other building components.
