12-Ton Automatic CZ Purlin Machine with Pre-Cut in China

The finished product has high dimensional accuracy, accurate punching position and high straightness.

1. Machine is large and weighs 12 tons, which is strong and durable. The machine has stable performance and low failure rate.
2. The finished product has high dimensional accuracy, accurate punching position and high straightness.
3. Available in stock always, delivery time :7 days.

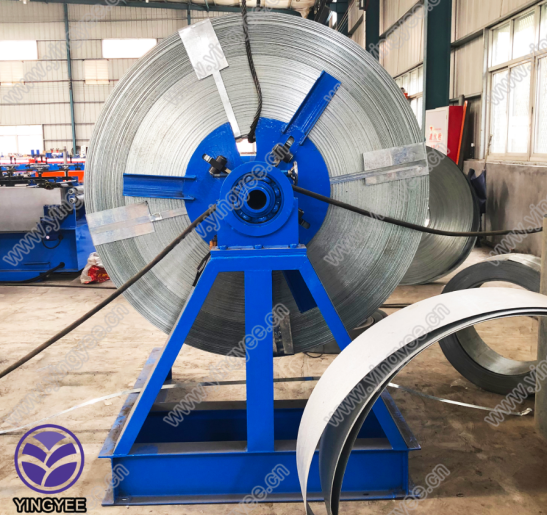

4. Manual decoiler is standard, and a 5-ton or 7-ton hydraulic decoiler is optional. The price is reasonable and the quality is good.
5. The punching mold can be replaced according to customer requirements, and the operation is simple.
6. Pre-cut are standard, for saving materials.

One machine can make all sizes of C (web: 80-300mm, height 35-80) and Z (web: 120-300mm, height 35-80), which are adjusted by a fully automatic PLC system.

Manually adjust the C and Z to change the type. 3. Universal cutter cuts all sizes. Save time and labor.

C Purlin machine:

a: 80-300mmb: 35-80mm c: 10-25mm T: max 3mm

Z Purlin machine:

a: 120-300mm b: 35-80mm c:10-25mm T: max 3mm

  1. Main power:5kw, hydraulic power：5.5kw
  2. 6 electronicmotors auto adjust size.
  3. Frame：500mm H frame steel
  4. Forming speed: 18-20m/min
  5. Shaft material and diameters: #45 steel and fit side 65mm. flexibleside:85mm
  6. Roller material: Gcr15. the hardness is HRC 52-55

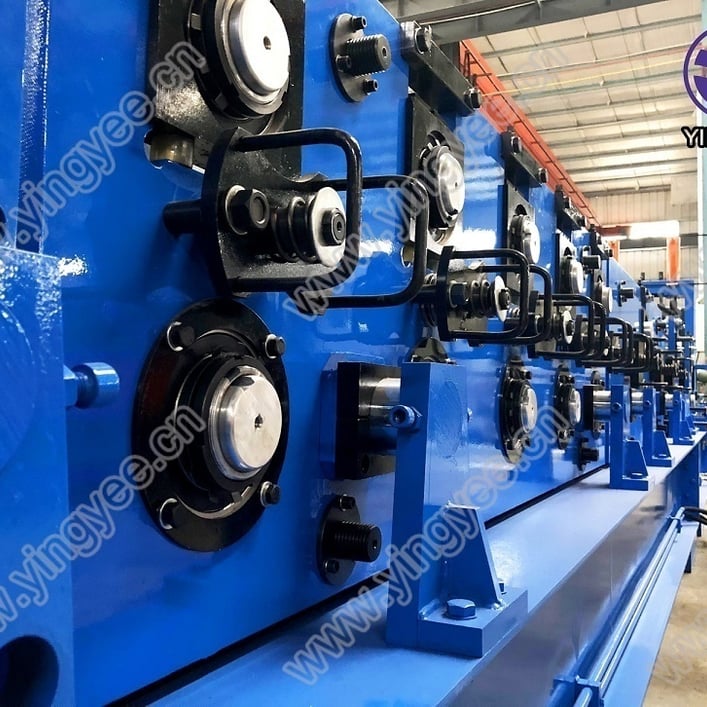

  7. Steps: 15 steps for forming
  8. All size change by PLC. All parameter set from the PLC control system
  9. C/Z change, by manual change the rollers discretion
  10. Machine structure：pannel stand + one side can move

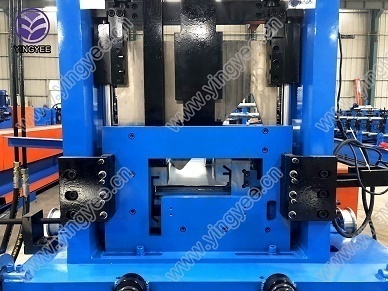

  11. Cutter:universal cut
  12. Hydraulic pre cut
  13. with 3 sets of holes
  14. Drive ：sprocket+gear
  15. Machine size: L*W*H 15m*1.6m*1.4m(approx size. correct size will be known when machine ready)
  16. Machine weight about 12Tons
  17. Voltage: 380V/ 3phase/ 50 Hz
