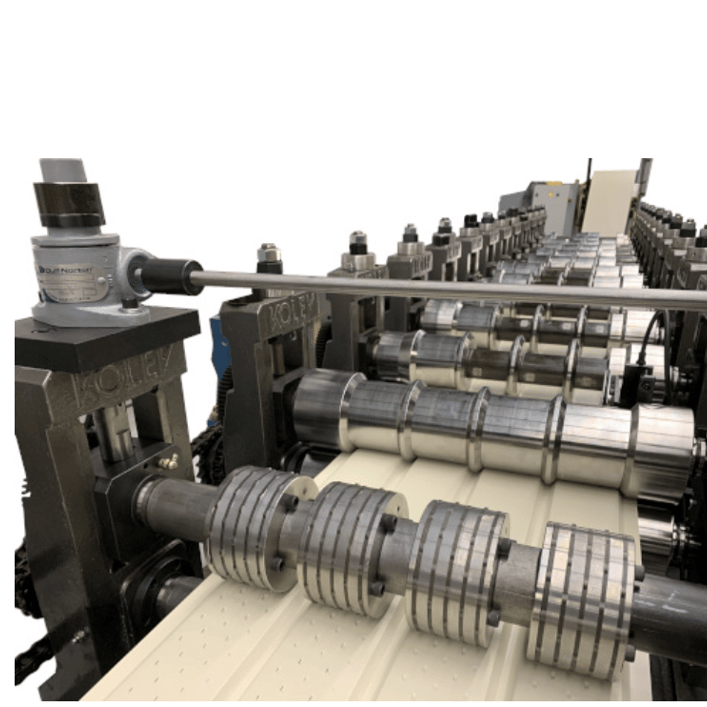

14 Pass Soffit Line Roll Forming Machine in Ontario, Canada
- Heavy-duty base for 14 passes, welded structure I beam with machined surface
- Entry guide – manual adjustment on precision linear guides
- Shaft Diameter – 1.5” x 3/8 keyway
- 2 gear reducers, Cone drive
- Chain drive all bottom shafts
- Bottom to top shafts drive – gears to designated passes
- Horizontal distance – 12 3/4”
- Vertical Distance – 4.5” – 6.5”
- Roll tooling space – 20”
- Encoder fixture
- Working speed 120fpm
- Drive: 10HP AC motor, 1800 rpm, 575V, 3ph, VFD drive, and control panel for the roll former, plug and play
- Lansing station for ventilation holes Pass #14
Request a quote
We’ll respond within one business day
Enquiring about 14 Pass Soffit Line Roll Forming Machine in Ontario, Canada
Prefer to talk?
Call us on +44 20 3355 6554 (UK) or +1 407 887 3237 (US) to speak directly with our sales engineers.
- Condition
- New
- Supplier
- Roll Forming Machines Canada
- Country
- Canada
- Categories
- Custom Roll Forming Wall Cladding & Siding Machines
- Listing ID
- 14038
