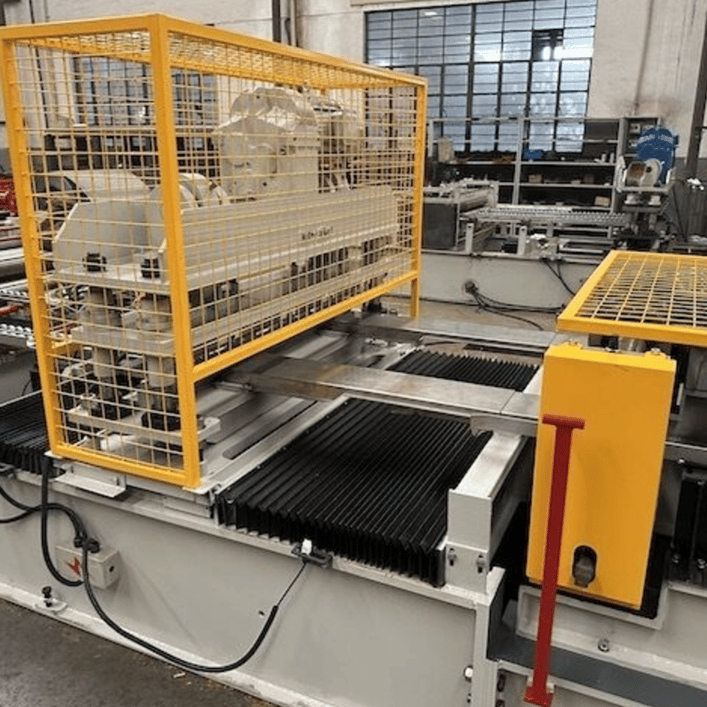

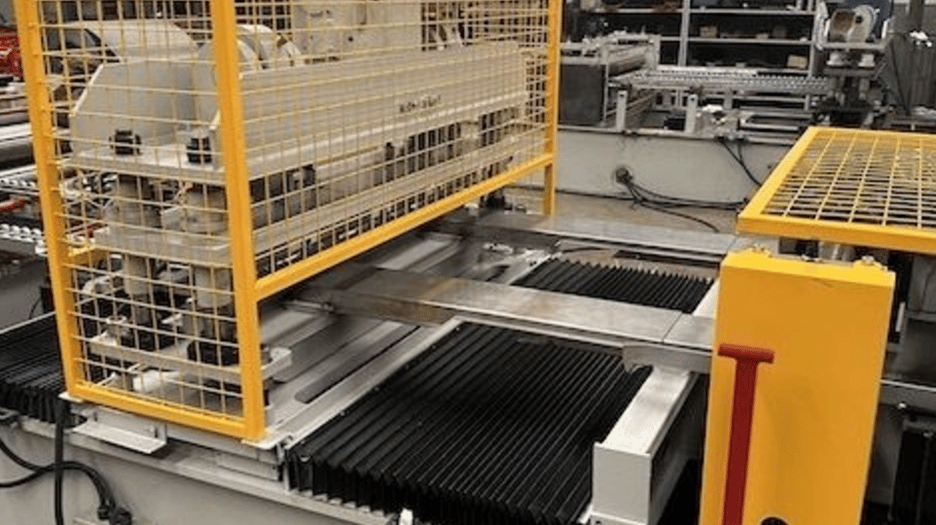

2" Composite Metal Deck Cold Roll Forming Machine Florida

The 2" Composite Metal Deck Cold Roll Forming Machine is a specialized piece of equipment designed for the production of 2-inch composite metal decking. These decks are widely used in construction for flooring and roofing applications, providing excellent strength, durability, and compatibility with concrete. The machine is engineered for high efficiency, precision, and durability, ensuring consistent and high-quality output.

This machine is suitable for manufacturers in the construction and infrastructure industries, particularly in Florida, where there is a high demand for composite metal decking due to ongoing development in residential, commercial, and industrial construction. The machine can handle a variety of metals, including galvanized steel, and is equipped with advanced control systems for seamless operation.

Machine Specifications

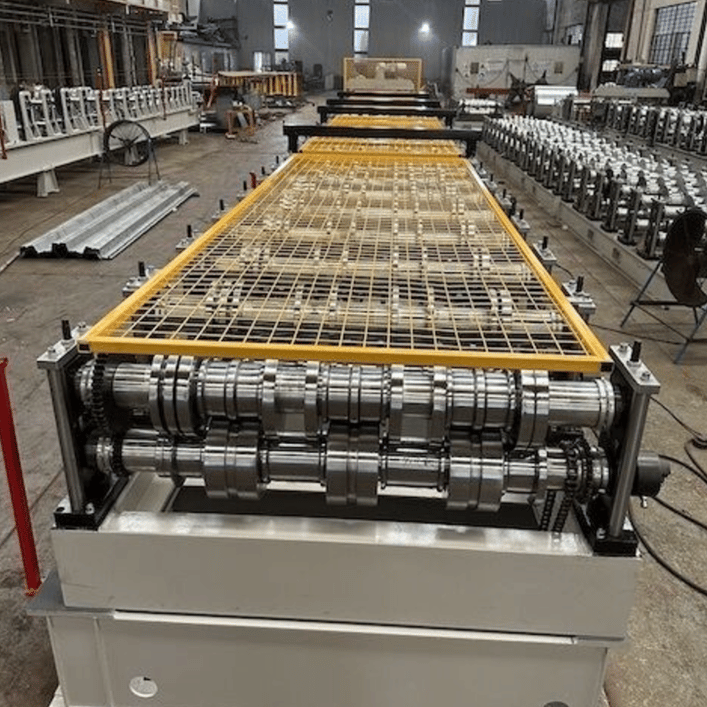

1. Roller Materials:
   • Material: High-grade forged steel with hard chrome plating for durability.
   • Hardness: HRC 58-62.
2. Punching and Notching:
   • Hydraulic or servo-controlled punching system.
   • Customizable punching dies for project-specific requirements.
3. Hydraulic Cutting System:
   • Type: Hydraulic guillotine cutter.
   • Blade Material: Cr12Mov steel (heat-treated for long life).
   • Precision: ±1 mm.
4. Frame Size:
   • Heavy-duty steel frame.
   • Welded structure for stability and minimal vibration.

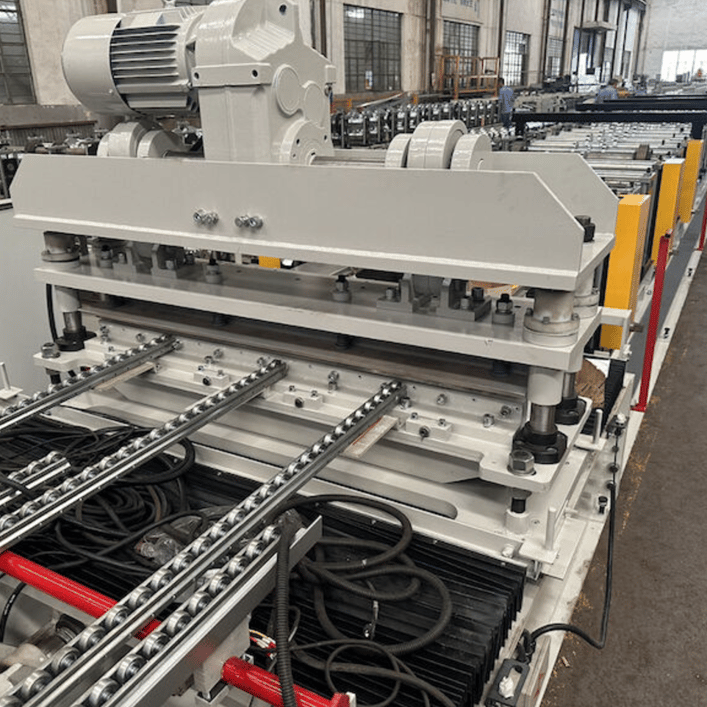

5. Motor and Drive System:
   • Main Motor Power: 22-30 kW (depending on configuration).
   • Drive: Chain or gearbox-driven system.
6. PLC System:
   • Brand: Mitsubishi/Siemens.
   • User-friendly touchscreen interface for operation and monitoring.
   • Remote control capability (optional).
7. Machine Speed:
   • Forming speed: 10-15 meters per minute (without punching).
   • Speed may vary with punching operations.

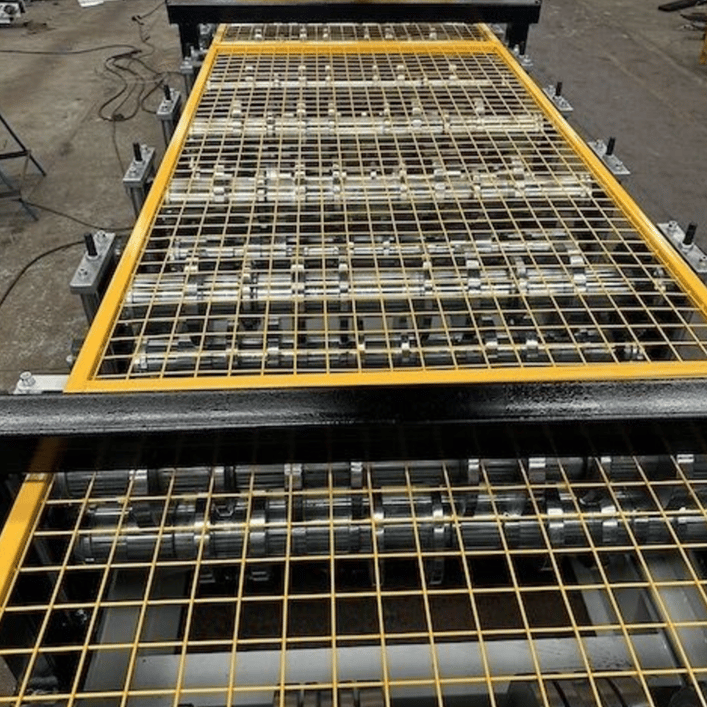

8. Safety Guards and Enclosures:
   • Full safety enclosures around the machine.
   • Emergency stop buttons and overload protection systems.
9. Profile Specifications:
   • Material Thickness: 0.8-1.5 mm.
   • Material Width: Up to 1250 mm.
   • Material Type: Galvanized steel, cold-rolled steel, or aluminum.
   • Profile Height: 2 inches.
   • Profile Finish: Smooth and precise edges.
10. Power Supply:
    • 220V/380V/415V, 50/60 Hz, 3-phase (customizable for Florida's grid).
11. Extras:
    • Automatic stacking system.
    • Coil car tippers.
    • Uncoilers and recoilers.
    • Optional pre-cut or post-cut systems.

Question and Answer Section

Q1: What materials can the machine process?

A: The machine can process galvanized steel, cold-rolled steel, and aluminum sheets with a thickness range of 0.8-1.5 mm and widths up to 1250 mm.

Q2: How does the machine handle profile precision?

A: The machine is equipped with high-quality rollers and a PLC-controlled system to ensure accurate dimensions with a precision of ±1 mm.

Q3: Is it suitable for Florida's construction needs?

A: Yes, the 2" composite metal deck is widely used in Florida for its ability to bond with concrete, creating strong, durable, and lightweight floors and roofs.

Q4: What safety features does the machine have?

A: The machine is equipped with safety guards, emergency stop buttons, and overload protection systems to ensure operator safety.

Q5: Can the machine handle custom designs?

A: Yes, the machine can be customized with different punching patterns and profile shapes to meet specific project requirements.

Q6: How long does it take to set up and install the machine?

A: Installation and setup typically take 3-5 days, depending on the site and machine configuration.

Q7: What is the average production speed?

A: The machine operates at a speed of 10-15 meters per minute, though this may vary with additional punching or notching requirements.

Q8: What is the expected maintenance schedule?

A: Regular maintenance includes cleaning, lubrication of rollers, and inspection of the hydraulic and electrical systems. Routine maintenance should be done every 1-2 months, depending on usage.

Q9: Can the machine be integrated with an automatic stacker?

A: Yes, the machine can be equipped with an automatic stacking system to streamline production.

Q10: What support is provided after purchase?

A: The supplier provides installation, training, and after-sales support, including spare parts and remote assistance for troubleshooting.
