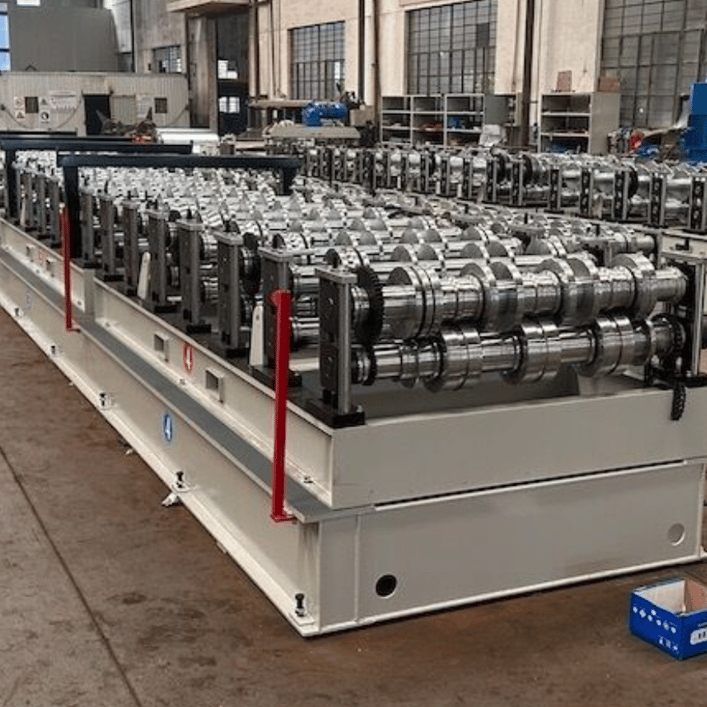

3.0" N Deep Rib Metal Roof Deck Roll Forming Machine Alaska

The 3.0" N Deep Rib Metal Roof Deck Roll Forming Machine is a highly efficient and robust solution for producing deep rib metal roof decks in Alaska's demanding climate. Known for its durability and adaptability, this machine is designed to meet various roofing and structural requirements with precision and speed. Whether for commercial, industrial, or residential projects, this machine delivers exceptional performance with customizable profiles and advanced automation features. The fixed-base and cassette options, along with auto-stackers, provide flexibility to cater to diverse project demands.

Specifications

Profiles Available

• 1.5-inch B Deck
• 3-inch N Deck
• Composite Metal Deck
• Steel Form Deck
• Custom profiles (tailored to your requirements)

Forming Machine

• Forming Speed: 60 feet per minute (or faster)
• Material Thickness: 18g - 22g
• Machine Weight: 20 tons
• Machine Footprint: 85 feet
• Main Power: 480v - 3ph - 60Hz
• Motor Power: 32 HP
• Drive Mechanism: Gearbox & Chain Drive
• Number of Stations: 28
• Cutting Type: Pre-Flying Shear
• Safety Features: Optional safety covers and E-stops

Uncoiler

• Type: 15,000 lb capacity hydraulic uncoiler with car
• Decoiling Speed: 60 feet per minute
• Max Loading Capacity: 15,000 lbs
• Coil Width: 48 inches

Hydraulic Car

• Weight: 3.5 tons
• Footprint: 14 ft x 6 ft x 6 ft
• Car Size: 35 inches x 28 inches

Control System

• Jog controls
• Proximity sensors
• Air brake

Why This Machine is Ideal for Alaska

• Durability: Engineered to handle extreme weather conditions, ensuring consistent performance in Alaska's cold climate.
• Custom Profiles: Adaptability to meet specific architectural and structural requirements.
• High Efficiency: Speeds exceeding 60 feet per minute optimize production time.
• Heavy-Duty Design: The machine's robust construction supports prolonged usage without compromising accuracy.
• Energy Efficient: Designed with a 480v, 3-phase, 60Hz power supply, suitable for industrial-grade power setups in Alaska.

Question and Answer Section

Q1: What is the forming speed of the 3.0" N Deep Rib Metal Roof Deck Roll Forming Machine?

A1: The forming speed is 60 feet per minute or faster, depending on the material and profile specifications.

Q2: Can this machine produce custom profiles for specialized projects?

A2: Yes, the machine is designed to produce custom profiles tailored to your requirements.

Q3: What material thicknesses does the machine support?

A3: The machine supports material thicknesses ranging from 18g to 22g.

Q4: Is the machine equipped with safety features?

A4: Yes, optional safety covers and emergency stop (E-stop) buttons are available for enhanced operator safety.

Q5: What type of uncoiler is included with the machine?

A5: The machine comes with a 15,000 lb capacity hydraulic uncoiler with a car, capable of decoiling at a speed of 60 feet per minute.

Q6: What is the power requirement for operating this machine?

A6: The machine operates on a 480v, 3-phase, 60Hz power supply.

Q7: Can the machine handle Alaskan conditions?

A7: Absolutely. Its heavy-duty construction and adaptable features make it ideal for Alaska's challenging environmental conditions.

Q8: Are there options for automation?

A8: Yes, the machine includes auto stackers and proximity sensors for efficient operation.

Q9: How many stations does the roll former have?

A9: The roll former is equipped with 28 stations for precise profiling.

Q10: What is the footprint of the hydraulic car?

A10: The hydraulic car has a footprint of 14 ft x 6 ft x 6 ft, designed for ease of integration and mobility.

This machine is a versatile and high-performance solution designed to meet the specific needs of Alaska's roofing and structural industries, ensuring precision, efficiency, and reliability for all projects.
