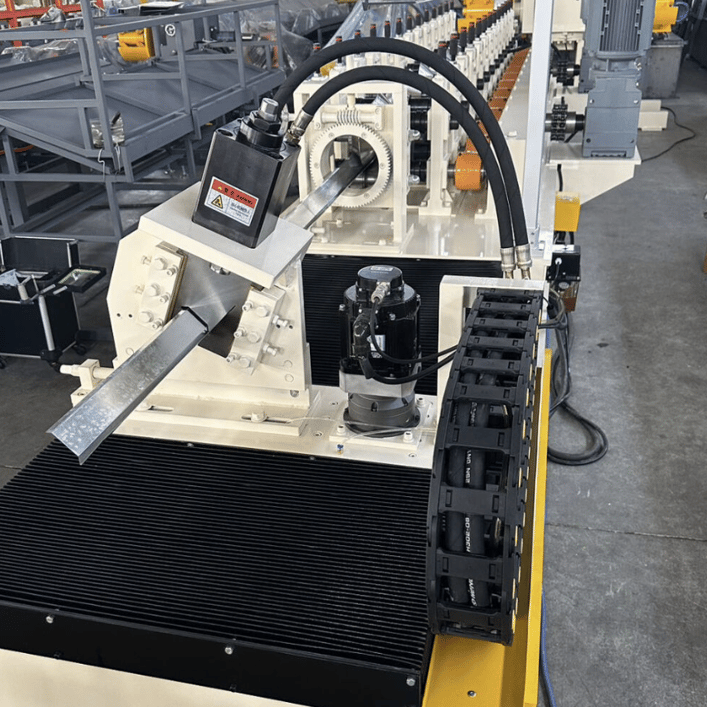

3" × 2" Drip Edge Roll Forming Machine Connecticut

3” x 2” Drip Edge Roll Forming Machine – Connecticut, USA

The 3” x 2” Drip Edge Roll Forming Machine is a high-speed, heavy-duty solution engineered for fabricators, roofing contractors, and manufacturers based in Connecticut, USA. Designed for precision and durability, this electric-powered machine efficiently produces 3” x 2” drip edge profiles at a rate of 80 feet per minute—ideal for both residential and commercial roofing applications.

This unit is a new, custom-built machine, shipped directly to your location from our manufacturing partner. It is designed to meet specific profile and production requirements, offering robust performance for demanding jobs.

Machine Specifications

• Machine Weight: 2,500 lbs
• Machine Dimensions: 18 ft (L) x 3 ft (W) x 5 ft (H)
• Power Supply: 240V, Three Phase, 60Hz (Standard for USA)
• Production Speed: 80 feet per minute

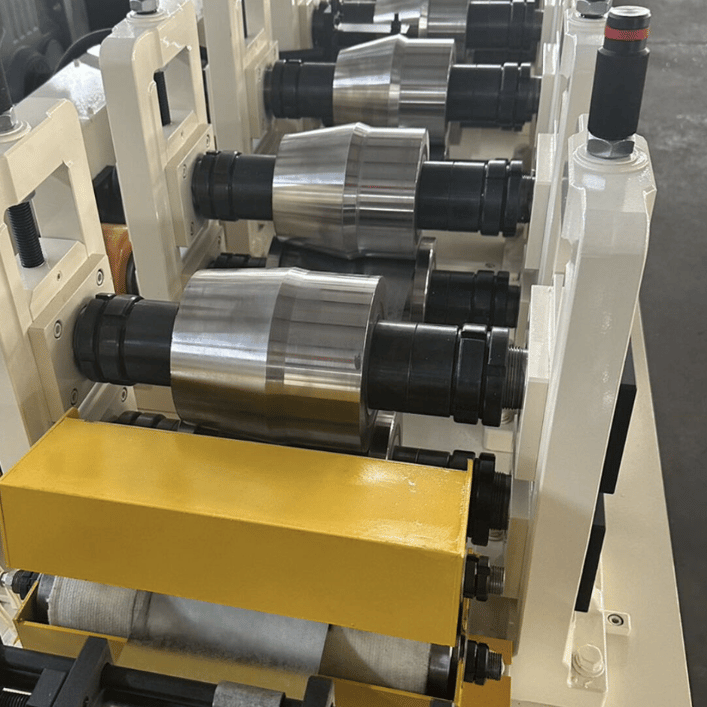

• Roll Stations: 10 stands for forming consistency and profile accuracy
• Cutting System: Electric shear for clean, burr-free cuts

Drip Edge Profile and Sizing Options

This machine specializes in forming the 3” x 2” drip edge profile, which is widely used for metal roofing systems and larger commercial roofing projects. Additional compatible profiles and sizing options can be requested, including:

Available Profiles

• C5, C6
• F4, F5 (1 ½” face), F6 (2” face), F7 (2 ½” face), F8 (3” face), F9 (3 ½” face), F10 (4” face)
• 90 Degree
• D Style
• FHA
• Custom profiles available upon request

Common Widths (Horizontal Overhang)

• 1 ¼”
• 1 ½”
• 2”
• 2 ½”
• 3”

Material Thickness (Gauge)

• 0.019 inch – standard aluminum
• 0.024 inch – for metal roofs
• 0.032 inch – heavy-duty, commercial-grade

Compatible Materials

• Aluminum – lightweight and rust-resistant
• Galvanized Steel – strong and durable
• Copper – premium material with aesthetic appeal

Industry Applications

The 3” x 2” Drip Edge Roll Forming Machine is used extensively in:

• Residential Roofing Fabrication
• Commercial and Industrial Roofing Projects
• Sheet Metal Shops
• Gutter and Flashing Manufacturers
• Building Supply Yards

Its versatility in profile sizing and material compatibility makes it a reliable choice for roofing contractors, metal suppliers, and production facilities throughout the United States, particularly in states with varied residential and commercial construction like Connecticut.

Customization, Delivery & Support

• Each machine is custom-built to order

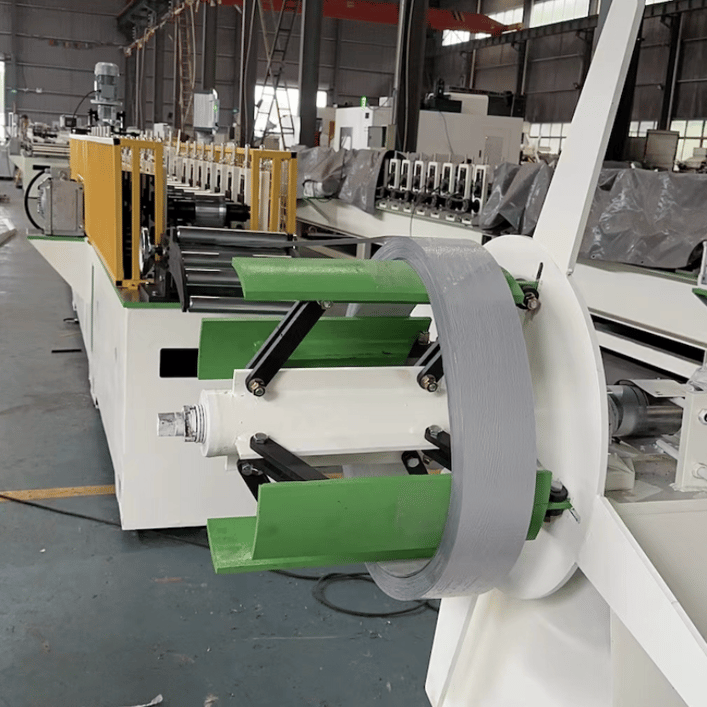

• Optional add-ons available (decoilers, stackers, coil cars, and remote PLC control)
• Machines are shipped directly from our manufacturing partner to your location in Connecticut
• Covered by a one-year warranty from dispatch
• Full support for machine setup, maintenance, and repair

Requesting a Quote

Pricing is based on the level of customization and optional equipment.

For a personalized quote, send your required profile drawing, material thickness, power specs, and any other relevant details to:

[email protected]

Frequently Asked Questions

Q: What is the production speed of this machine?

A: It can produce drip edge profiles at 80 feet per minute, making it ideal for high-volume production.

Q: What type of power supply does the machine require?

A: The machine is built for 240V, three-phase, 60Hz power—standard in the USA.

Q: Can this machine produce other drip edge profiles besides 3” x 2”?

A: Yes, it can be configured to form various profiles such as C5, F4, F6, 90 Degree, D Style, FHA, and custom profiles.

Q: What materials can this machine handle?

A: Aluminum, galvanized steel, and copper, in thicknesses from 0.019" to 0.032".

Q: Is this machine suitable for residential use?

A: Yes, especially for fabricators supplying F5 and F6 sizes. It’s also suited for commercial jobs using larger face sizes.

Q: What support is included after purchase?

A: Machine Matcher offers setup, adjustment, repair, and maintenance services for all roll forming machines we sell.

Q: How is the machine delivered to Connecticut?

A: The machine is shipped directly to your address from our global manufacturing partner. Crating and freight services are included in the quote.
