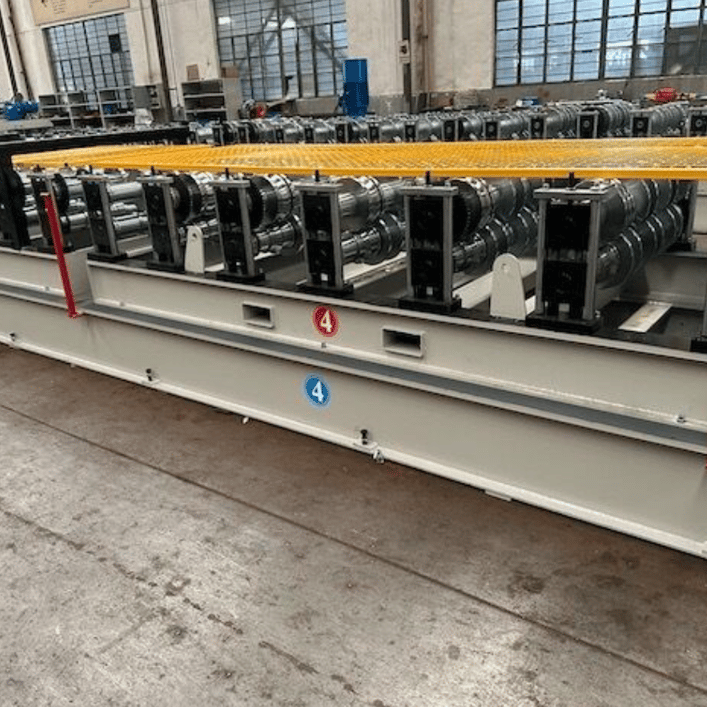

3" Composite Corrugated Floor Deck Roll Forming Machine Alaska

The 3” Composite Corrugated Floor Deck Roll Forming Machine is a state-of-the-art solution tailored to meet the growing demand for durable and efficient floor decking in the Alaskan construction industry. With its advanced specifications and ability to operate in Alaska's demanding environment, this machine ensures superior performance and precision.

This machine is capable of producing various profiles, including 1.5-inch B Deck, 3-inch N Deck, Composite Metal Deck, and Steel Form Deck profiles, and can be customized to meet specific requirements. Fixed base and cassette machine options are available, offering versatility for different production needs. Additionally, automatic stackers and hydraulic uncoilers simplify material handling, improving efficiency.

Built to withstand rugged operating conditions, the machine provides consistent output with minimal downtime, making it ideal for Alaskan construction projects where reliability is crucial.

Machine Specifications

• Forming Speed: 60+ feet per minute
• Material Thickness: 18 gauge to 22 gauge
• Machine Weight: 20 tons
• Machine Footprint: 85 feet
• Main Power: 480V, 3-phase, 60Hz
• Motor Power: 32 horsepower
• Drive System: Gearbox & Chain Drive
• Stations: 28 forming stations
• Cutting Type: Pre-Flying Shear
• Safety Features: Optional safety covers and E-stops

Uncoiler Specifications

• Type: 15,000 lb Uncoiler with Hydraulic Car
• Decoiling Speed: 60 feet per minute
• Maximum Loading Capacity: 15,000 lbs
• Coil Width: 48 inches
• Uncoiler Weight: 3.5 tons
• Uncoiler Footprint: 14 feet x 6 feet x 6 feet
• Car Size: 35 inches x 28 inches
• Controls: Jog controls, proximity sensor, air brake

Features and Options

• Custom Profiles: Machines can be tailored to produce profiles specific to customer needs.

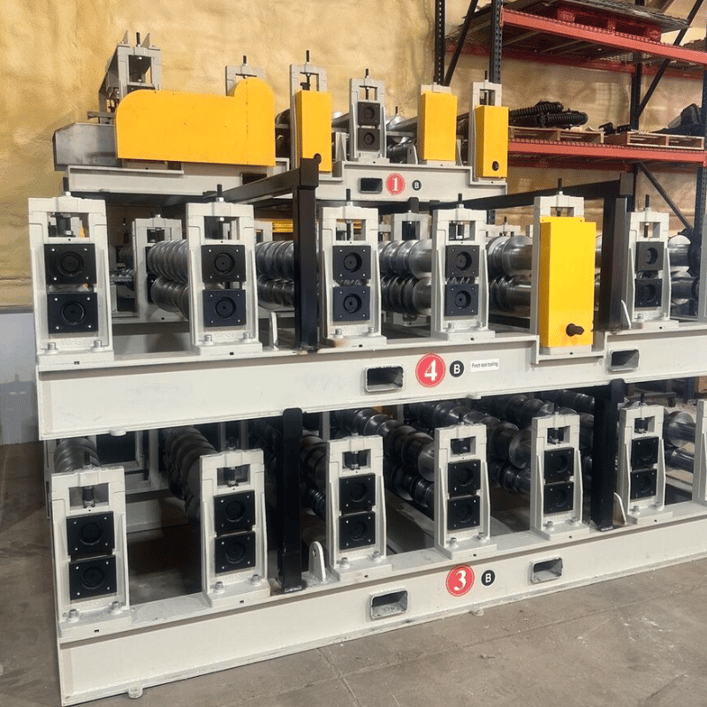

• Fixed Base and Cassette Options: Provides flexibility for varying production requirements.
• Automatic Stackers: Enhances efficiency by automating material stacking.
• Robust Construction: Designed for longevity and performance in extreme weather conditions.
• Safety Measures: E-stops and optional safety covers for operational security.

Frequently Asked Questions (FAQs)

Q1: Can this machine operate in cold climates like Alaska?

A: Yes, this machine is engineered for durability and efficiency, even in extreme cold climates. Its robust design and high-grade materials ensure consistent performance.

Q2: What materials can this machine handle?

A: The machine works with material thicknesses ranging from 18 gauge to 22 gauge, making it suitable for various construction projects.

Q3: How customizable is the machine for unique profiles?

A: The machine can be customized to produce specific profiles as per your requirements. It supports a variety of decking designs, including custom shapes.

Q4: What safety features does the machine have?

A: The machine is equipped with emergency stops (E-stops) and optional safety covers for added protection during operation.

Q5: What is the power requirement for this machine?

A: The machine operates on 480V, 3-phase, 60Hz power supply, which is standard for industrial applications in the USA.

Q6: What is the maximum coil width it can handle?

A: The machine can handle coils up to 48 inches wide with a maximum loading capacity of 15,000 lbs.

Q7: What are the uncoiler’s features?

A: The uncoiler includes a hydraulic car, jog controls, a proximity sensor, and an air brake, offering precision and ease of operation.

Q8: How fast is the machine?

A: The roll forming speed exceeds 60 feet per minute, ensuring high production efficiency.

Q9: What type of cutting system is included?

A: The machine features a pre-flying shear cutting system for precise and efficient cuts.

Q10: Is technical support available in Alaska?

A: Yes, technical support and installation services are available for Alaskan customers to ensure smooth machine operation.

This 3” Composite Corrugated Floor Deck Roll Forming Machine is a reliable, efficient, and customizable solution tailored to the needs of the Alaskan market. Its advanced features and robust design make it a valuable investment for construction and manufacturing industries in the region.
