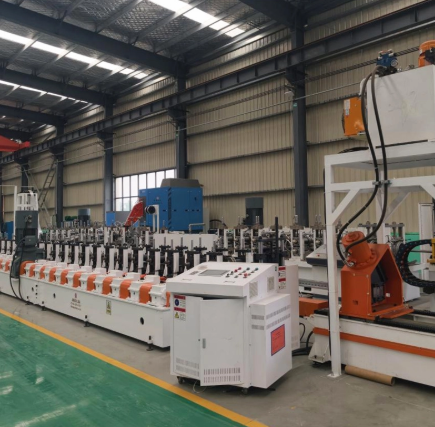

Jinbolida 30-Stand Formwork Waler Roll Forming Machine – High-Strength Walers from Coil to Finished Profile

The Jinbolida Back Edge Cold Bending Forming Machine is an automated roll forming line for steel formwork walers, the reinforcement members fixed across the back of formwork panels to keep them straight and stop them bulging or shifting when concrete is poured. Thirty precision forming passes gradually roll high-strength steel strip into a waler profile with a complex cross-section, accurate dimensions and high bending strength. Running continuously from coil to finished waler with minimal manual handling, it lets formwork manufacturers and contractors produce standardised walers at scale for large construction projects.

How It Works

• High-strength steel strip is fed from the coil
• Thirty forming passes gradually roll the strip into the waler profile
• The finished profile is cut to length
• Walers leave the line ready for use in formwork systems

Key Features

• Automated, continuous production from coil to finished waler
• 30 precision roll forming passes
• Accurate, repeatable complex cross-sections
• Designed for high-strength steel strip
• High bending strength for effective formwork reinforcement
• Reduced manual intervention and higher output

Technical Specifications

• Forming passes: 30
• Material: High-strength steel strip
• Product: Formwork walers (back ribs)

Applications

• Steel walers for wall and column formwork
• Reinforcement for aluminium and steel formwork systems
• Formwork manufacturers and large construction contractors

Jinbolida Formwork Equipment

• 30-Stand Formwork Waler Roll Forming Machine (this machine): Produces steel walers for formwork reinforcement
• Flat Tie Slot Punching Press: Stamps flat tie slots into formwork frame profiles

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China

Frequently Asked Questions

• What is a formwork waler? A steel member fixed across the back of formwork panels to stiffen them and keep them in line while concrete is poured.
• Why roll form walers? Roll forming produces consistent, high-strength walers continuously, at lower cost per metre than fabricated alternatives.
• How many forming passes does the machine have? 30.
• What material does it use? High-strength steel strip.
• What should I send for a quotation? Waler profile drawing, steel grade and thickness, required lengths, any punching needs, and required output.
