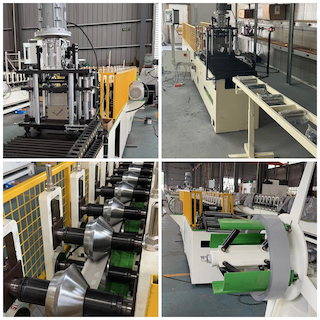

3x3" Angle Flashing Roll Forming Machine USA

The 3x3” Angle Flashing Roll Forming Machine is a precision-engineered solution designed to meet the demands of roofing and construction professionals across the United States. Built to deliver consistent performance and exceptional durability, this machine is ideal for producing high-quality 3x3” angle flashings used in a variety of commercial, residential, and industrial applications.

Equipped with advanced electric shear technology and powered by a 240V three-phase 60 Hz electric system, this roll forming machine ensures precise cuts and smooth operation at a remarkable speed of 80 feet per minute. The machine’s robust construction, featuring 10 forming stands, guarantees accuracy and longevity, making it a reliable investment for manufacturers and contractors alike.

Whether you are setting up a new production line or enhancing an existing one, the 3x3” Angle Flashing Roll Forming Machine is tailored to provide efficiency, precision, and ease of use, supporting large-scale production requirements with minimal downtime.

Key Specifications

• Weight: 2500 lbs
• Machine Dimensions: 18 ft (L) x 3 ft (W) x 5 ft (H)
• Power Supply: Electric, 240V three-phase, 60 Hz
• Operating Speed: 80 ft per minute
• Forming Stands: 10 stands
• Cutting System: Electric shear

Machine Features and Benefits

1. High-Speed Production

• Operates at a speed of 80 ft per minute, allowing for fast and efficient production without compromising on quality.

2. Precision Cutting with Electric Shear

• The integrated electric shear provides accurate cuts with smooth edges, reducing material waste and eliminating the need for secondary finishing.

3. Robust and Compact Design

• Despite its heavy-duty capabilities, the machine’s compact size (18ft x 3ft x 5ft) enables it to fit into most manufacturing setups without requiring excessive floor space.

4. Reliable Power System

• Equipped with a 240V three-phase 60 Hz power system, the machine offers consistent and reliable performance for large-scale manufacturing needs.

5. Advanced Roll Forming Technology

• Features 10 forming stands designed to produce uniform 3x3” angle flashings with high dimensional accuracy.

Applications

The 3x3” Angle Flashing Roll Forming Machine is ideal for producing components for:

• Commercial roofing systems
• Residential building projects
• Industrial warehouses
• Agricultural buildings
• Metal framing and trim installations

Optional Accessories

• Automatic Uncoiler: Enhances production efficiency by feeding coils smoothly into the machine.
• Remote PLC System: Allows for remote monitoring and control of the production process.
• Hydraulic Decoiler: Facilitates handling of heavier coils for uninterrupted production.

Installation and Setup

• Site Preparation: Requires a flat and stable surface with adequate power supply (240V three-phase, 60 Hz).
• Installation Time: Typically completed within 2-3 days, including testing and calibration.
• Training: On-site training available to ensure operators are proficient with machine controls and maintenance.

Maintenance Requirements

• Regular Lubrication: Ensures smooth operation of rollers and cutting mechanisms.
• Periodic Inspection: Recommended every 6 months to check for wear on rollers and stands.
• Electrical System Check: Annual inspections to ensure optimal power efficiency and performance.

Common Questions and Answers

Q1: What materials can the 3x3” Angle Flashing Roll Forming Machine process?

A: This machine can efficiently process various types of metals including galvanized steel, aluminum, and stainless steel, with thicknesses ranging from 0.4mm to 1.2mm.

Q2: How long does it take to install and set up the machine?

A: Installation typically takes 2-3 days, which includes calibration and operator training.

Q3: What is the maximum coil weight the machine can handle?

A: The machine can handle coils weighing up to 5000 lbs when paired with an automatic uncoiler.

Q4: Is the power requirement flexible for different facilities?

A: The machine is designed for 240V three-phase 60 Hz power supply, which is standard in the USA. For different power configurations, a transformer or converter might be required.

Q5: What kind of maintenance is needed for the electric shear system?

A: The electric shear requires regular lubrication and inspection every 6 months to ensure sharpness and precision.

Q6: Can this machine be integrated into existing production lines?

A: Yes, the machine's compact design and remote PLC compatibility make it easy to integrate into existing production setups.

Conclusion

The 3x3” Angle Flashing Roll Forming Machine is a powerful and reliable solution for manufacturers seeking efficiency, precision, and longevity in their production lines. Its advanced features and robust build ensure high-quality output, making it a valuable asset for roofing and construction businesses across the United States.
