Jinbolida Automatic Loading Hydraulic Decoiler – Safe, Crane-Free Coil Loading for 5-Tonne Coils

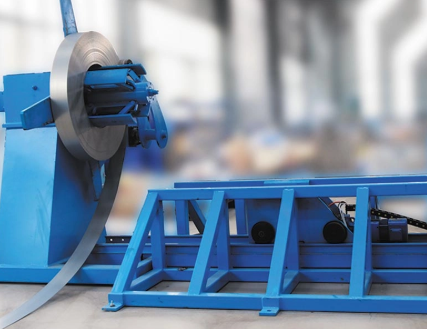

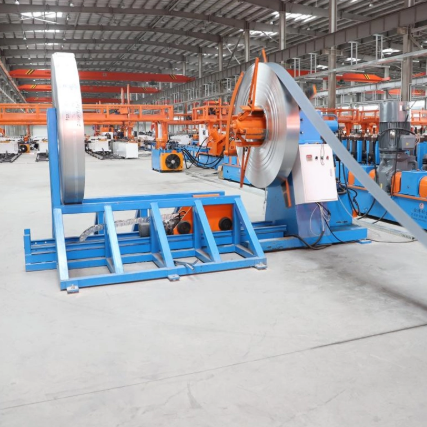

The Jinbolida Automatic Loading Hydraulic Decoiler replaces slow, risky crane-hook loading with an automated system that loads coils directly onto a hydraulic expanding mandrel. A variable-frequency coil transfer car brings the coil from a storage area, servo-driven lifting raises it into line with the mandrel, and the hydraulic mandrel expands to grip it. Operators control the whole process by remote from a safe distance. Because coils are placed rather than dropped on by crane, the decoiler avoids the impact loads that damage conventional machines, giving it a longer service life. It handles 5-tonne coils of carbon steel, stainless steel, galvanised and Zn-Al-Mg coated strip.

How It Works

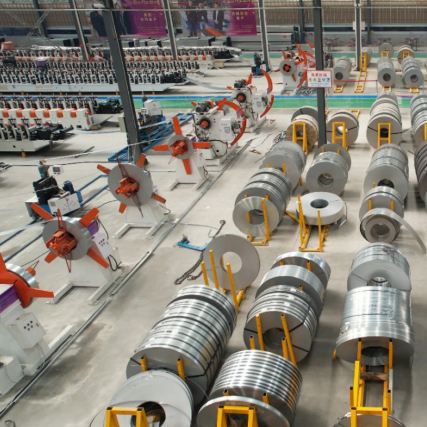

• Coils wait in the coil storage area
• The variable-frequency transfer car carries a coil to the decoiler
• Servo-driven lifting aligns the coil with the mandrel
• The hydraulic mandrel expands to grip the coil
• The strip is paid off into the production line
• The whole sequence is operated by remote control from a safe zone

Key Features

• Automated coil loading, with no crane-hook loading needed
• Hydraulic expanding mandrel
• Variable-frequency coil transfer car
• Servo-driven lifting and support system
• Integrated coil storage area
• Remote control operation from a safe distance
• No impact loads during loading, for longer machine life
• Easy to learn and operate, with low operator skill requirements
• Simple maintenance, with limit protection on the lifting motor

Technical Specifications

• Coil capacity: 5 t
• Coil inner diameter: 508 mm
• Maximum coil outer diameter: 1,500 mm
• Mandrel expansion range: 480–520 mm
• Materials: Carbon steel, stainless steel, galvanised strip, Zn-Al-Mg (ZAM) coated strip
• Control: Remote control
• Customisation: Larger capacities, sizes and special materials available on request

Main Components

• Hydraulic expanding decoiler main unit
• Variable-frequency coil transfer car
• Servo-driven lifting and support system
• Coil storage area
• Remote control system

Decoiler Types from Jinbolida

• Manual decoiler: Basic, manually expanded mandrel
• Hydraulic expanding decoiler: Hydraulic mandrel, loaded by crane
• Automatic loading hydraulic decoiler (this machine): Hydraulic mandrel with automated coil car loading

Applications

• Roll forming lines for purlins, channels and solar brackets
• Cold rolling and continuous strip processing lines
• Stamping, slitting and cut-to-length lines
• Lines running Zn-Al-Mg coated steel for solar mounting structures

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China
• Support: Troubleshooting guidance provided for hydraulic, lifting and remote control systems

Frequently Asked Questions

• Why use automatic loading instead of a crane? It's faster and safer, keeps operators out of the danger zone, and avoids impact loads that shorten decoiler life.
• What coil sizes can it handle? Up to 5 tonnes, 508 mm inner diameter and 1,500 mm maximum outer diameter.
• What materials can it run? Carbon steel, stainless steel, galvanised and Zn-Al-Mg coated strip.
• Can it be customised? Yes. Larger coils, other sizes and special materials can be accommodated with a custom design.
• What should I send for a quotation? Coil weight, inner and outer diameters, strip width and thickness, material, line speed and available floor space.
