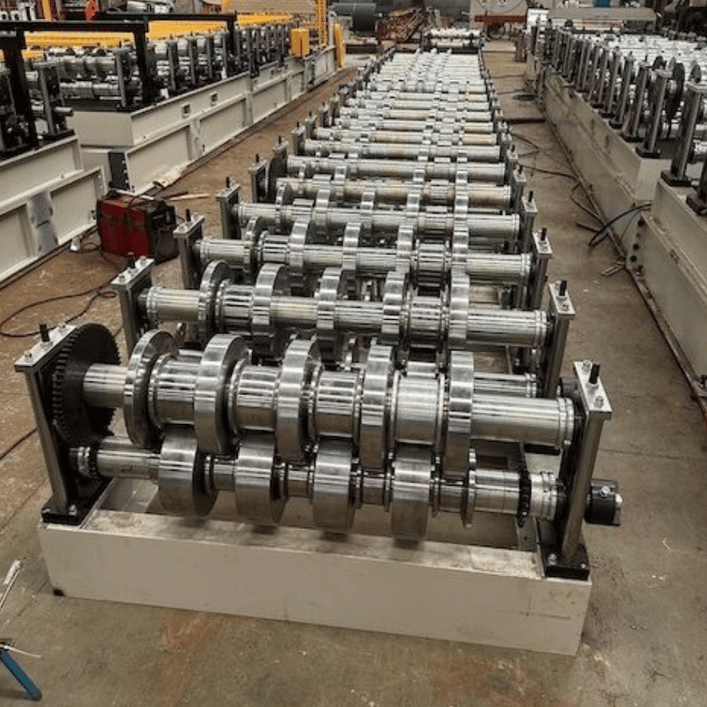

6.0" Deep Cellular Roof Deck Roll Forming Machine Alaska

The 6.0” Deep Cellular Roof Deck Roll Forming Machine is a robust, high-capacity equipment designed to meet the specific demands of roofing and decking applications in Alaska. This machine is built to deliver precision and efficiency, making it ideal for large-scale projects in challenging environments. It supports a variety of profiles, including 1.5-inch B deck, 3-inch N deck, composite metal deck, and steel form deck, with the flexibility to create custom profiles as per client requirements.

Its advanced features include a fixed base or cassette system, providing versatility for different production needs. An optional auto stacker enhances automation, reducing labor costs and improving productivity. The machine also includes a 15,000 lb hydraulic uncoiler, ensuring seamless material handling during operations.

Key Features

• Profile Variety: Offers standard profiles such as 1.5-inch B deck, 3-inch N deck, composite metal deck, and steel form deck. Custom profiles can also be accommodated.
• Material Handling: Comes with a 15,000 lb hydraulic uncoiler with a hydraulic car for efficient decoiling operations.
• Safety Features: Optional safety covers, E-stops, and advanced controls ensure safe operation.
• Automation Options: Includes options like auto stackers for improved productivity.

Specifications

Roll Forming Machine

• Forming Speed: 60 feet per minute and above.
• Material Thickness: 18 gauge to 22 gauge.
• Machine Weight: 20 tons.
• Machine Footprint: 85 feet in length.
• Main Power: 480V, 3-phase, 60Hz.
• Motor Power: 32 HP.
• Drive System: Gearbox and chain drive.
• Forming Stations: 28 stations.
• Cutting Type: Pre-flying shear.
• Safety Features: Optional safety covers, emergency stops (E-stops).

Uncoiler

• Max Loading Capacity: 15,000 lb.
• Decoiling Speed: 60 feet per minute.
• Coil Width: 48 inches.
• Machine Weight: 3.5 tons.
• Machine Footprint: 14 ft x 6 ft x 6 ft.
• Car Size: 35 inches x 28 inches.
• Controls: Jog controls, proximity sensors, and air brakes.

Why Choose This Machine for Alaska?

The 6.0” Deep Cellular Roof Deck Roll Forming Machine is particularly suited for Alaska's demanding climate and large-scale industrial projects. Its ability to handle a wide range of material thicknesses and profiles ensures that it meets the needs of contractors working on both residential and commercial roofing projects. The robust design and powerful motor ensure reliable performance in harsh conditions.

Question and Answer Section

Q1: What profiles can this machine produce?

A: The machine can produce standard profiles such as 1.5-inch B deck, 3-inch N deck, composite metal deck, and steel form deck. It also supports custom profiles upon request.

Q2: Is the machine suitable for Alaska’s cold climate?

A: Yes, the machine is built to operate efficiently in extreme conditions, making it ideal for use in Alaska’s challenging environment.

Q3: Can the machine be customized for specific project needs?

A: Absolutely, the machine offers customization options, including tailored profiles, fixed base or cassette systems, and automation features like auto stackers.

Q4: What safety features does the machine have?

A: It includes optional safety covers, emergency stops (E-stops), and advanced control systems for safe operation.

Q5: How fast is the forming process?

A: The forming speed exceeds 60 feet per minute, ensuring high productivity.

Q6: What is the uncoiler’s capacity?

A: The hydraulic uncoiler can handle coils up to 15,000 lb and decoils at a speed of 60 feet per minute.

Q7: Is training or installation support available?

A: Yes, training and installation support can be arranged to ensure smooth operation.

Q8: How does the machine handle material loading?

A: The hydraulic uncoiler with a car ensures easy and efficient loading and handling of materials.

This machine is the perfect solution for meeting the rigorous demands of Alaska's roofing and decking projects, combining speed, flexibility, and durability in one package.
