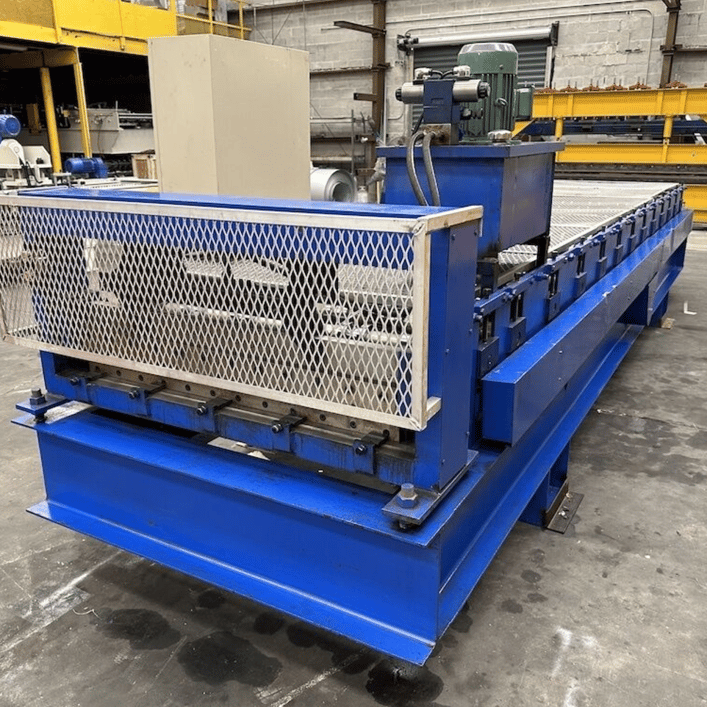

AG Classic Rib Cold Roll Forming Machine Florida

The AG Classic Rib Cold Roll Forming Machine is a specialized piece of equipment designed to produce high-quality AG panel profiles with ribbed patterns, commonly used in agricultural, residential, and commercial roofing and siding applications. This machine is engineered for durability, precision, and efficiency, offering optimal performance for Florida’s construction and roofing industries, where lightweight yet sturdy materials are essential due to weather considerations like hurricanes and humidity.

The AG Classic Rib profile is known for its versatility, strength, and aesthetic appeal, making it a preferred choice in Florida’s dynamic market. The machine can process various materials, including galvanized steel, aluminum, and coated metals, to suit diverse project requirements.

Specifications

• Roller Materials: High-grade chromium steel with heat treatment for durability and precision.
• Frame Size: 300 mm thick frame for stability and reduced vibration.
• Motor: 15-20 HP main motor, energy-efficient and powerful.
• Speed: 20-30 meters per minute, depending on the material and profile complexity.
• Hydraulic Cutting System:
  • Hydraulic-powered guillotine cutting for precision.
  • Blades made of Cr12 steel, quenched and tempered for a longer life cycle.
• PLC System: Advanced PLC control with a user-friendly touchscreen interface.
• Punching & Notching: Optional inline hydraulic punching and notching systems for custom applications.
• Material Gauge: Supports material thickness from 0.3 mm to 0.8 mm.
• Material Width: Up to 1200 mm.
• Safety Features: Enclosed safety guards, emergency stop buttons, and overload protection.
• Coil Capacity: Uncoiler with a capacity of 5-10 tons.
• Optional Extras:
  • Automatic stackers for panel handling.
  • Remote PLC systems for monitoring and diagnostics.
  • Leveling systems for improved material feed.

Advantages in Florida

1. Weather Resistance: Produces panels that withstand Florida’s humid and hurricane-prone climate.
2. Versatility: Suitable for agricultural buildings, residential homes, and industrial facilities.
3. Efficiency: High-speed production reduces operational costs for large-scale projects.
4. Material Flexibility: Processes various materials to meet Florida’s unique market demands.

Question and Answer

Q1. What materials can the AG Classic Rib Roll Forming Machine process?

A1. The machine can handle galvanized steel, aluminum, pre-painted steel, and coated metals with thicknesses ranging from 0.3 mm to 0.8 mm.

Q2. Is this machine suitable for Florida’s weather conditions?

A2. Yes, the panels produced are durable, corrosion-resistant, and designed to withstand high humidity and hurricane-level winds, making them ideal for Florida’s climate.

Q3. What is the production speed of the machine?

A3. The AG Classic Rib Roll Forming Machine operates at a speed of 20-30 meters per minute, ensuring high efficiency for large projects.

Q4. Does the machine include a warranty?

A4. Most suppliers offer a 1-2 year warranty for major components like the PLC system, motor, and hydraulic systems. Always confirm with the manufacturer.

Q5. Can the machine be customized for specific profiles?

A5. Yes, it can be customized to produce AG panels with specific rib patterns, material gauges, and punching or notching requirements.

Q6. How is the machine maintained?

A6. Regular maintenance includes lubrication of rollers, inspection of the hydraulic system, and cleaning of the PLC interface. Ensure periodic checks for wear and tear on the blades and rollers.

Q7. Can this machine be used for mobile operations?

A7. With the addition of a portable frame and generator, the machine can be adapted for mobile panel production, which is beneficial for on-site operations in Florida’s construction projects.

Q8. What are the shipping options to Florida?

A8. The machine can be shipped via sea freight to Florida’s major ports. Some suppliers may also offer domestic transportation within the state.
