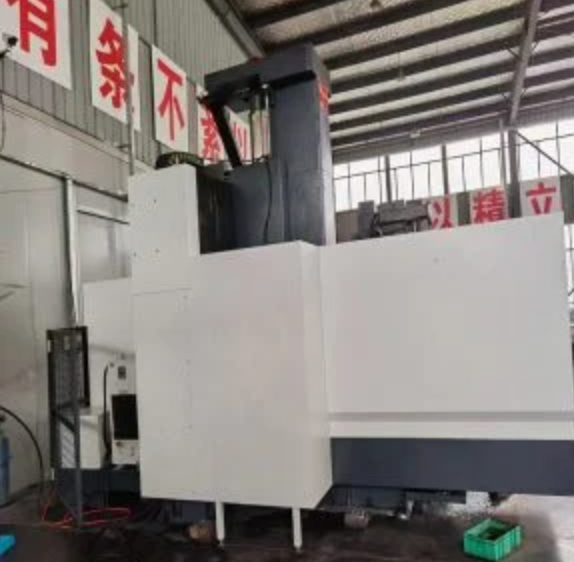

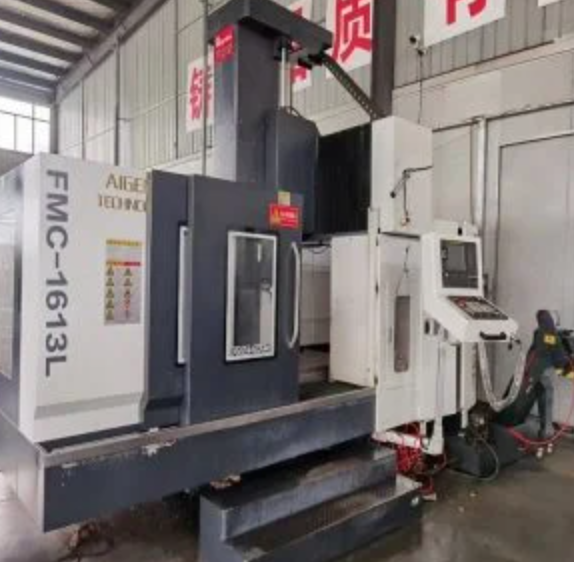

AIGEMA FMC-1613L CNC Gantry Machining Center

AIGEMA FMC-1613L CNC Gantry Machining Center

High-Performance Precision for Large Part Manufacturing

The AIGEMA FMC-1613L CNC Gantry Machining Center is an industrial-grade solution engineered for precision, power, and productivity. Built to meet the high demands of industries such as aerospace, automotive, shipbuilding, and energy, this gantry-style CNC machining center is ideal for manufacturers who work with oversized components and require tight tolerances and stable performance over long production cycles.

From its heavy-duty construction to its advanced automation compatibility, the FMC-1613L stands out as a versatile, high-capacity machining center that delivers reliable performance in high-volume and high-complexity environments.

Key Features and Advantages

Heavy-Duty Gantry Construction

At the heart of the AIGEMA FMC-1613L is its gantry-style frame, built for exceptional rigidity and structural integrity. The design ensures minimal vibration and maximum stability, especially when working with large, heavy, or high-density materials such as steel, titanium, or aluminum alloys.

This structural robustness directly translates to enhanced machining precision, longer tool life, and consistent surface finishes—crucial for industries where performance is measured in microns.

Large Working Envelope

One of the most compelling features of the FMC-1613L is its expansive working area, capable of handling extra-large components without compromising on access or maneuverability. The wide table and high Z-axis clearance make it ideal for:

• Structural aerospace parts
• Automotive chassis components
• Marine structures and shipbuilding elements
• Heavy machinery components
• Mold and die manufacturing

This machine is purpose-built for tasks where smaller machining centers simply aren’t an option.

Spindle System: Power and Precision

High-Torque, High-Speed Spindle

Equipped with a high-performance spindle, the FMC-1613L can handle a variety of operations from roughing to fine finishing. Whether you’re cutting hardened steel, aluminum, or exotic alloys, the spindle delivers the torque and RPM range necessary for both flexibility and accuracy.

Cooling and Thermal Stability

To maintain consistent performance even during extended runs, the spindle features a sophisticated cooling system that minimizes heat buildup. This ensures dimensional stability and protects the spindle bearings, extending the overall service life and reliability of the machine.

Table and Axis Design

Robust, High-Load Table

The machine’s rigid table is engineered to carry substantial weight while maintaining high positional accuracy. It resists deflection and distortion under load, allowing for optimal performance even with heavy or irregularly shaped workpieces.

Extended Travel in All Axes

With generous travel ranges in the X, Y, and Z axes, the FMC-1613L can easily machine parts with complex geometries and large surface areas. The dual-driven gantry system ensures smooth, synchronized movement, enabling both high feed rates and tight tolerances.

CNC Control System

The AIGEMA FMC-1613L is equipped with a state-of-the-art CNC control interface that supports advanced machining strategies such as:

• Multi-axis simultaneous contouring
• Complex 3D tool paths
• Adaptive feed and speed optimization
• Real-time monitoring of spindle load, temperature, and axis feedback

The control unit offers intuitive navigation, reducing the learning curve for operators while enabling advanced users to fully leverage the machine’s capabilities.

Tool Management

High-Capacity Automatic Tool Changer (ATC)

The FMC-1613L features an automatic tool changer with a large magazine, enabling uninterrupted machining for complex parts that require multiple tools. This minimizes downtime and improves throughput, especially in multi-operation jobs.

Strategic Tool Magazine Placement

The tool magazine is positioned for efficient tool exchange and minimal movement delay, optimizing both speed and reliability in automated cycles.

Automation and Integration

The FMC-1613L is designed with future-ready automation compatibility. Its gantry layout is particularly suitable for integration with:

• Robotic arms for part loading and unloading
• Automated guided vehicles (AGVs)
• Conveyor systems
• Smart factory setups

With these integrations, manufacturers can build lights-out manufacturing cells that run with minimal human intervention, improving productivity and lowering labor costs.

Safety and Maintenance

Comprehensive Safety Features

The AIGEMA FMC-1613L includes multiple safety components to ensure a secure working environment:

• Full machine enclosures to contain chips and coolant
• Emergency stop buttons located at strategic points
• Safety interlocks to prevent accidental access during operation

Ease of Maintenance

Designed with the operator in mind, the machine includes easily accessible service zones, lubrication points, and a built-in diagnostic system for rapid fault detection. This helps reduce downtime and improves long-term reliability.

Shipping Options and Delivery Time

The AIGEMA FMC-1613L is currently located in China and can be shipped globally. Delivery times vary depending on the shipping method:

• By Air Freight: Approx. 7–10 days
• By Sea Freight: Approx. 30–45 days for most international destinations

Shipping method selection will depend on urgency, budget, and destination.

Applications by Industry

This gantry machining center is ideal for a wide range of large-scale and high-precision applications:

Question and Answer Section

Q1: What makes the gantry design superior for large part machining?

A: Gantry-style machines offer better rigidity and allow vertical and overhead movement of the spindle across large work surfaces. This design supports larger components and provides greater access without sacrificing stability.

Q2: Can this machine be used for aluminum and composite materials as well as steel?

A: Yes, the FMC-1613L is suitable for a wide variety of materials, including aluminum, titanium, stainless steel, and composites. The powerful spindle and robust table allow it to adapt to different cutting conditions with ease.

Q3: Is this machine compatible with Industry 4.0 and smart factory systems?

A: Absolutely. The control system supports network integration and real-time data communication, making it suitable for automated and digitally managed production environments.

Q4: How does the automatic tool changer improve productivity?

A: The ATC reduces downtime by quickly switching tools as needed for complex operations. It also minimizes manual tool changes, which helps lower labor costs and error risks.

Q5: What is the average lead time for delivery?

A: Delivery typically takes 7–10 days by air and 30–45 days by sea, depending on the destination.

Q6: Is installation support available?

A: Yes. Machine Matcher can assist in coordinating installation, setup, and commissioning depending on your location and requirements.

Summary

The AIGEMA FMC-1613L CNC Gantry Machining Center is a premium machine built for high-volume, high-complexity, and high-precision work. With its large machining envelope, robust design, and automation-ready features, it's ideal for industries that demand excellence in the machining of oversized or heavy-duty parts.

Whether you're in aerospace, automotive, shipbuilding, or heavy industry, the FMC-1613L delivers the power, precision, and performance you need to stay competitive in a demanding market.
