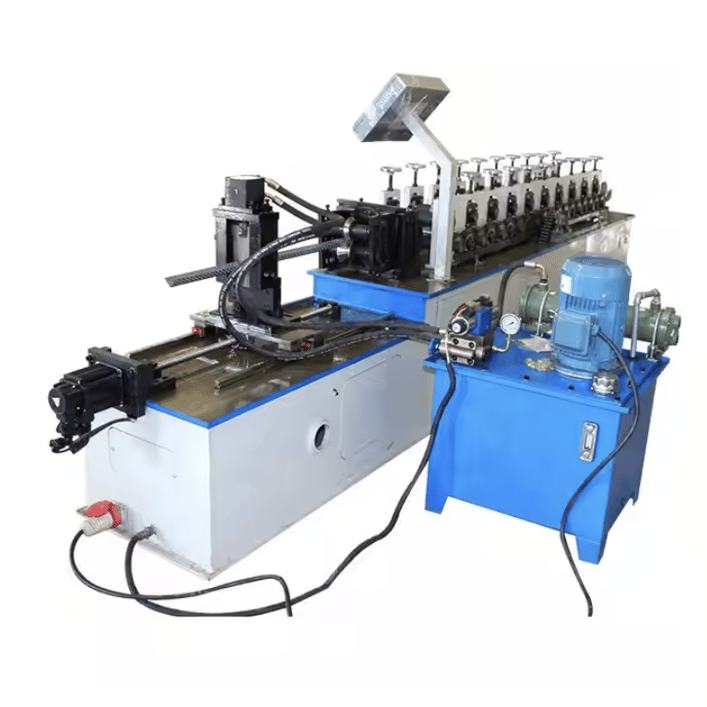

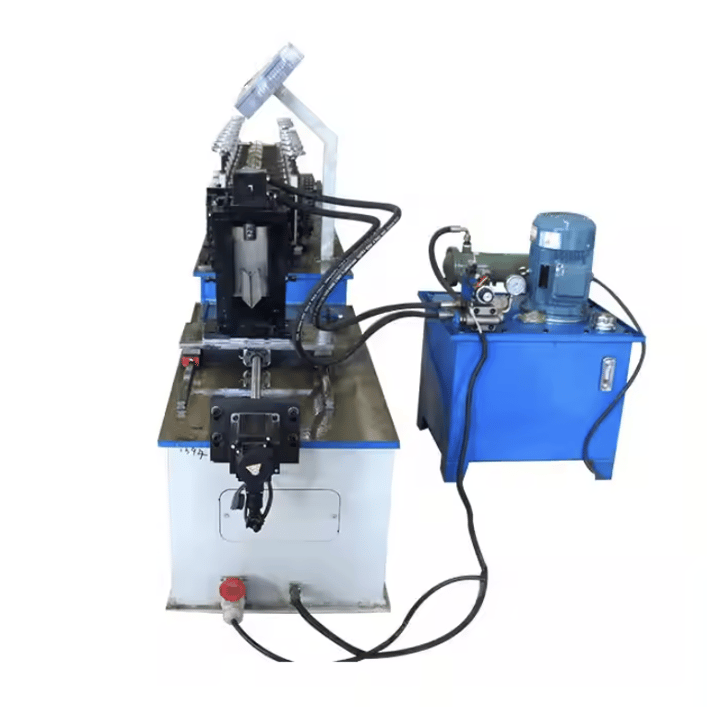

Angle Roll Forming Machine in the USA
| 1 | Suitable material | galvanized steel coil |
| 2 | Thickness of coil sheet | 0.3-0.5mm |
| 3 | Coil width | as customer's profile drawing requirement |
| 4 | Effective width | as customer's profile drawing requirement |
| 5 | Material of main frame | welded by square pipe |
| 6 | Diameter of Soild shaft | 40mm, high grade 45# steel |
| 7 | Roller | Cr12 |
| 8 | Thickness of middle plate | Memorial archway |
| 9 | Forming station | 8+1 rows |
| 10 | Drive type | Gear |
| 11 | Power of main motor | 4.0 kw, Lichao, Shanghai, with reducer |
| 12 | Servo motor | 2.2KW Touch-win |
| 13 | Forming speed | About 25-30m/min |
| 14 | Hydraulic pump station | 4.0 kw, 46# hydraulic oil |
| 15 | PLC | Touch-win |
| 16 | Material of cutting blades | Cr 12 Mov, quenching 58-62°C |
| 17 | Frequency converter | It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| 18 | Switch | CHNT |
Request a quote
We’ll respond within one business day
Enquiring about Angle Roll Forming Machine in the USA
Prefer to talk?
Call us on +44 20 3355 6554 (UK) or +1 407 887 3237 (US) to speak directly with our sales engineers.
- Condition
- New
- Supplier
- Roll Forming Machines United States
- Country
- United States
- Categories
- Structural & Framing Custom Roll Forming
- Listing ID
- 12669
