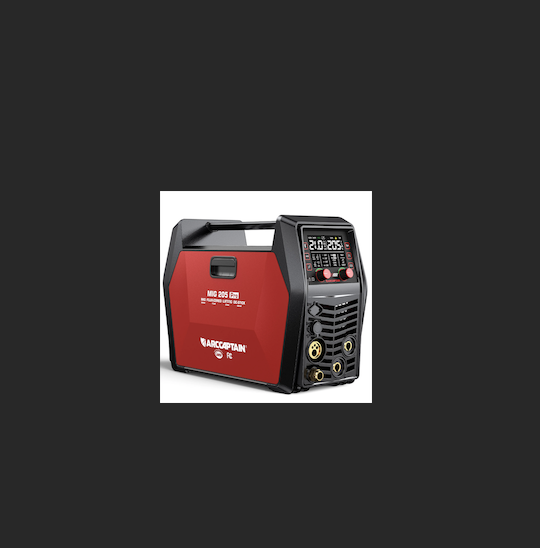

ARCCAPTAIN MIG205 Pro Multi Process Welder

View more details here ARCCAPTAIN MIG205 Pro Multi Process MIG Welder

New $799.00 Location USA

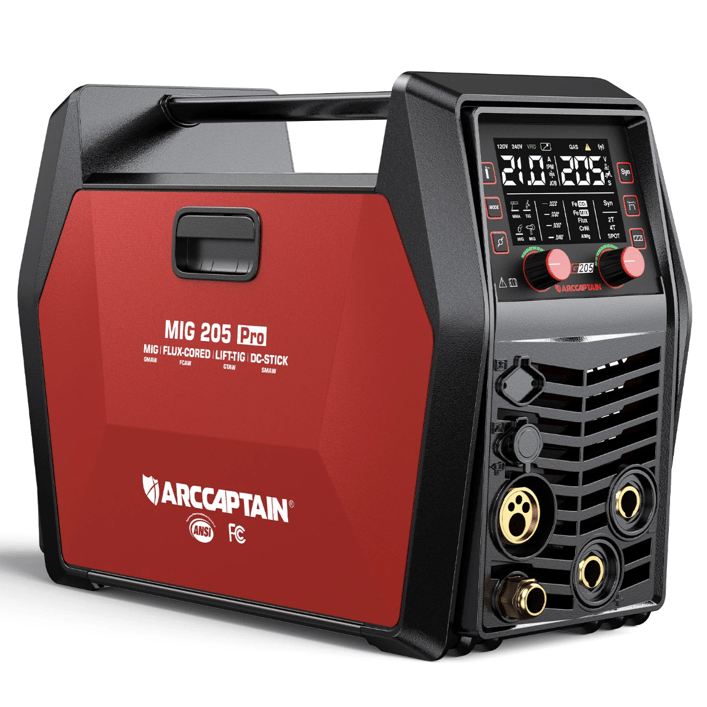

The ARCCAPTAIN MIG205 Pro is your ultimate welding solution, offering unmatched versatility with 6 welding modes (MIG, FLUX, TIG, MMA, SPOT, SPOOL GUN), supporting both gas and gasless welding for a wide range of metals like carbon steel, stainless steel, iron, and aluminum-magnesium. With smart SYN Unification technology, the machine intelligently matches material thickness, wire feed speed, and current for effortless MIG welding in just three steps. The large LED screen ensures easy operation, while the upgraded wire feeder and advanced cooling system deliver stable performance and long-lasting durability. Additional features like 2T/4T modes, gas check, burn back adjustment, and customizable parameter storage make the MIG205 Pro the perfect choice for both beginners and professionals.

TECHNICAL PARAMETERS

Technical Parameter	Units	Model
		MIG205
Rated input voltage	V	AC120V±15% 50/60HZ	AC240V±15% 50/60HZ
Rated input power	KVA	5.9	8
Rated input current	A	51.3	35.8
Welding current range (MMA)	A	20--140	20--205
Welding current range (TIG)	A	20--140	20--205
Welding voltage range (MIG)	A	30--140	30--205
	V	11--23	11--28
Wire feed speed range	m/min	4.9-39	4.9--52
Rated duty cycle	%	60	60
Open circuit voltage	V	U0: 64 Ur :11
Overall efficiency	%	85
Enclosure class	IP	21S
Power factor	COSφ	0.72
Insulation class		H
Standard		ANSI/NEMA/IEC 60974-1
Noise	db	＜70
Dimension	inch	17.3x7.9x12.7
Weight	lb	20.5lb
Applicable electrode/wire	inch	1/16”-1/8” 0.023”/0.030”/0.035”	1/16”-5/32”” 0.023”/0.030”/0.035”/0.040

Request a quote

We’ll respond within one business day

Enquiring about ARCCAPTAIN MIG205 Pro Multi Process Welder

Prefer to talk?

Call us on +44 20 3355 6554 (UK) or +1 407 887 3237 (US) to speak directly with our sales engineers.

Condition: New
Supplier: Metal Fabrication Machinery
Country: United States
Category: MIG / MAG Welders
Listing ID: 16311
