Automatic Coil Loading & Uncoiling System 5 t | Jinbolida, Shandong, China

Jinbolida Automatic Steel Feeding Machine – Coil Car and Hydraulic Uncoiler for 30-Second Coil Loading

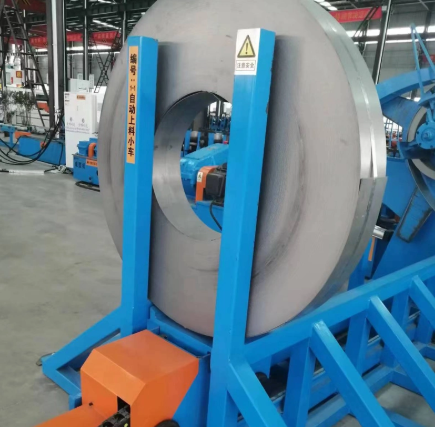

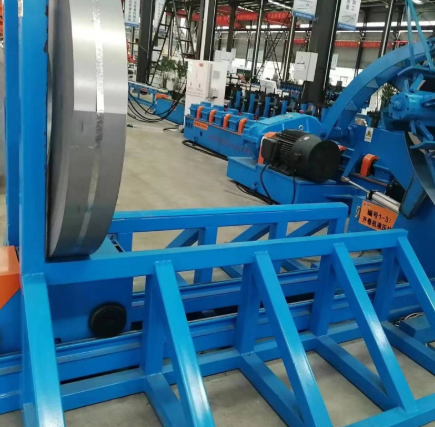

The Jinbolida Automatic Steel Feeding Machine is a complete coil loading and uncoiling system for strip steel production lines. A servo-driven coil car with hydraulic lifting carries the coil to a hydraulic active uncoiler, where a pneumatic clamping arm secures it, and the whole loading sequence takes around 30 seconds. The uncoiler handles coils up to 5 tonnes and 400 mm wide, with inner diameters of 508–610 mm. The system scans each coil on arrival, warns when material is running low, and can connect to ERP and MES systems for material tracking. Electrical components are from Siemens, Schneider and Omron, making it a dependable front end for roll forming, stamping, slitting and welding lines.

How It Works

• The coil is scanned and identified on arrival
• The servo-driven coil car carries the coil to the uncoiler
• Hydraulic lifting aligns the coil with the uncoiler mandrel
• The pneumatic clamping arm secures the coil
• The hydraulic active uncoiler pays off the strip into the line
• A low-material warning alerts operators before the coil runs out

Key Features

• Fully automatic coil loading and uncoiling
• Coil loading time of around 30 seconds
• Servo-driven coil car with hydraulic lifting, rated to 10 tonnes
• Hydraulic active uncoiler for coils up to 5 tonnes
• Pneumatic clamping arm to hold the coil securely
• Energy-saving hydraulic power unit
• Coil scanning on arrival and low-material warning
• ERP and MES integration for material tracking
• Siemens, Schneider and Omron electrical components
• 40Cr alloy steel shafts and HRB/LYC bearings (to be confirmed)
• Coil car frame welded from Q345 square tube and steel plate
• Safety signage and chain guards

Equipment Included

• Automatic coil loading car
• Hydraulic active uncoiler
• Energy-saving hydraulic power unit
• Hydraulic lift
• Pneumatic clamping arm

Technical Specifications

• Coil loading time: Approx. 30 s
• Coil car capacity: Up to 10 t
• Coil car drive: Servo motor with hydraulic lifting
• Uncoiler capacity: 5 t
• Maximum coil width: 400 mm
• Coil inner diameter: 508–610 mm
• Coil outer diameter: 1,300–2,000 mm
• Feeding unit power: 9 kW (4-pole motor)
• Uncoiler power: 3 kW (4-pole motor)
• Electrical components: Siemens, Schneider, Omron
• Coil car structure: Q345 square tube and steel plate, welded

Applications

• Roll forming lines for purlins, channels and solar brackets
• Continuous stamping lines
• Slitting lines
• Tube and welded product lines
• Automotive parts and appliance casing production from narrow strip

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China

Frequently Asked Questions

• How long does it take to load a coil? Around 30 seconds.
• What coil sizes can it handle? Up to 5 tonnes on the uncoiler, 400 mm wide, with inner diameters of 508–610 mm and outer diameters up to 2,000 mm.
• Can it connect to our factory systems? Yes. It scans coils and supports integration with ERP and MES systems.
• What electrical brands are used? Siemens, Schneider and Omron.
• Does it work with a strip accumulator? Yes. It pairs naturally with Jinbolida's Vertical Strip Looper, which handles the same 400 mm maximum strip width, to keep the line running during coil changes.
• What should I send for a quotation? Coil weight, width, inner and outer diameters, strip thickness, line speed, and whether you need ERP/MES integration.
