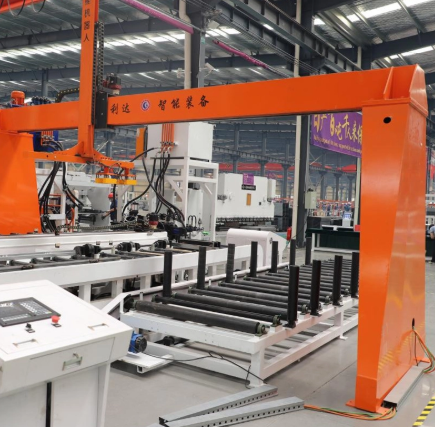

Jinbolida CNC Line Auto-Feeder with Flip Function – Automatic Loading with Correct Part Orientation

The Jinbolida CNC Line Auto-Feeder with Flip Function loads parts onto the first machine in a production line, making sure each one is the right way up. A vision system or sensors check the front, back and direction of each part, and a flipping mechanism driven by servo motors or pneumatic cylinders turns it 180° where needed, before placing it on the downstream press, laser or other machine. This prevents batches of parts being punched, cut or welded on the wrong face because of manual placement errors. It links to upstream material towers or racks, uses adjustable fixtures and stored programs to switch between parts, and is fully guarded with safety light curtains.

How It Works

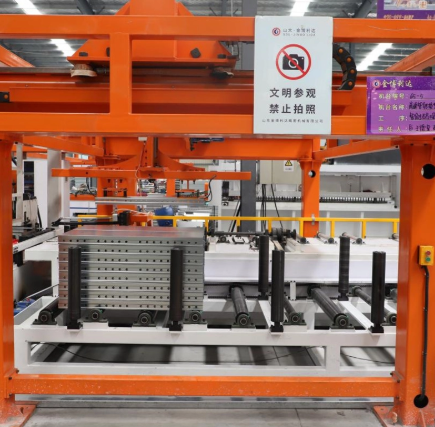

• Parts are taken from an upstream material tower or rack
• Vision or sensors identify each part's front, back and direction
• The flipping mechanism turns the part 180° where needed
• The part is placed on the downstream machine in the correct orientation

Key Features

• Automatic front/back and direction detection by vision or sensors
• 180° flipping driven by servo motors or pneumatic cylinders
• Links upstream material towers or racks with downstream presses and lasers
• Modular design with adjustable fixtures
• Program-based changeover for different part sizes, materials and weights
• Suitable for small-batch, multi-product production
• Fully enclosed or fenced design with safety light curtains
• Removes repetitive, heavy manual flipping from operators

Applications

• Flipping sheet metal before precision stamping, e.g. automotive panels, motor cores and electrical parts
• Orienting sheet metal before laser cutting or welding
• Orienting small precision parts (frames, heat sinks, connectors) before machining, inspection or assembly
• Battery module end plates and housings in new energy production
• Any line where parts must enter a process on a specific face

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China
• Configuration: Built to suit the customer's parts and line

Frequently Asked Questions

• What does the flip function do? It detects which face of each part is up and turns it 180° if needed, so every part enters the next process the right way up.
• How are parts identified? By a vision system or sensors.
• What drives the flip? Servo motors or pneumatic cylinders, depending on configuration.
• Is it safe for operators? Yes. It's fully enclosed or fenced and fitted with safety light curtains.
• What should I send for a quotation? Part drawings or samples, weights and sizes, how parts are supplied, the target machine and its cycle time, and which face must be up.
