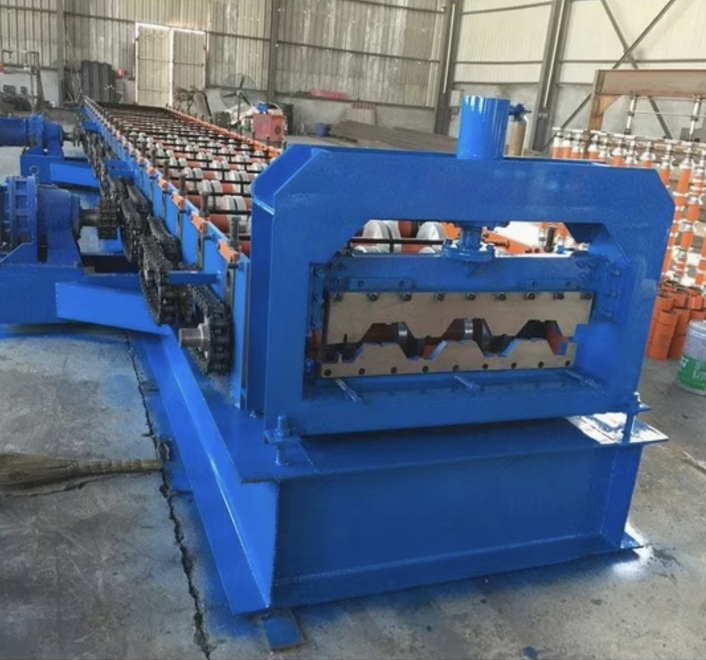

B Deck Metal Roofing Roll Forming Machine in the USA

The B Deck Metal Roofing Roll Forming Machine is a highly efficient and versatile machine designed to produce high-strength structural B deck panels commonly used in roofing and flooring systems. These panels are essential for commercial and industrial applications, offering superior durability and load-bearing capacity. This roll forming machine is engineered to meet the specific needs of the construction industry in the USA, ensuring compliance with local standards and quality expectations.

Full Machine Description

The B Deck Metal Roofing Roll Forming Machine is an advanced equipment system designed to create precise B deck profiles. These profiles are widely used for structural roofing and flooring due to their ability to support heavy loads and span long distances.

This machine is equipped with cutting-edge technology, including automatic feeding, hydraulic cutting, and PLC control systems, to deliver consistent, high-quality products. It also features a robust frame and precision rollers for long-lasting performance and low maintenance.

Machine Specifications

• Roller Materials: High-grade chrome-plated steel rollers for durability and precision.
• Frame Size: Heavy-duty steel frame to ensure stability and vibration resistance.
• Motor Power: 7.5 kW main motor with an additional 4 kW hydraulic cutting motor.
• PLC Control System: User-friendly PLC system with touch-screen interface for easy operation and customization.
• Machine Speed: Up to 20–30 meters per minute, depending on the material and profile.
• Hydraulic Cutting System: Advanced hydraulic cutter with carbide blades for precise and clean cuts.
• Material Thickness: Capable of processing steel coils with a thickness range of 0.6mm–1.5mm.
• Profile Width: Standard B deck profile dimensions, customizable to meet specific project requirements.
• Power Supply: 220V/380V, 50Hz/60Hz, as required.
• Safety Features: Full enclosure safety guards, emergency stop buttons, and overload protection.
• Optional Extras:
  • Automatic stackers for finished panels.
  • Uncoilers with various load capacities.
  • Coil car tippers for easy loading.
  • Remote PLC systems for remote diagnostics and control.

Profile Description

• Material: Galvanized steel, aluminum-zinc coated steel, or pre-painted steel.
• Sizes: Standard B deck sizes with rib heights and widths tailored to structural specifications.
• Material Gauge: 20 to 14 gauge, depending on the application.
• Applications: Roofing systems, mezzanine floors, and other structural building projects.
• Market Size: Widely used across the USA in commercial and industrial construction projects.

Setup and Installation

The machine is delivered as a plug-and-play system. Installation requires:

1. Foundation Preparation: Ensure a level surface capable of supporting the machine's weight.
2. Power Connection: Compatible with the USA's standard power supply.
3. Coil Loading: Use the coil car tipper or crane to load the steel coil into the uncoiler.
4. System Calibration: Set up the PLC system for the desired profile dimensions.
5. Test Runs: Perform trial runs to ensure accuracy and adjust settings as needed.

Maintenance Requirements

• Regular lubrication of rollers and moving parts.
• Inspection of hydraulic systems for leaks and pressure consistency.
• Cleaning the PLC system and sensors to avoid errors.
• Checking and sharpening the cutting blades periodically.

Question and Answer Section

Q1: What are the common applications of B deck panels?

A: B deck panels are widely used in commercial and industrial roofing systems, mezzanine floors, and structural building projects where durability and load-bearing capacity are critical.

Q2: Can the machine be customized to produce non-standard profiles?

A: Yes, the machine can be customized to produce specific profile dimensions based on project requirements.

Q3: What material thickness can this machine handle?

A: The B Deck Metal Roofing Roll Forming Machine is capable of processing materials ranging from 0.6mm to 1.5mm in thickness.

Q4: How long does it take to set up the machine?

A: The initial setup, including foundation preparation and system calibration, typically takes 1–2 days with a skilled technician.

Q5: Does the machine comply with USA standards?

A: Yes, the machine complies with all relevant USA standards for safety and manufacturing quality.

Q6: What maintenance is required to ensure long-term performance?

A: Routine maintenance includes lubricating moving parts, inspecting hydraulic systems, cleaning sensors, and sharpening cutting blades.

Q7: Is training provided with the machine?

A: Yes, comprehensive training is provided to ensure operators are familiar with the machine’s functionality and maintenance procedures.
